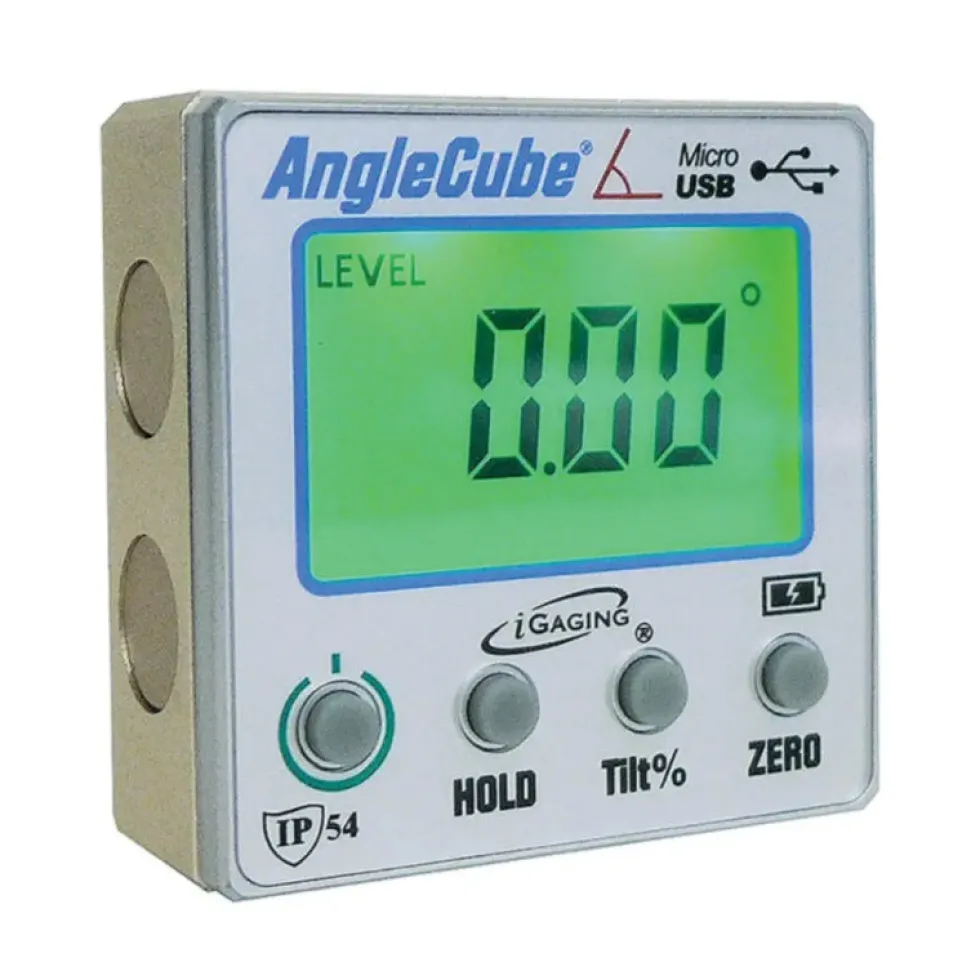

AngleCube Digital Angle Gauge Backlit

AngleCube Digital Angle Gauge Backlit – 3rd Generation

The AngleCube will help you adjust & set the tilt angle of any saw blade, machine, table or fence in the shop to within 1/20°. An internal sensor also lets the unit measure absolute level. LCD characters are 1/2″ high and the display automatically inverts when the unit is turned upside down. The display is backlit so it’s easy to read – even in areas with less than ideal lighting.

Magnets located on three sides of the unit give maximum placement flexibility. Hold function locks in reading. Case measures 2.13″ square x 0.91″ thick. Built-in battery charges with the included micro USB cable.

Features

• iP54 protective rating: Moisture and dust resistance
• Backlit display for easy viewing
• Ultra-Response measure speed
• Magnetics on bottom and 2 sides
• Precision digital level sensor
• Anodized finish
• Alloy aluminum body
• Micro USB data output port (Cable for charging or data output option included)
• Supplied in protective pouch
• Built-in rechargeable battery

Specifications

• Tilt range: 0-90°
• Resolution: 0.05°
• Accuracy: ±0.2°
• Repeatability: 0.1°
• Dimensions: 2.13″ x 2.13″ x 0.91″
• Weight: 2.7 oz

iP54 protective rating: Moisture and dust resistance

Standard backlit display for easy viewing (Item #’s 35-2270 & 35-2269)

Ultra-Response measure speed

Magnetics on bottom and 2 sides

Precision digital level sensor

Anodized finish

Alloy aluminum body

Micro USB data output port (Cable for charging or data output option included)

Supplied in protective pouch

Smart Wireless Data Output connects to Bluetooth deviceSpecifications: Tilt range: 0 – 90° x 4 Resolution: 0.05° Accuracy: ±0.2° Repeatability: 0.1 ° Size: 2.13″ x 2.13″ x 0.19″ Weight: 2.7 oz.35-2269AngleCube® Angle Gauge w/Backlit-->
