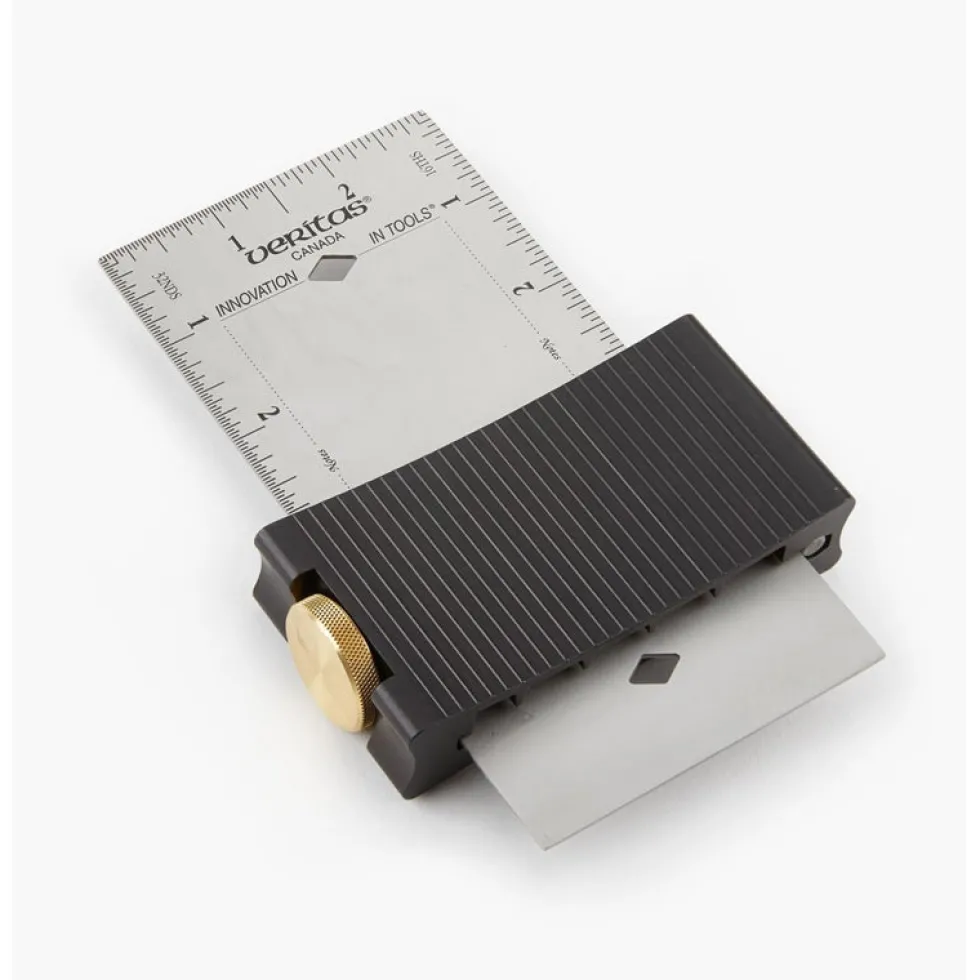

Veritas Sliding Square – Inch

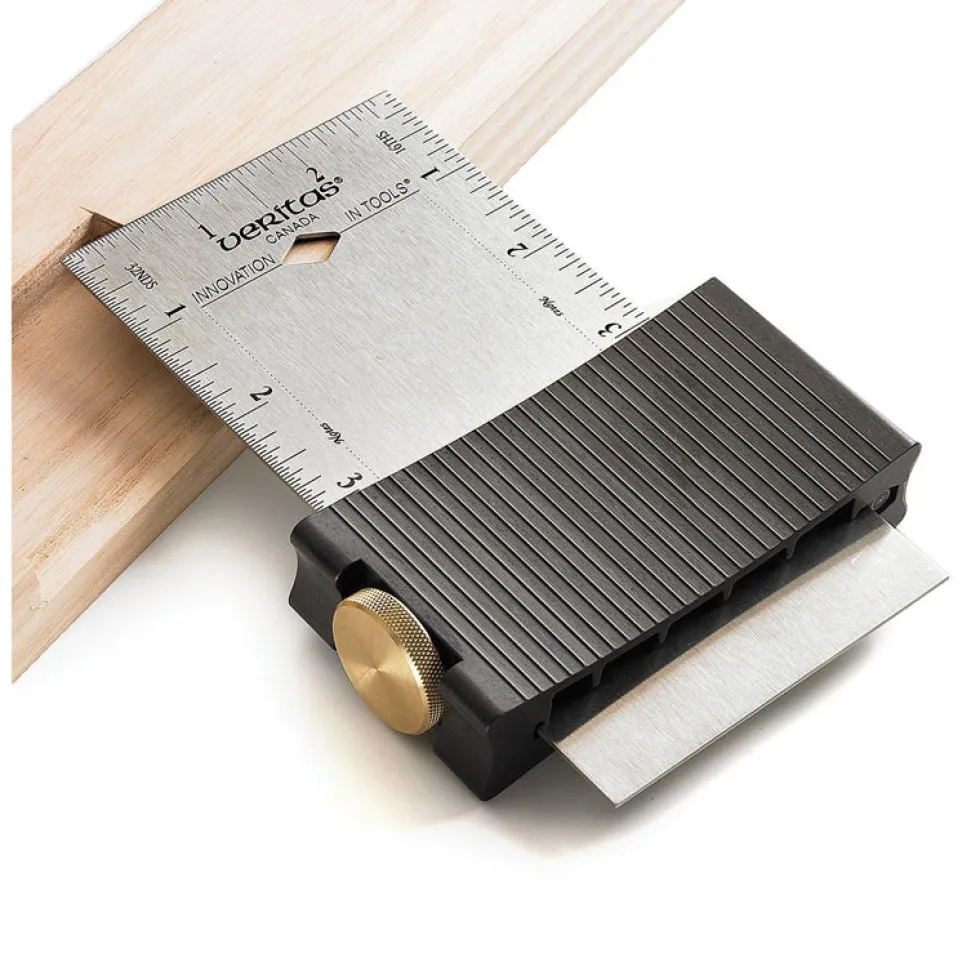

These accurate and well made cabinetmaker’s squares are used to lay out or transfer measurements quickly and accurately — you always have an ample reference face against your work without having to flip the square. This also simplifies working in two axes at once, substantially reducing the chance of error when measuring and marking two dimensions. The stainless-steel blade is 3″ wide and 6″ long, machine ground on all four edges. It is graduated to 4″ along both edges and across one end to 3″.

Each has a matte finish, which makes it easy to read by reducing glare, and also lets you mark dimensions on it with a pencil. The diamond cut-out in the blade holds a pencil tip in position for drawing lines parallel to an edge. The locking mechanism has a notched pin like those on combination squares, with the blade bearing on polished, hardened steel reference pins set in the body.
