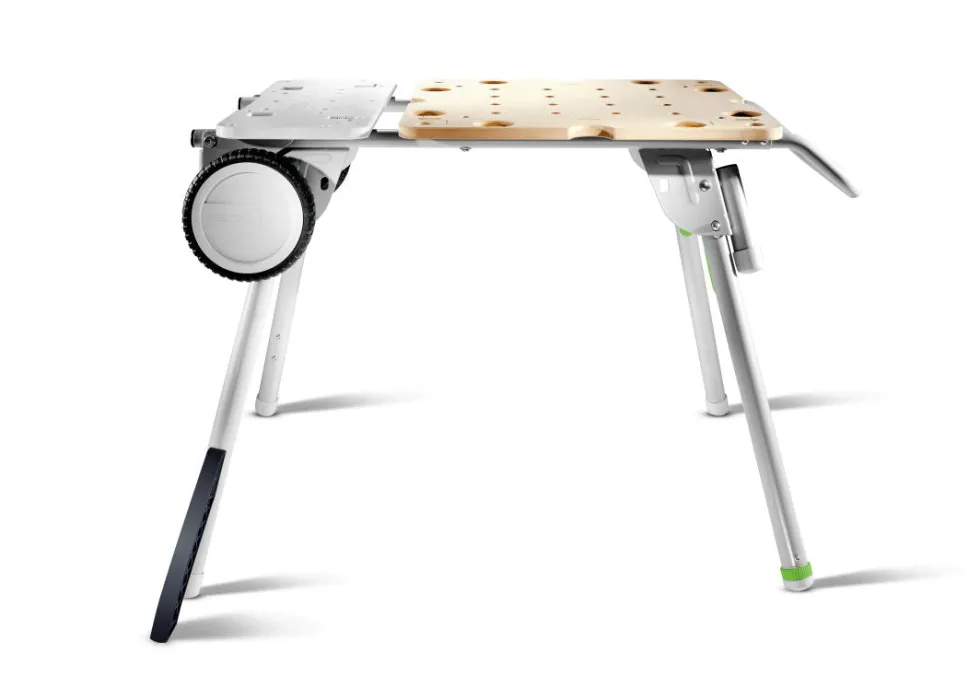

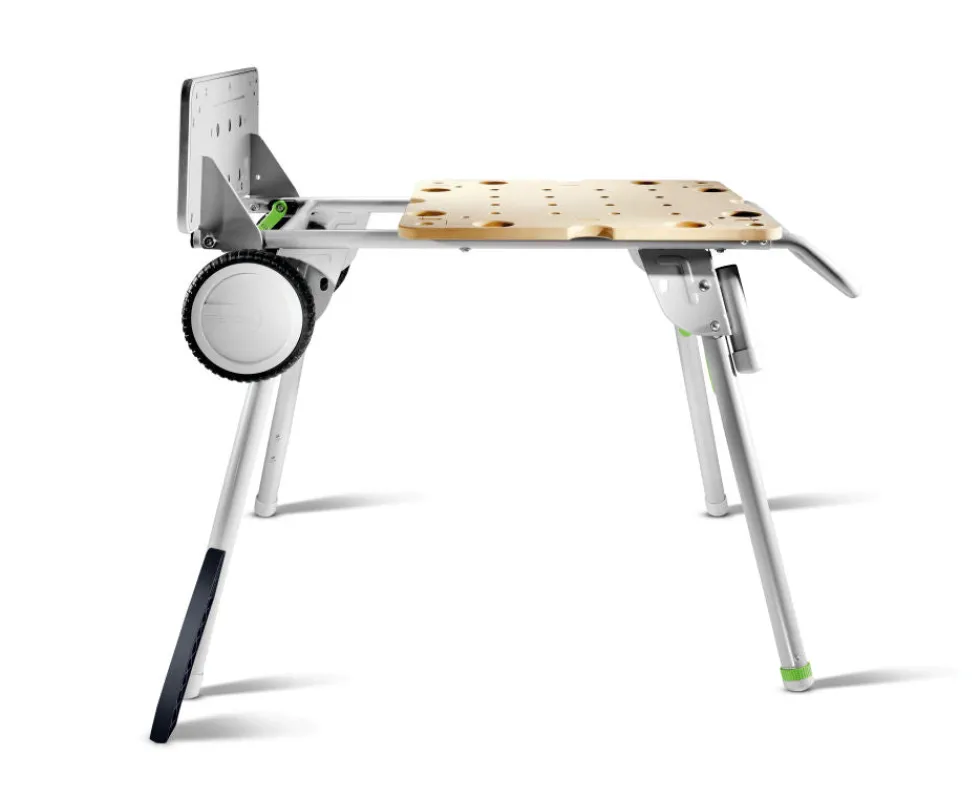

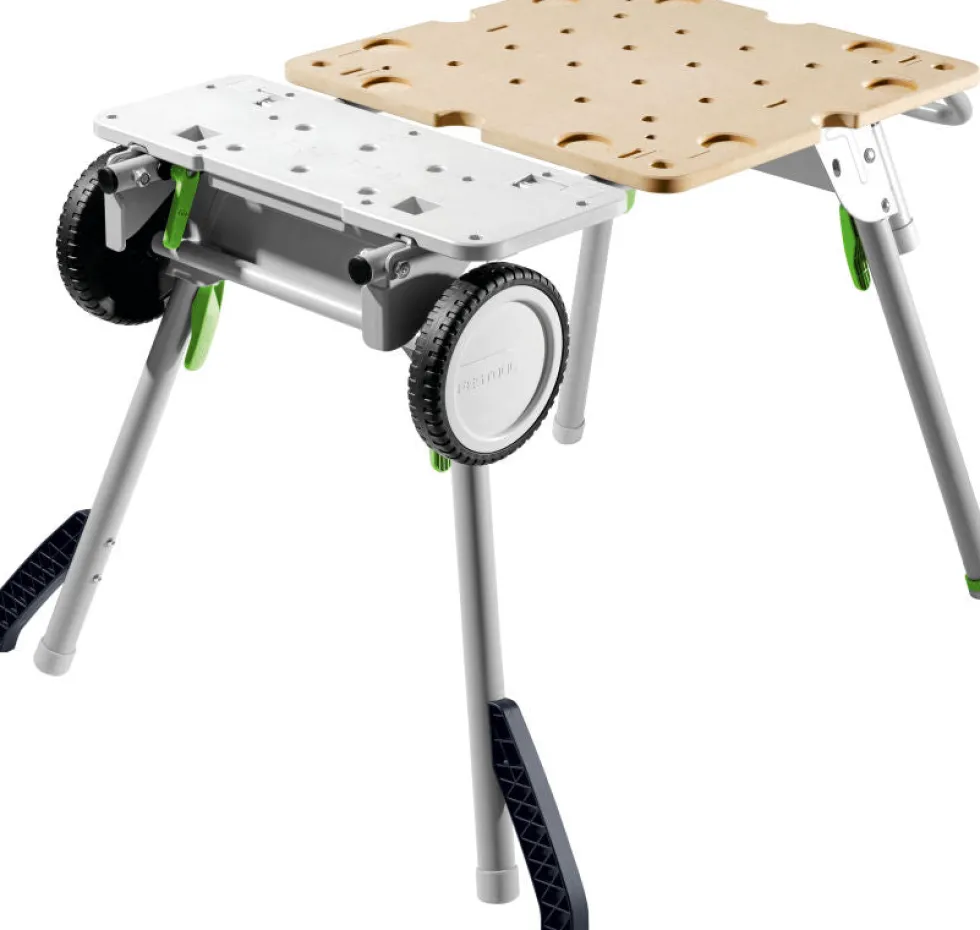

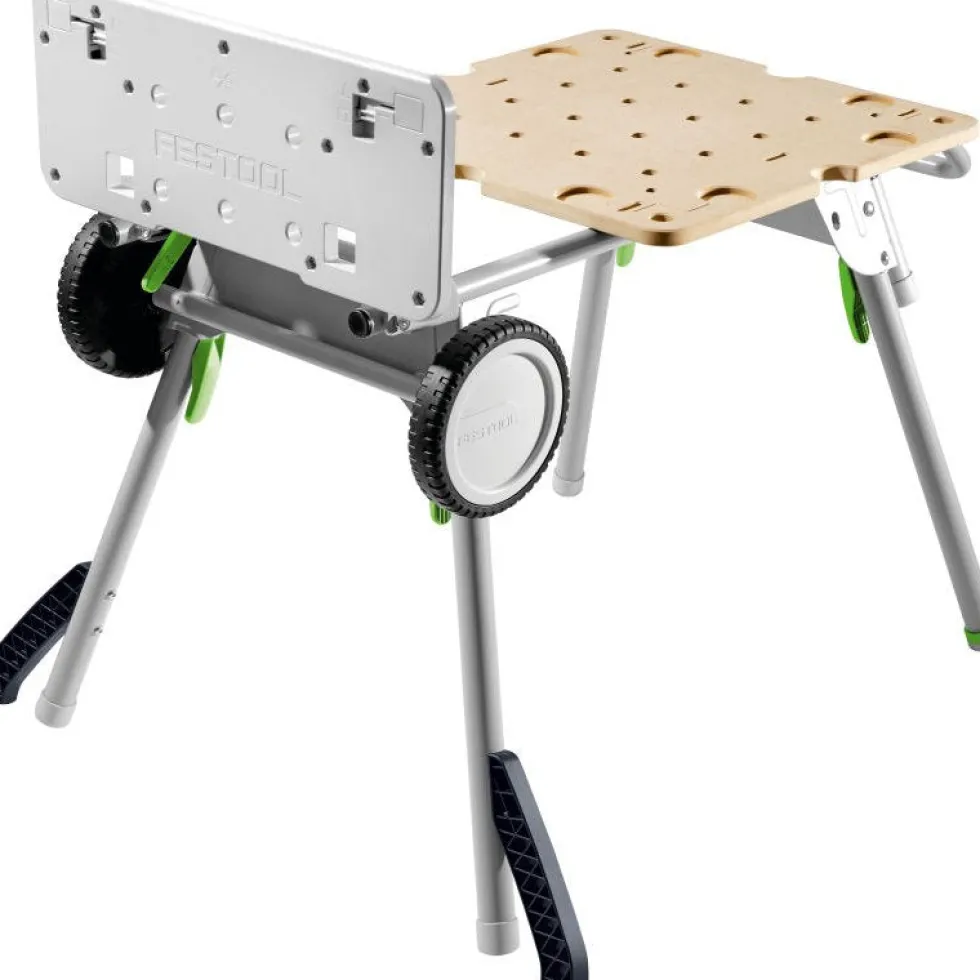

Underframe for Festool Cordless Table Saw

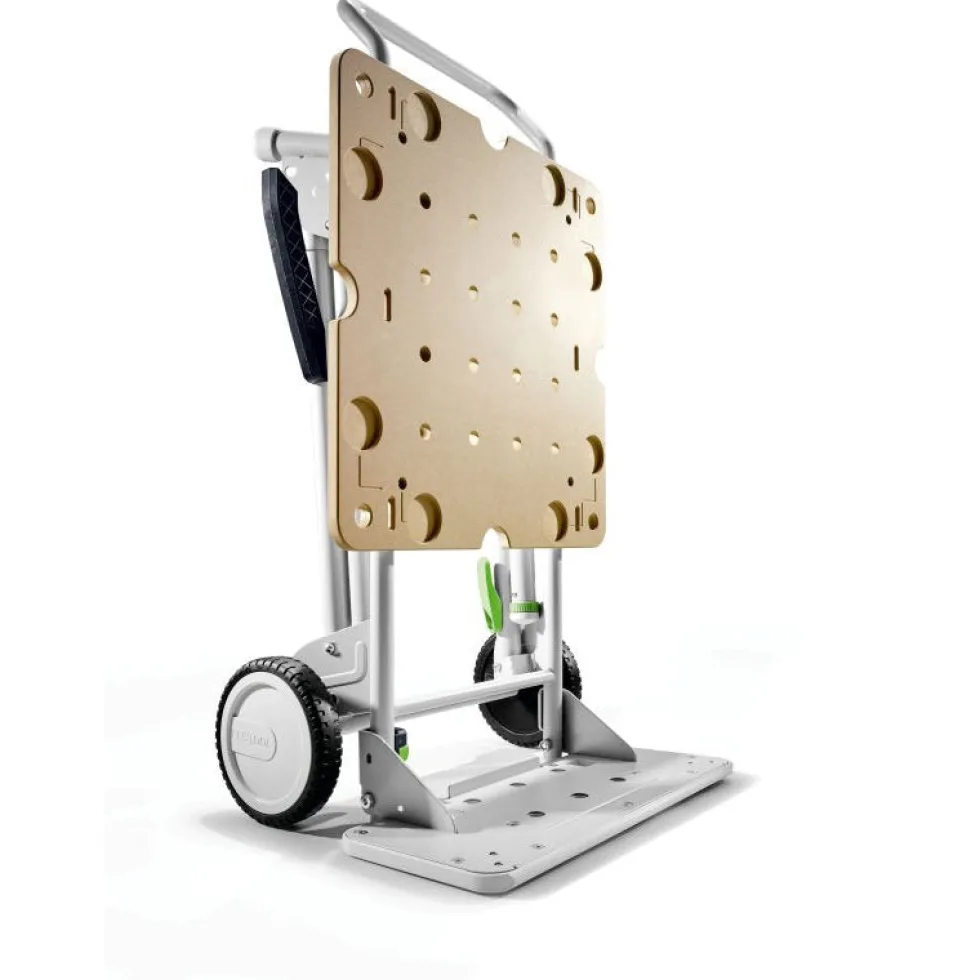

The UG-CSC-SYS underframe is primarily the stand for the the Festool CSC SYS 50 EBI Cordless Table Saw . It also serves as a worktable and handcart for transporting the CSC SYS 50 or any other Festool Systainer. It can move up to 176lbs of tools.

Specifications

• Table dimensions -580mm x 580mm (22-13/16″ x 22-13/16″)
• Dimensions – 1067mm long x 580mm wide x 245mm high (42″ x 22-13-16″ x 9-5/8″)
• Tabletop height (High working position) – 677mm (26-5/8″)
• Tabletop height (Low working position) – 245mm (9-5/8″)
• Load capacity as worktable – 100kg (220lbs)
• Load capacity as hand truck – 80kg (176lbs)
• Weight w/o accessories – 18.10kg (39.8lbs)
• Weight w/ accessories – 25.20kg (55.4lbs)
