Starrett No. 49 Combination Bevel

Starrett No. 49 Combination Bevel

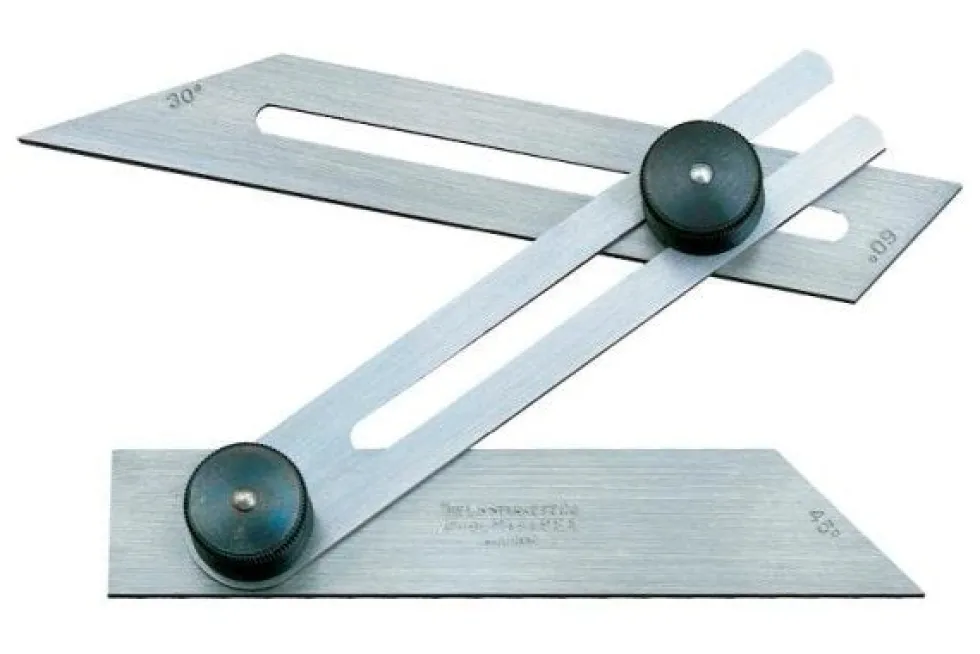

Starrett’s #49 Universal Bevel allows you to easily transfer any angle from one surface to another. It has three components: the main stock, which is square on one end and beveled at 45° on the other; the slotted blade & the auxiliary blade, which is beveled at 30° on one end and 60° on the other.

The slotted blade swings on a stud on the main stock to any angle desired. The auxiliary blade can be attached to the slotted blade at any angle. Both blades are secured with knurled nuts. The stock and blades are approximately 4″ (100mm) long. The stock and auxiliary blades are approximately 3/4″ (19mm) wide. The slotted blade is approximately 11/16″ (17.5mm) wide.
