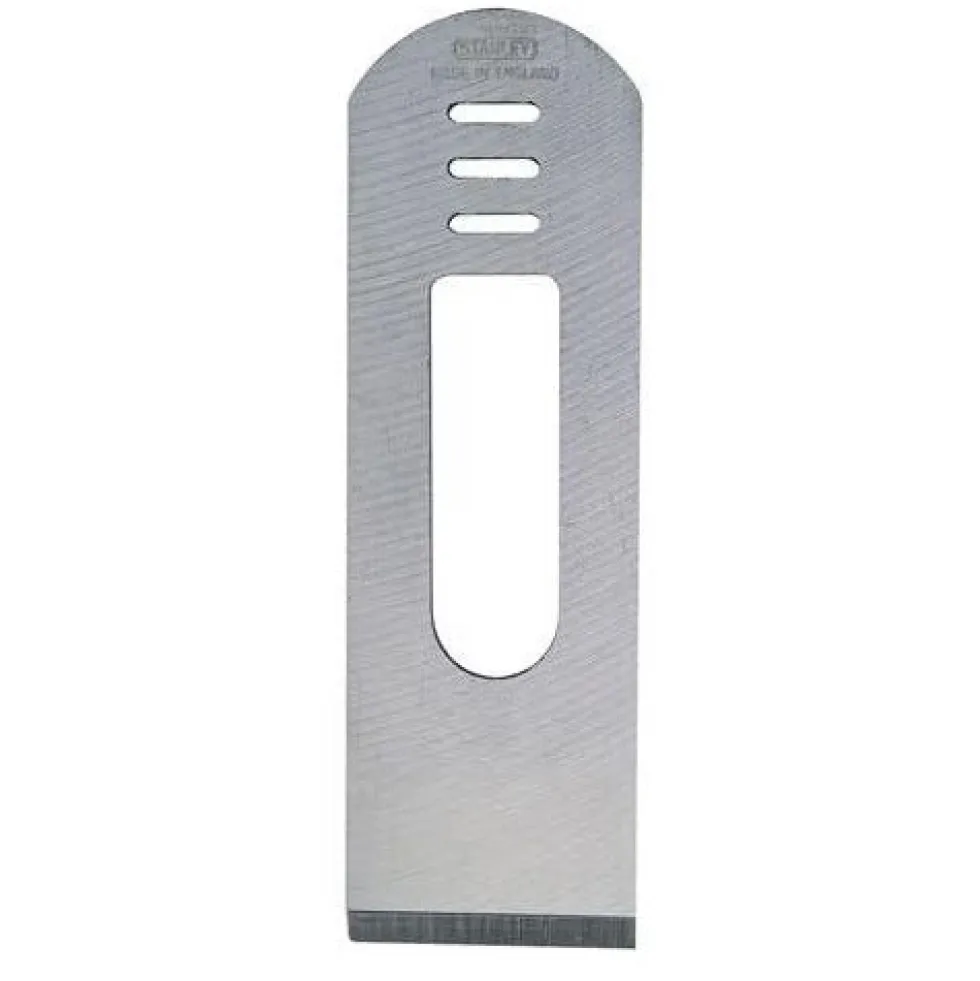

Stanley Block Plane Iron

We offer Stanley replacement irons for he models below. Please check your model AND specifications to be sure you order the correct one. If you don’t see the size you need, we have a wider selection in Hock blades .

Stanley # 12-504

Replacement iron for the Stanley Low Angle Block Plane (model 60-1/2A, not 60-1/2) manufactured after 1988. Fits Stanley models 12-960 & 12-060. The blade is hardened, tempered high-carbon chrome steel for excellent edge retention.

Specifications

• Length – 4-3/8″ (111mm)
• Blade Width – 1-3/8″ (35mm)
• Blade Thickness – 0.094″ (2.4mm)
• Bevel Angle – 25°
• Center Slot – 5/8″ wide x 1-7/8″ long
• Adjustment groves – three

Stanley # 12-508

Replacement iron for the Stanley Standard Angle Block Plane (model 9-1/2A, not 9-1/2) manufactured after 1988. Fits Stanley models 12-220G, 12-020G, 12-920 & 12-220. The blade is hardened, tempered high-carbon chrome steel for excellent edge retention.

Specifications

• Length – 4-3/8″ (111mm)
• Blade Width – 1-5/8″ (41mm)
• Blade Thickness – 0.094″ (2.4mm)
• Bevel Angle – 25°
• Center Slot – 5/8″ wide x 1-7/8″ long
• Adjustment groves – three

Stanley # 12-143

Replacement iron for the modern Stanley Sweetheart Low Angle Block Plane (model 60-1/2). Fits Stanley model 12-139. The blade is extra-thick A2 steel for excellent edge retention.

Specifications

• Length – 4-1/4″ (108mm)
• Blade Width – 1-5/8″ (41mm)
• Blade Thickness – 1/8″ (3.18mm)
• Bevel Angle – 25°
• Center Slot – 3/8″ wide x 1-1/16″ long
• Adjustment holes – two

Stanley 1-5/8 inch Iron for pre-1988 9-1/2

Replacement iron for the Stanley Standard Angle Block Plane (model 9-1/2, not 9-1/2A) manufactured before 1988.It is 1-5/8 inches wide and has a 1/2 inch wide center slot.

Fits 9-1/2 & 220, 25°4-3/8″ long (111mm)1-5/8″ wide (41mm)0.094″ thick (2.4mm)Hardened, tempered high-carbon chrome steel assures excellent edge retention431202 12-338 High CarbonStanley BP Iron -1-5/8in – 7/16in slot – pre-1988 60-1/2Fits431209 12-508 High Carbon

Replacement iron for the Stanley Standard Angle Block Plane (model 9-1/2A, not 9-1/2) manufactured after 1988.It is 1-5/8″ wide and has a 5/8″ wide center slot.

Fits 12-920, 12-22025° 4-3/8″ long (111mm)1-5/8″ wide (41mm)0.094″ thick (2.4mm)Hardened, tempered high-carbon chrome steel assures excellent edge retention171228 12-143 A2Fits Sweetheart block planes25°4-3/8″ long (111mm)1-5/8″ wide (41mm)1/8″ thick (3.18mm)-->
