Shapton Diamond Glass Lapping Plate

Any time you sharpen with a waterstone, the surface of the stone changes shape. We tend to use the center of the stone – often causing the surface to “dish”. If the surface of a sharpening stone is not flat, you can’t get a straight, sharp edge.

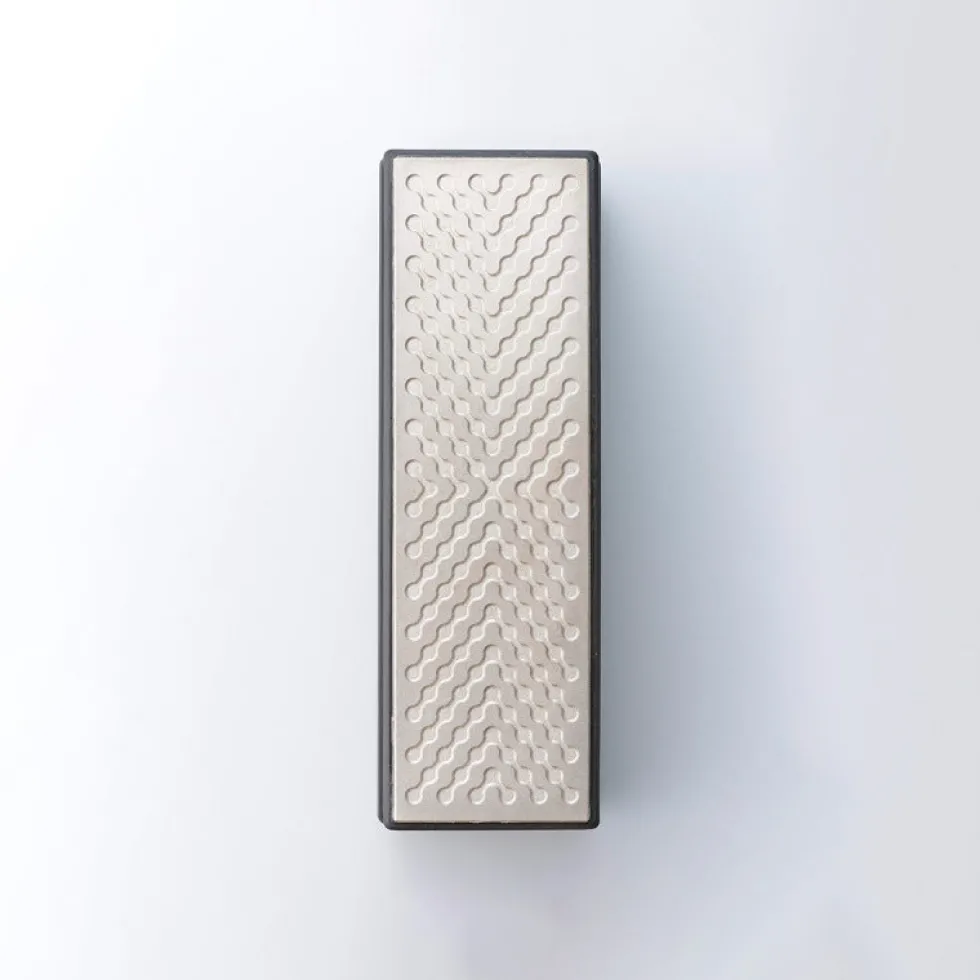

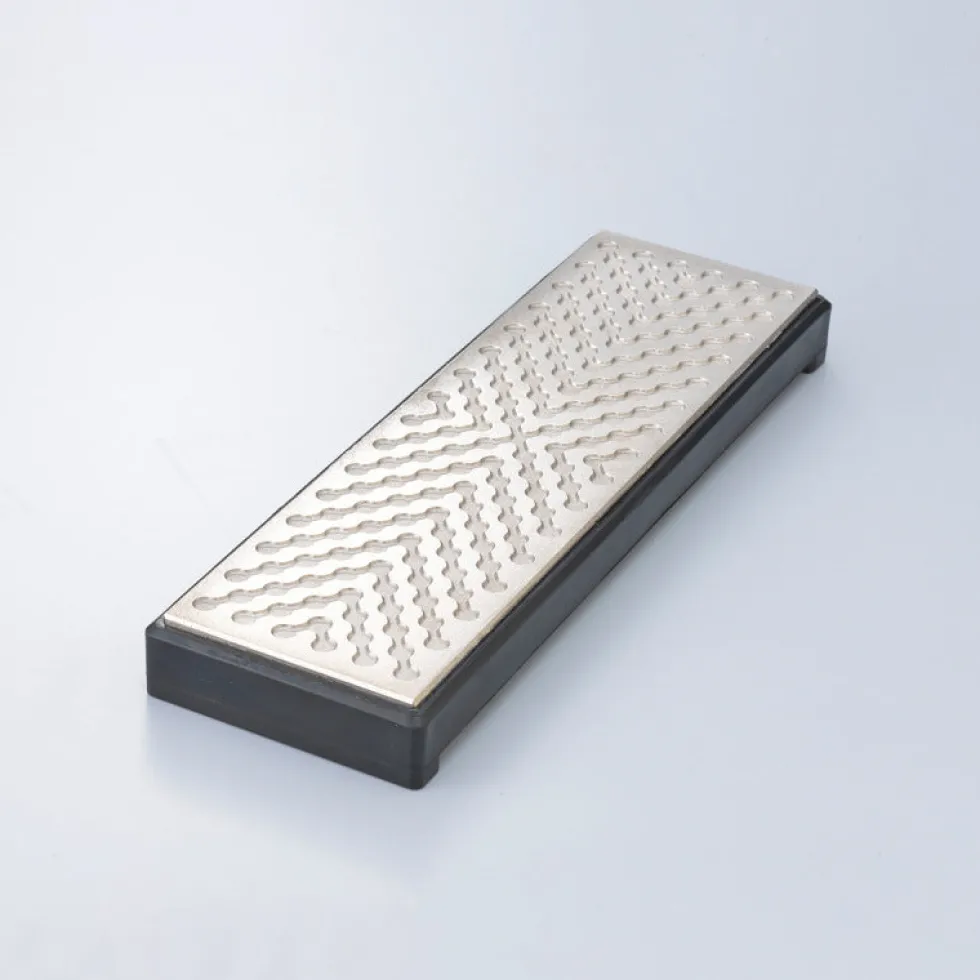

Shapton’s Diamond Glass Lapping plate (DGLP) is specifically designed to precision flatten your waterstones. It uses a diamond abrasive electro-deposited to a glass substrate that is flat to +/- 5 microns. The surface has grooves to allow the swarf to flowaway during flattening. The grooves also prevent the flattening plate and stone from hydro-locking during flattening.

The DGLP is designed for use on Shapton stones from 500 to 30,000 grit, but can be used on waterstones from other manufacturers as well.

Features

• Glass base ensures a high degree of flatness for accurate lapping
• Flattens waterstone surface
• Restores even roughness across the sharpening surface
• Eliminates swarf clogging the waterstone surface
• Flatten stones from 500 to 30000 grit

Specifications

• Dimensions – 253mmm x 80mm x 24mm (9-15/16″ x 3-1/8″ x 15/16″)
• Working Surface – 245mmm x 72mm (9-5/8″ x 2-13/16″)
• Abrasive Grit (micron) – 45-54µ
• Abrasive Grit (mesh) – 270-325 grit
• Substrate Flatness – +/- 5µ
• Made in Japan

Additional Information

Shapton Diamond Glass Lapping Plate Instructions . PDF
