SawStop Standard Series 10 inch Saw Blade

SawStop Standard Series 10 inch Saw Blade

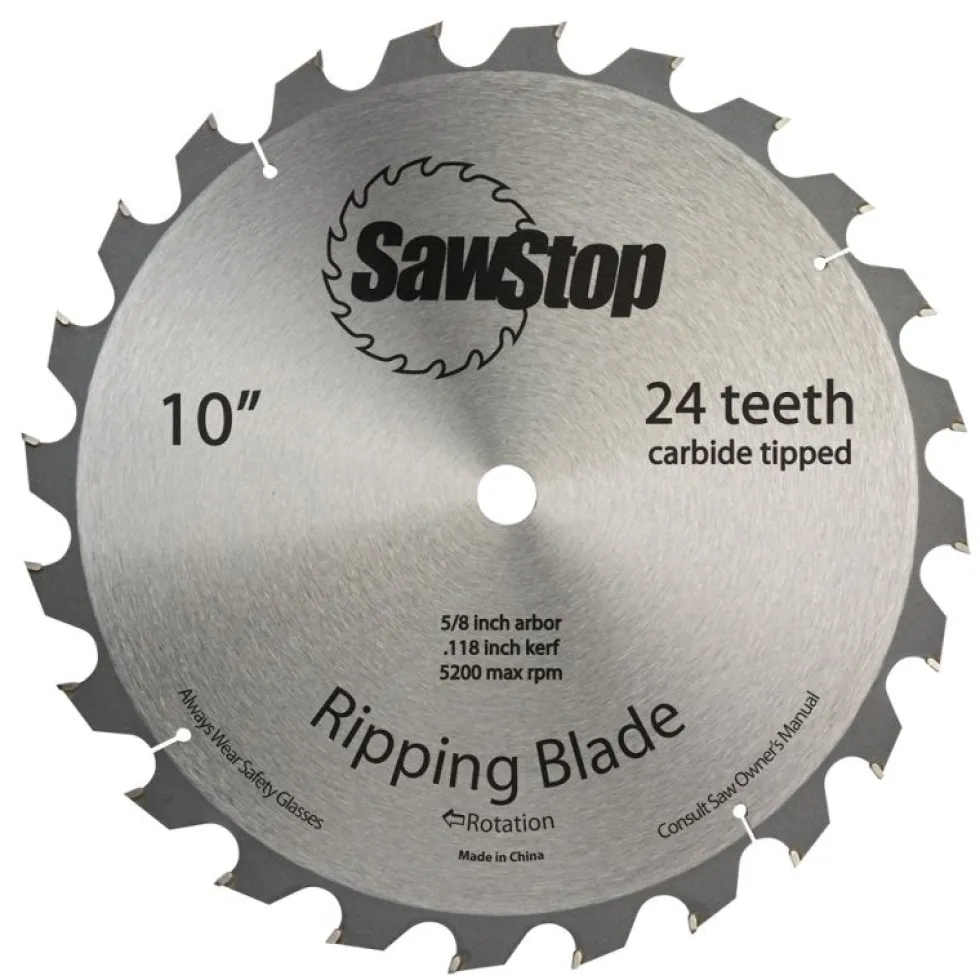

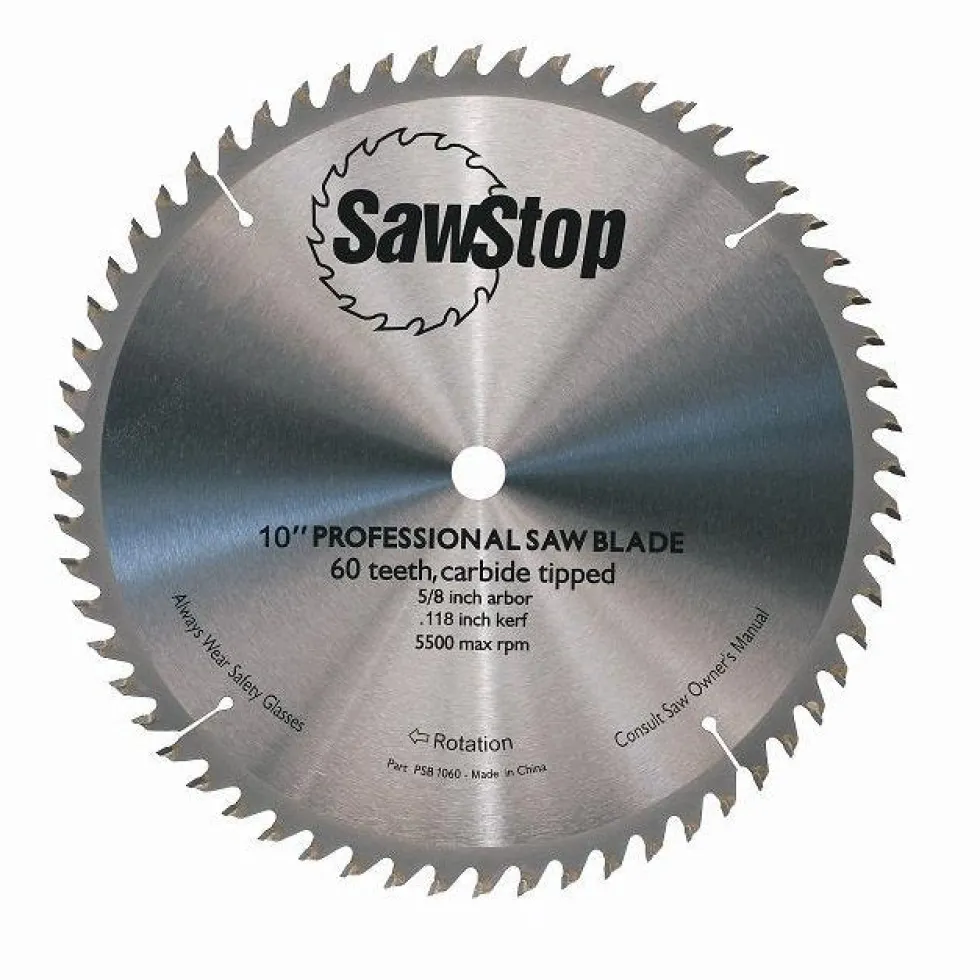

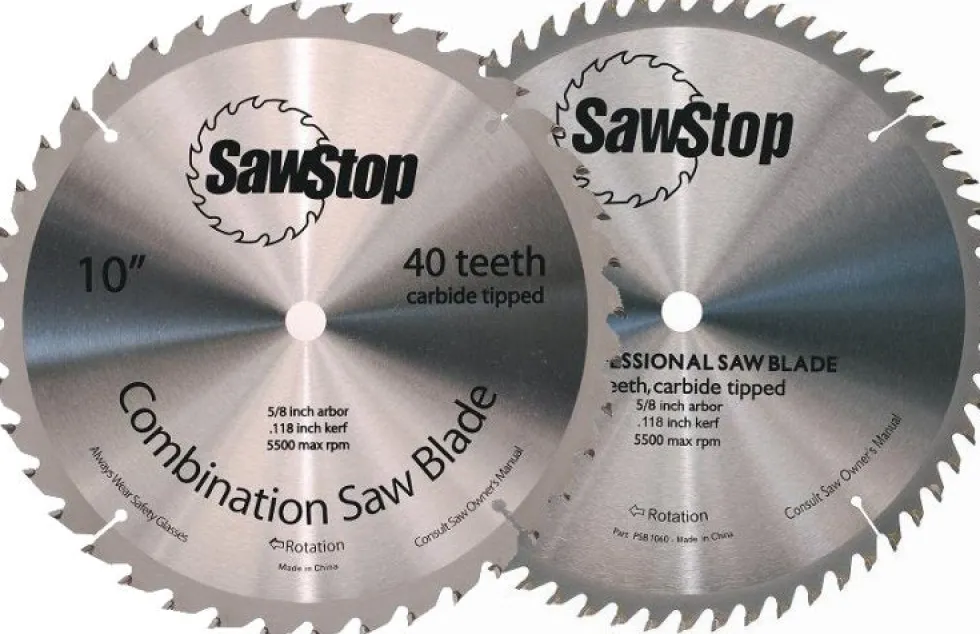

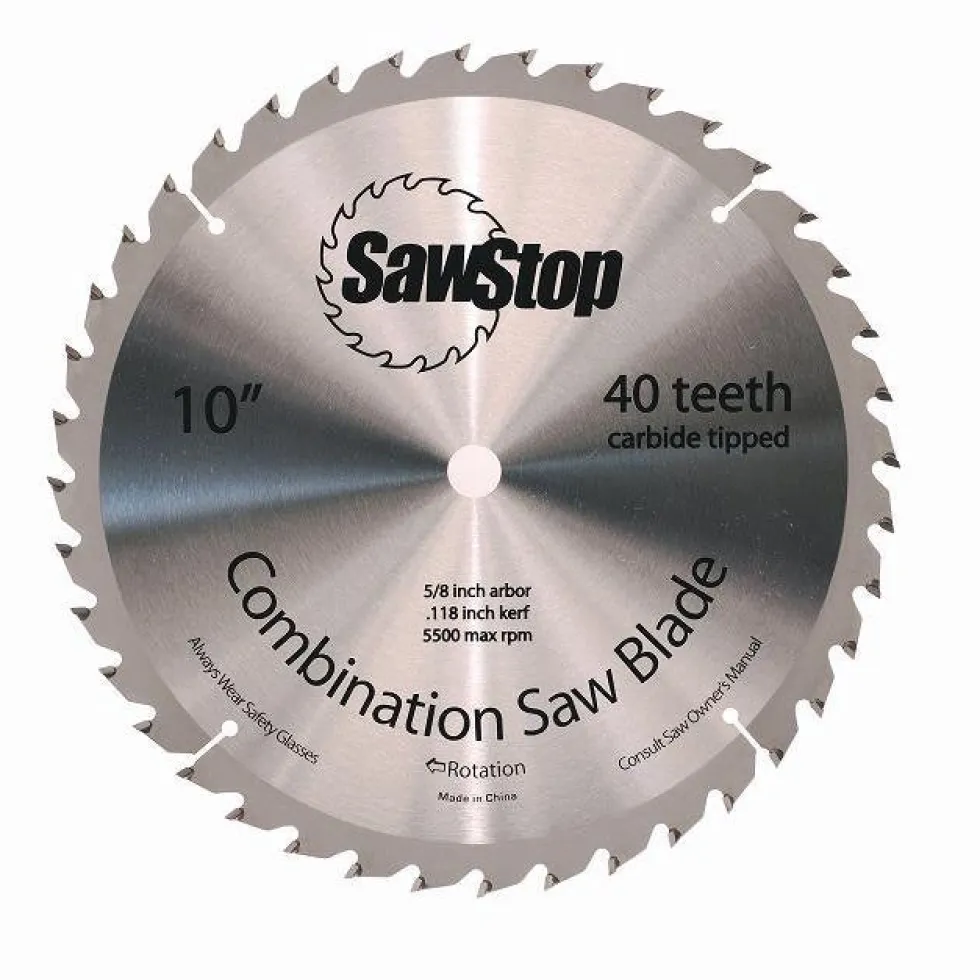

SawStop’s standard blades offer high quality cuts at a reasonable price. The CNS-07-148 40-tooth blade is for general purpose rips and crosscuts. The CB104 18460-tooth blade is for precision crosscuts.The BTS-R-24ATB 24-tooth blade is for precision rips.

Specifications – (Common to all three blades)

• Diameter — 10″
• Arbor — 5/8″
• tooth Pattern — Alternate Top Bevel
• Rake Angle — 15°
• Top Angle — 10°
• Kerf — 3mm (~1/8″)
• Plate Thickness — 2mm (~5/64″)
• Tooth Thickness — 2mm (.079&quot ~5/64″)>

SawStop, the SawStop blade logo, and the configurations of SawStop products are either registered trademarks or trademarks of SawStop, LLC and are used with permission.

Due to SawStop policy, Highland Woodworking cannot ship SawStop products outside the U.S. Any SawStop order that we ship requires a U.S. shipping address.
