SawStop Contractor Saw CNS

The SawStop tablesaw’s unique brake design detects hand or finger contact with the sawblade, instantly stopping and retracting the blade helping to avoid serious injury. The SawStop table saw’s 1.75 hp motor comes ready to operate at 110 V, 15 A. It can be reconfigured to 220 V, 7.5 A (additional parts required – not included).

Includes

• CNS175 Table Saw
• Two Stamped Steel Extension Wings
• Fence, rails and side table
  (36″ & 52″ fences include legs)
• Miter Gauge
• Micro Blade Guard
• Riving Knife
• Blade Wrenches
• Push Stick
• 10″ 40-Tooth Blade CNS-07-148
• Standard Lockdown Insert
• Standard Brake Cartridge
• Owner’s Manual
• Assembly Instructions
• (2) Hardware Packs
• Hex Keys – 3 mm, 5 mm, 8 mm
• Blade Spacing Adjustment Gauge

Specifications

• Cast iron table – 20″ W x 27″ D
• Motor – CNS175: 1.75 hp, 120 V, 14 A
• Extension wings – 12″ x 27″
• Blade diameter – 10″
• Arbor – 5/8″
• Dust port – 4″
• Blade tilt – Left
• Max cut depth at 0º is 3-1/8″
• Max cut depth at 45º is 2-1/4″
• Dado diameter – 8″
  (requires dado brake cartridge & insert)
• Dado max. width – 29/32″
• Weight (saw only) – 225 lb
• Assembled Saw

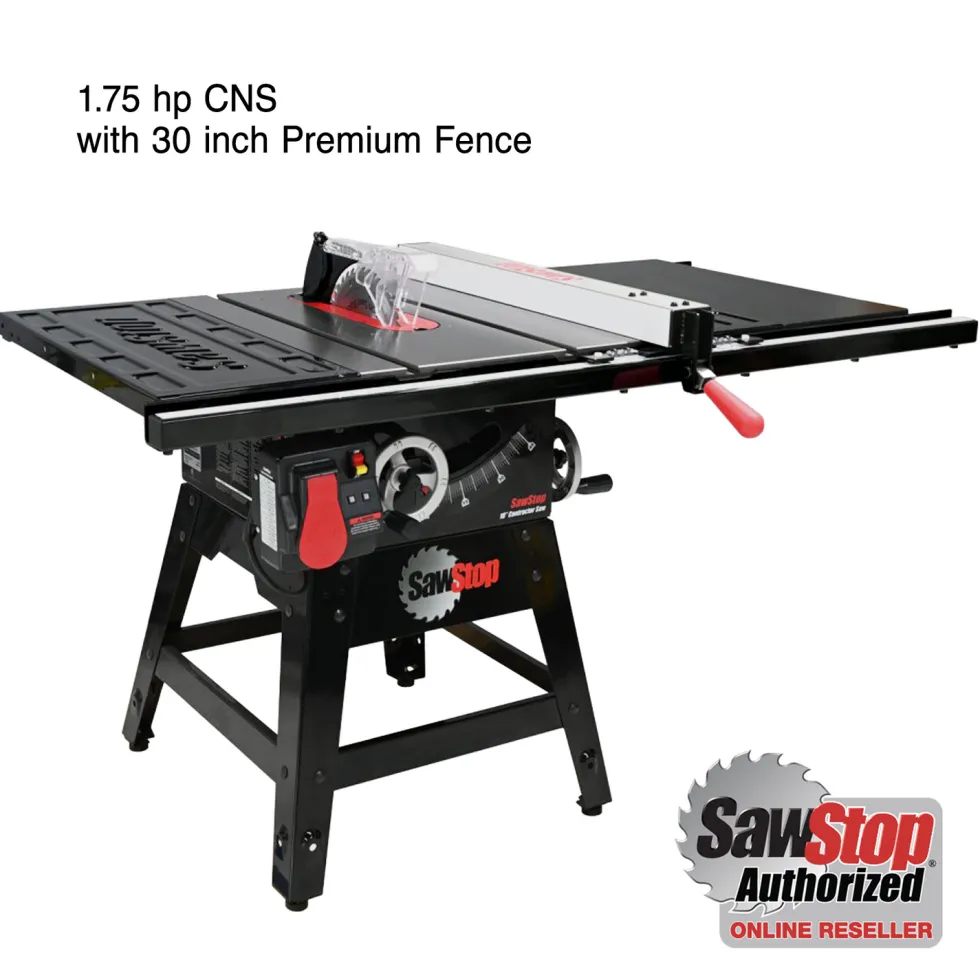

  • 30″ Prem. Fence – 61-3/4″ x 40″ x 34-3/4″, Weighs 256 lb

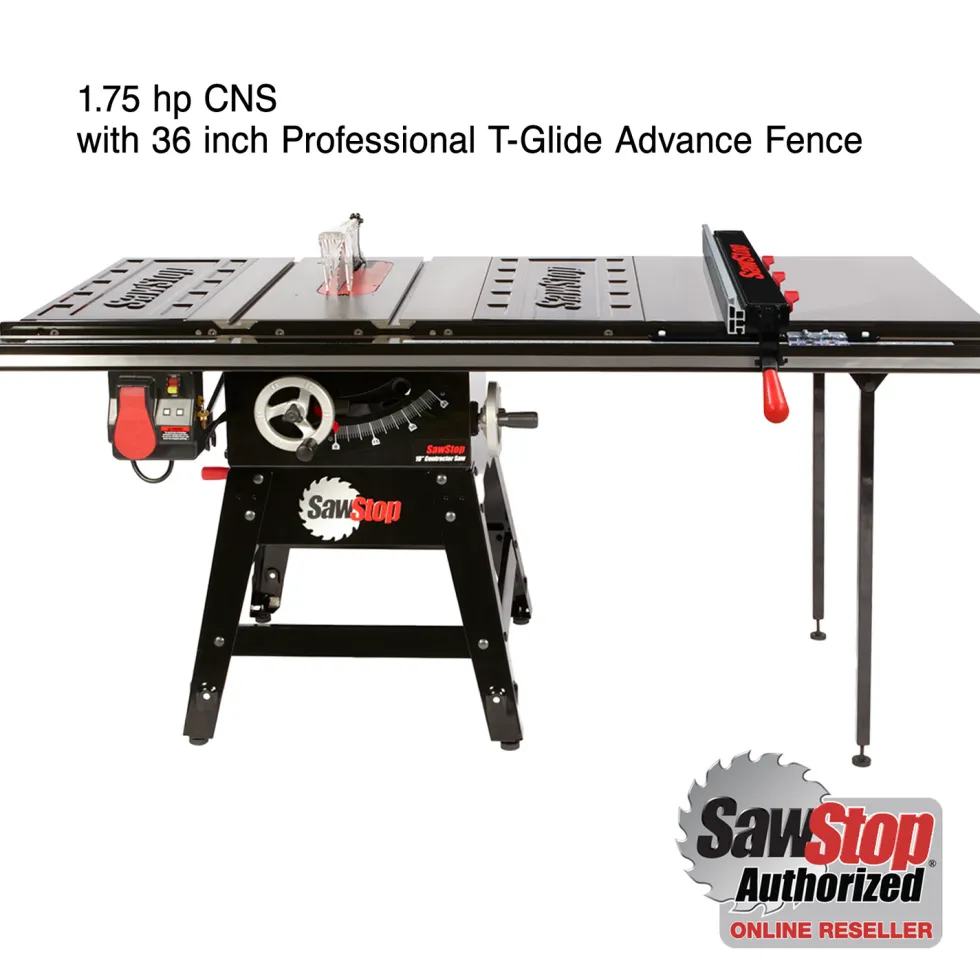

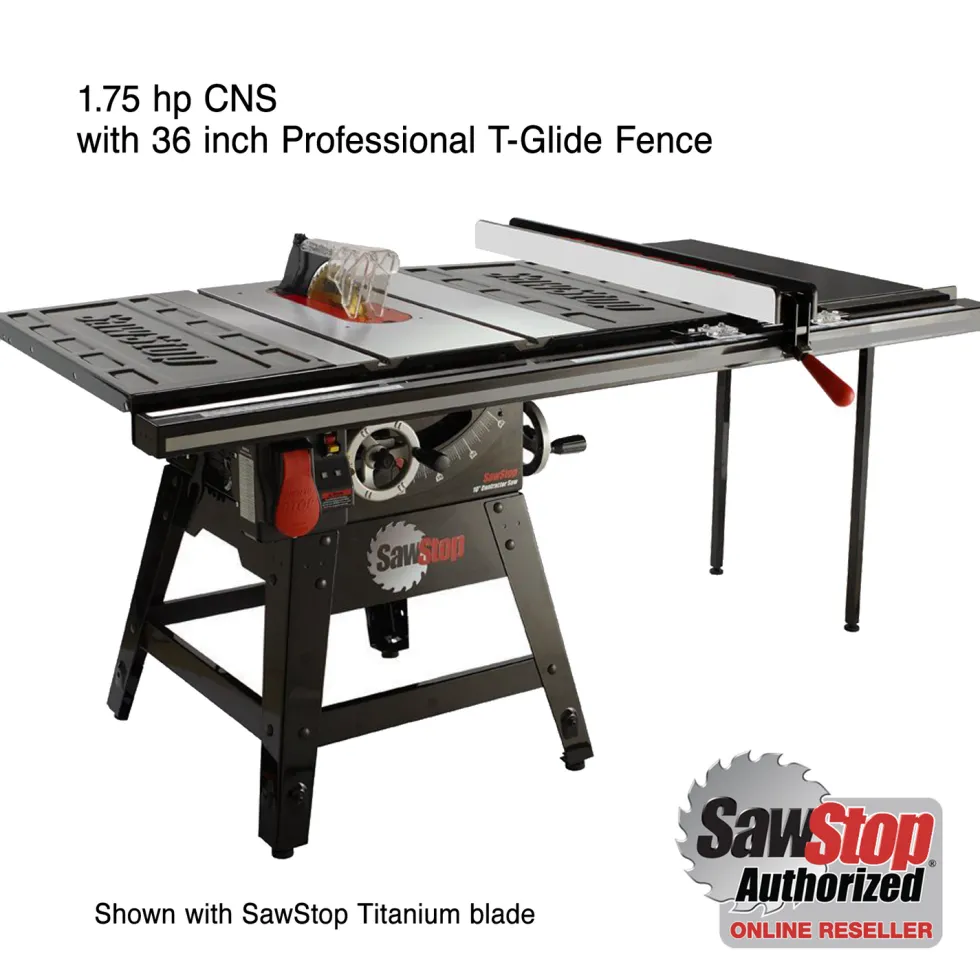

  • 36″ Fence – 69-1/8″ x 40″ x 34-3/4″, Weighs 310 lb

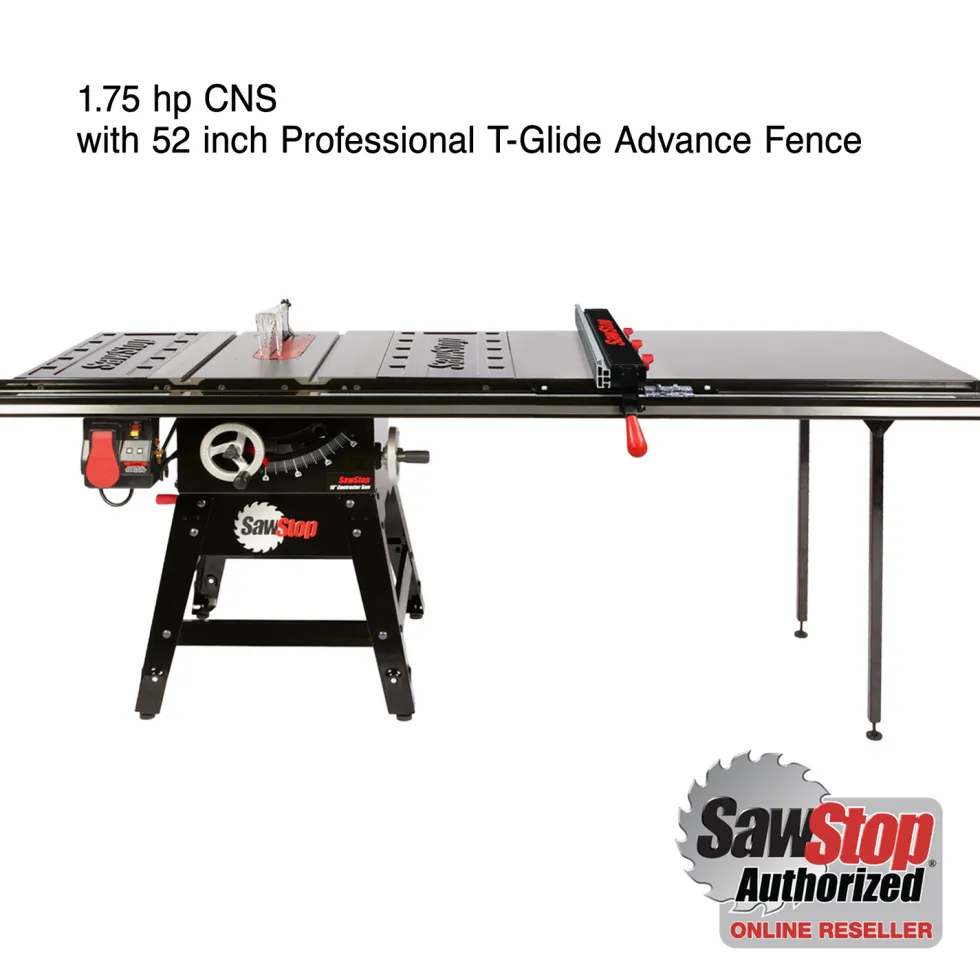

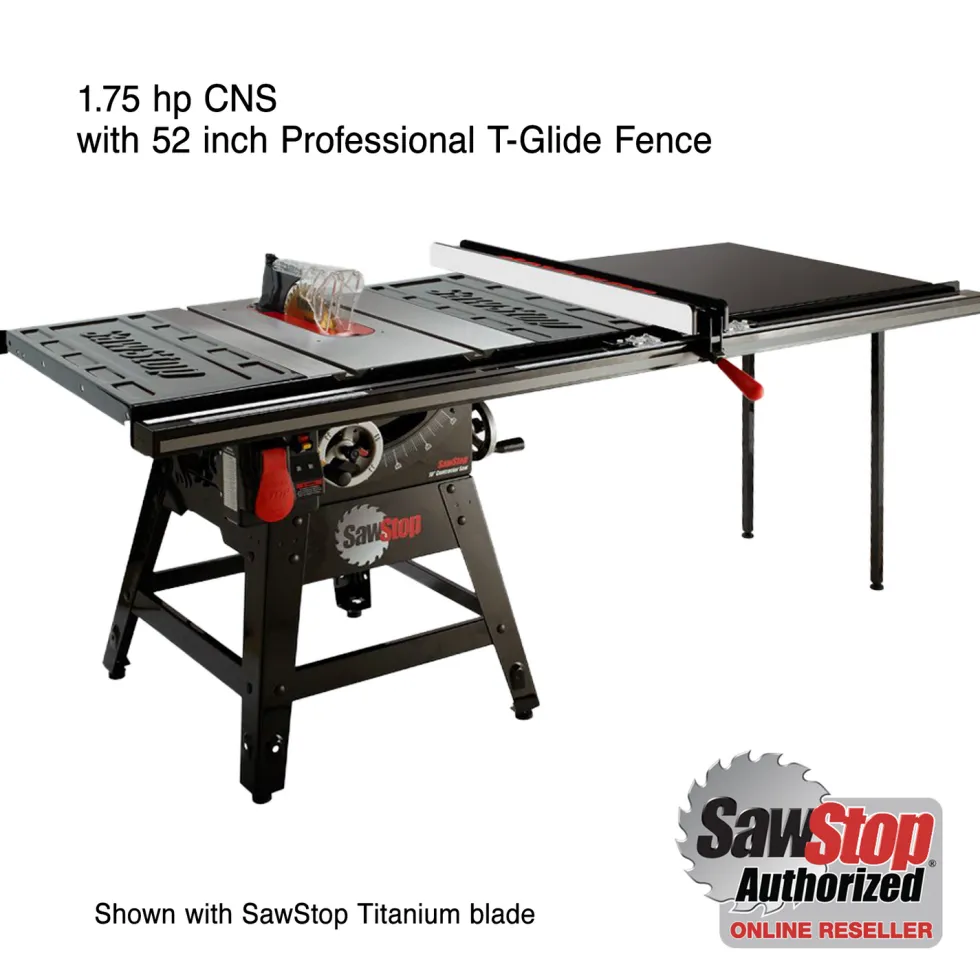

  • 52″ Fence – 69-1/8″ x 40″ x 34-3/4″, Weighs 335 lb

Additional Information

Using a SawStop with a dado? See our Advice on selecting dados for SawStop saws.

Warranty

SawStop warrants to the original retail purchaser of a new contractor saw that the saw will be free from defects in material and workmanship for TWO YEARS from the date of purchase (must be registered with SawStop). See the SawStop website for details.

SawStop, the SawStop blade logo, and the configurations of SawStop products are either registered trademarks or trademarks of SawStop, LLC and are used with permission.

Due to SawStop policy, Highland Woodworking cannot ship SawStop products outside the U.S. Any SawStop order that we ship requires a U.S. shipping address.
