SawStop 10 inch JobSite PRO Table Saw

SawStop is well known for both the stellar quality of the machines they build as well as the exclusive SawStop safety features. Now add to this list “extreme portability.” The new compact SawStop Jobsite Saw makes it easy to take SawStop’s quality, safety and other unique features with you to any location.

Beyond the peace of mind that SawStop’s patented blade brake system provides, stopping in 5 milliseconds upon contact with skin, the new Jobsite Saw brings with it more new features that make accurate work quicker and more reliable than ever.

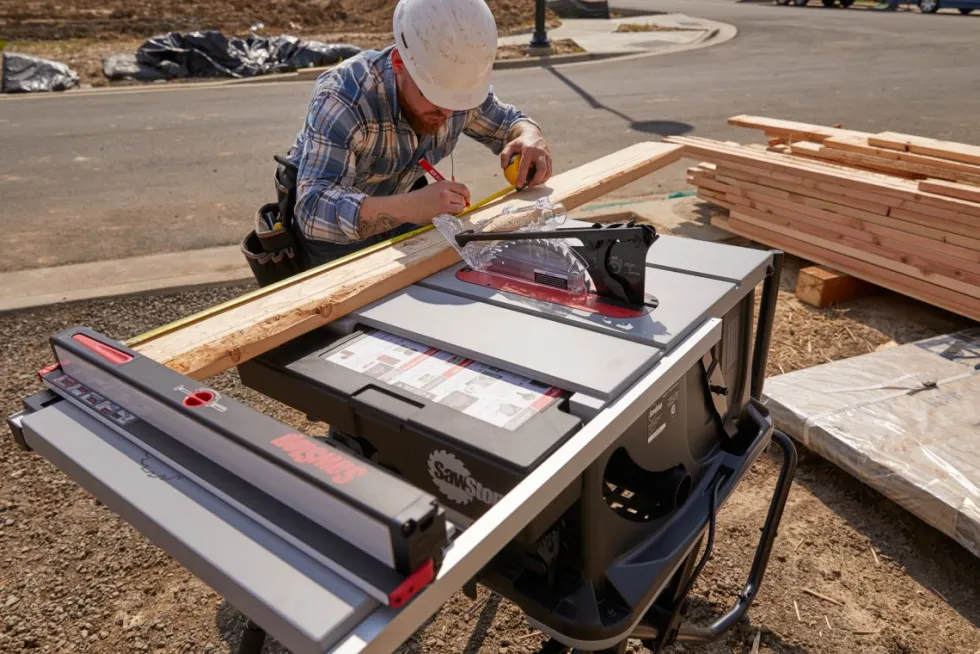

This Jobsite Saw Pro model has a table that is two inches deeper than the original Jobsite saw model for improved stock support, comes standard with a blade guard that allows a direct hook up to a shop vac and includes an innovative high-low T-style fence with Ergolock for better stock control and improved safety when cutting with the fence positioned close to the blade.

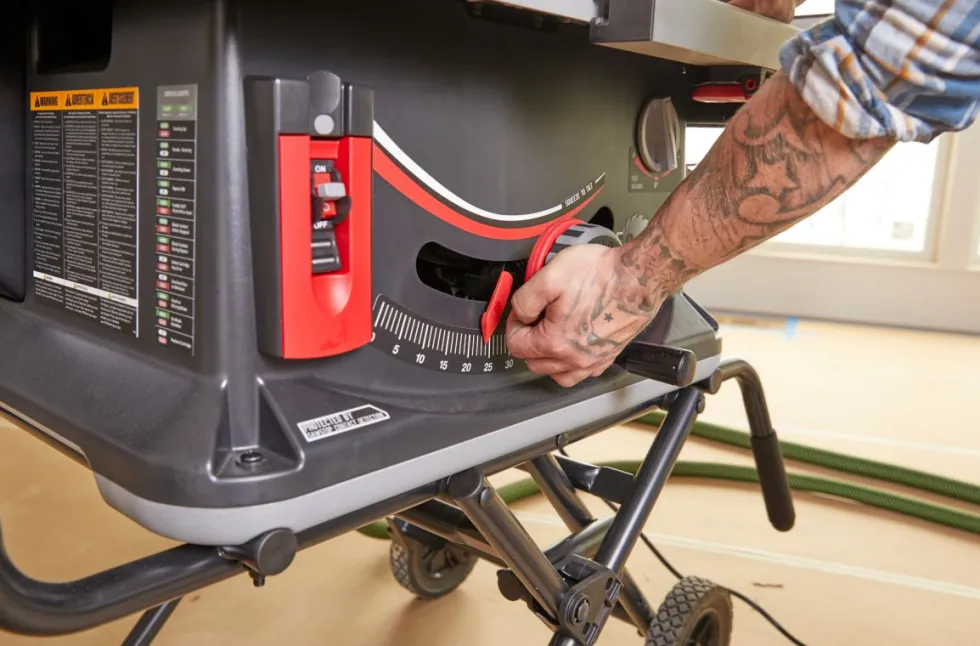

While some jobsite saws require over 25 turns to fully raise or lower the blade, the SawStop Pro Saw does it in just one turn of the handwheel. Just as easily, the blade can be tilted instantly to any angle in 1 degree increments, and infinitely fine tuned beyond that.

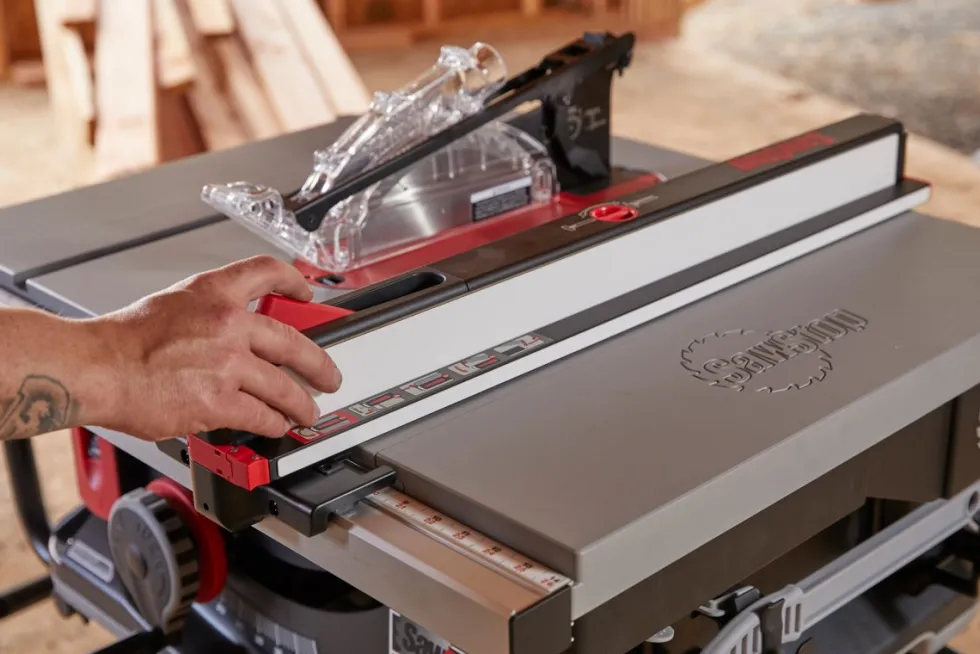

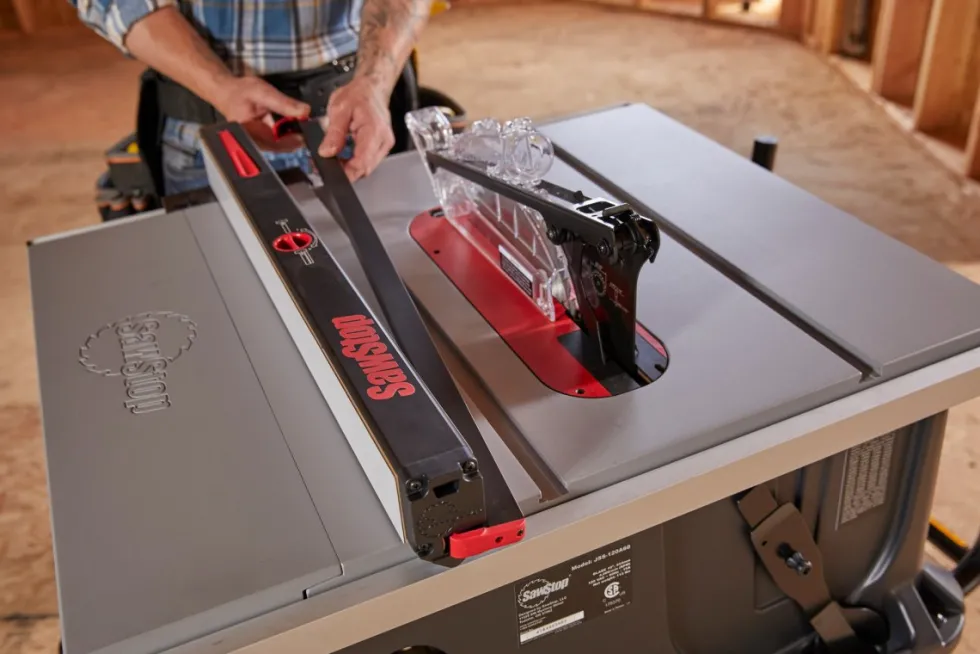

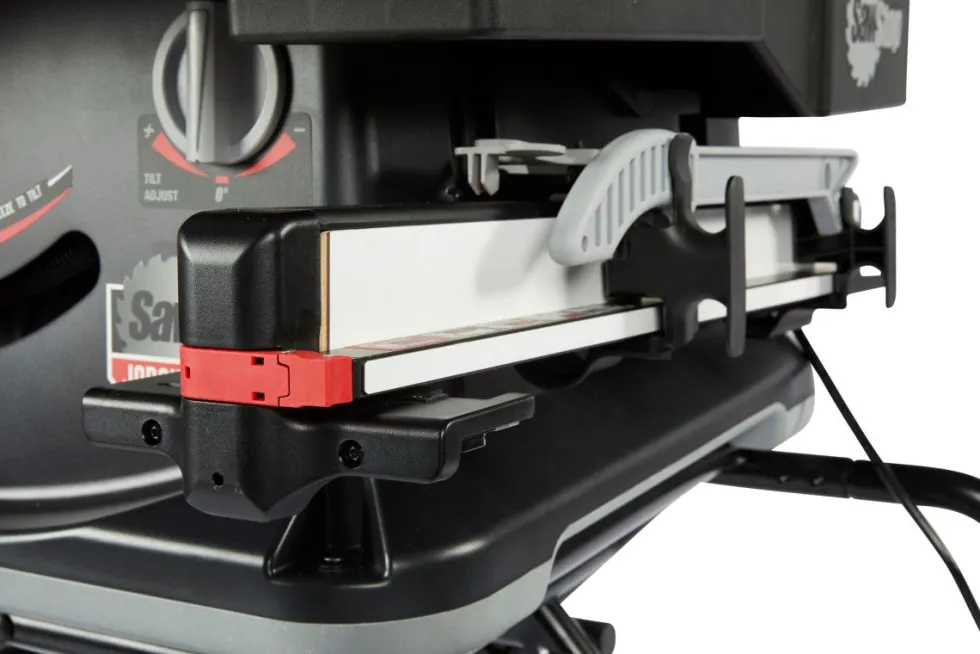

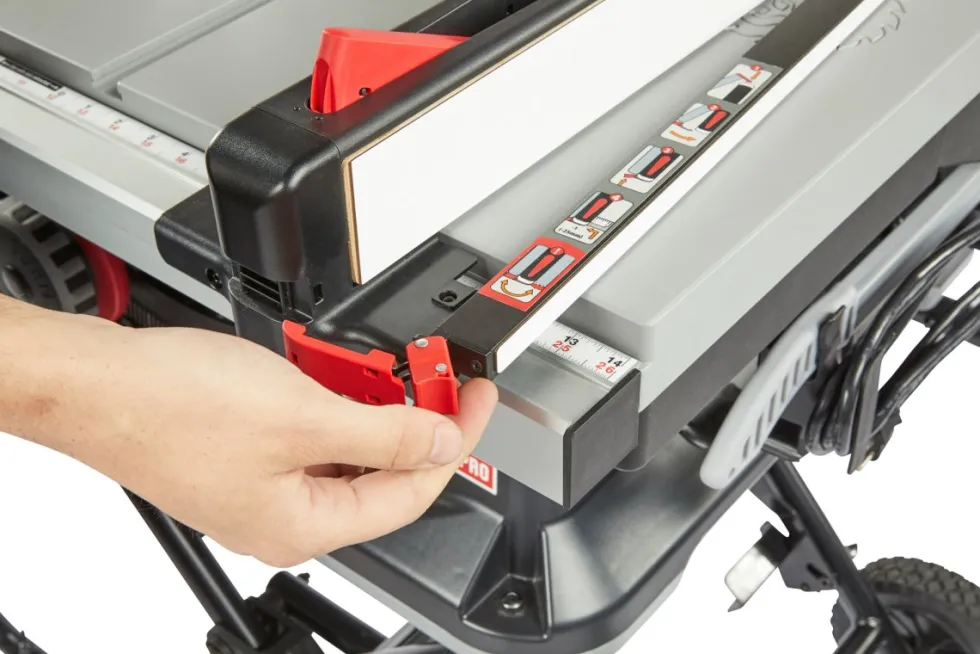

The robust T-Glide fence slides smoothly and locks securely with the innovative ErgoLock. A handy OnDemand Shelf can be extended when needed for additional support.

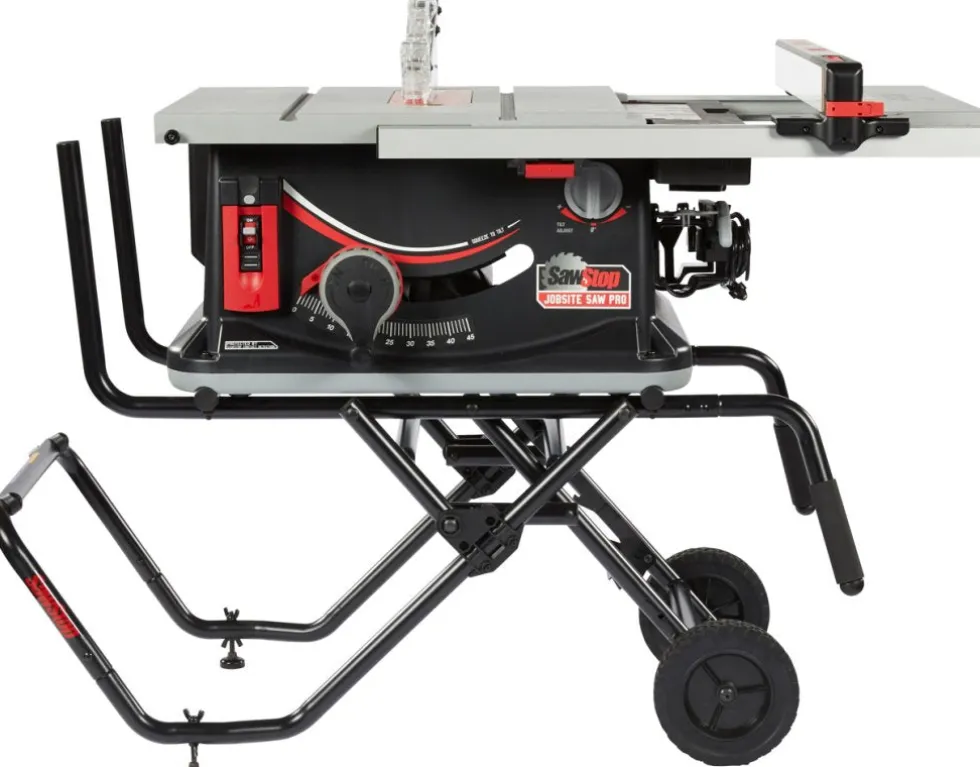

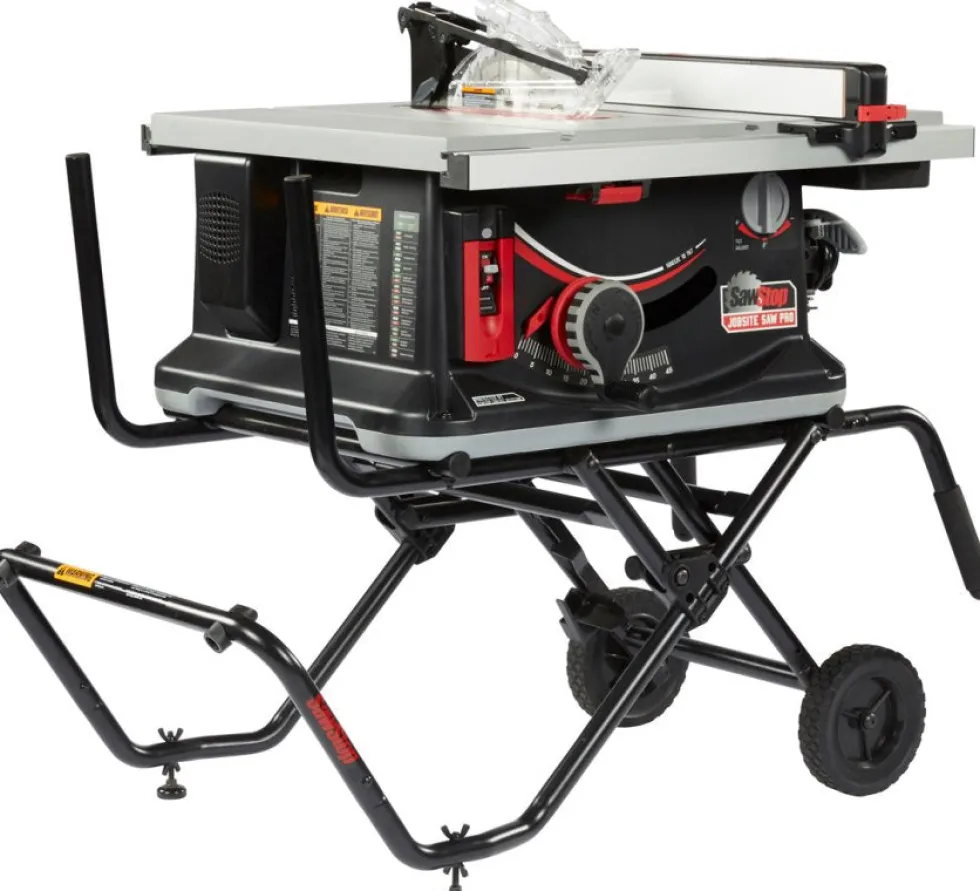

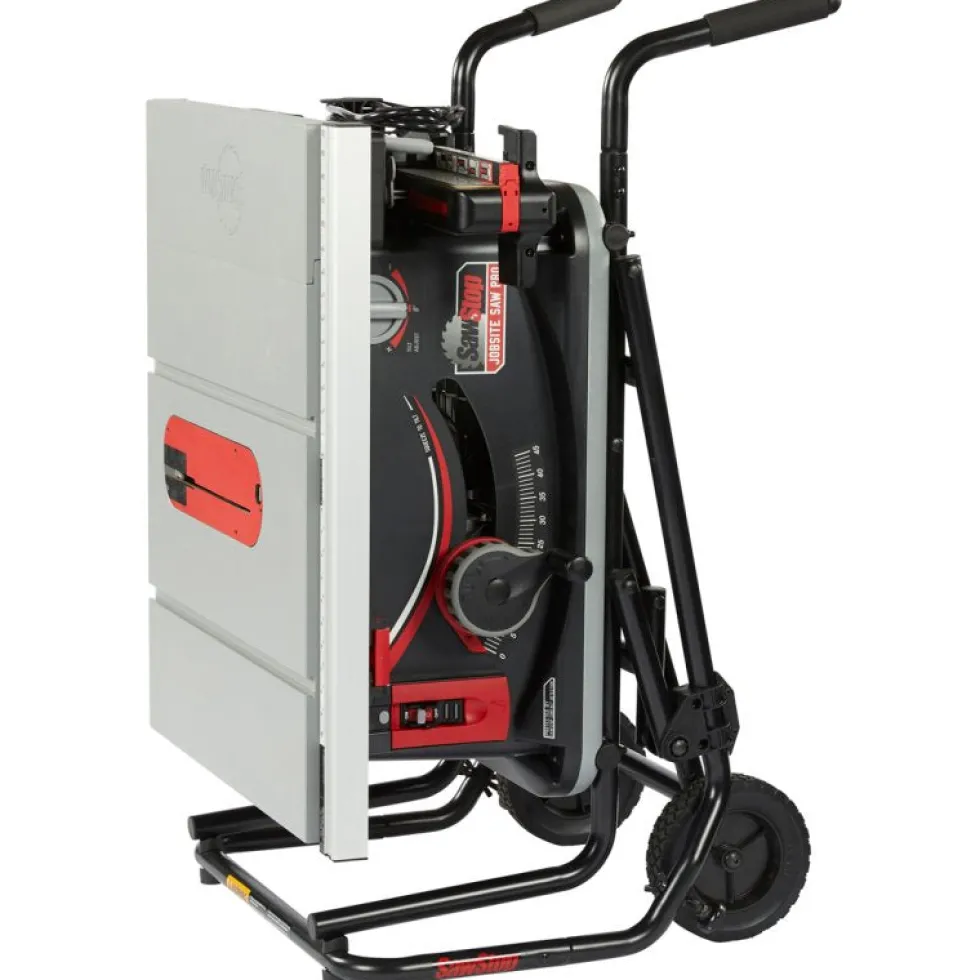

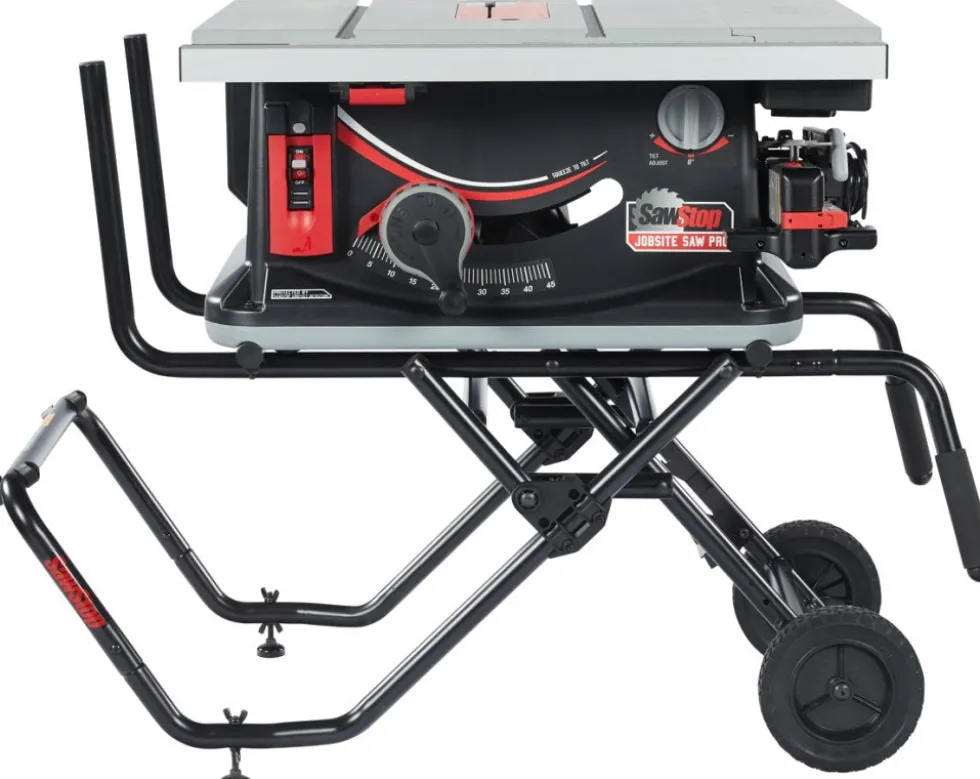

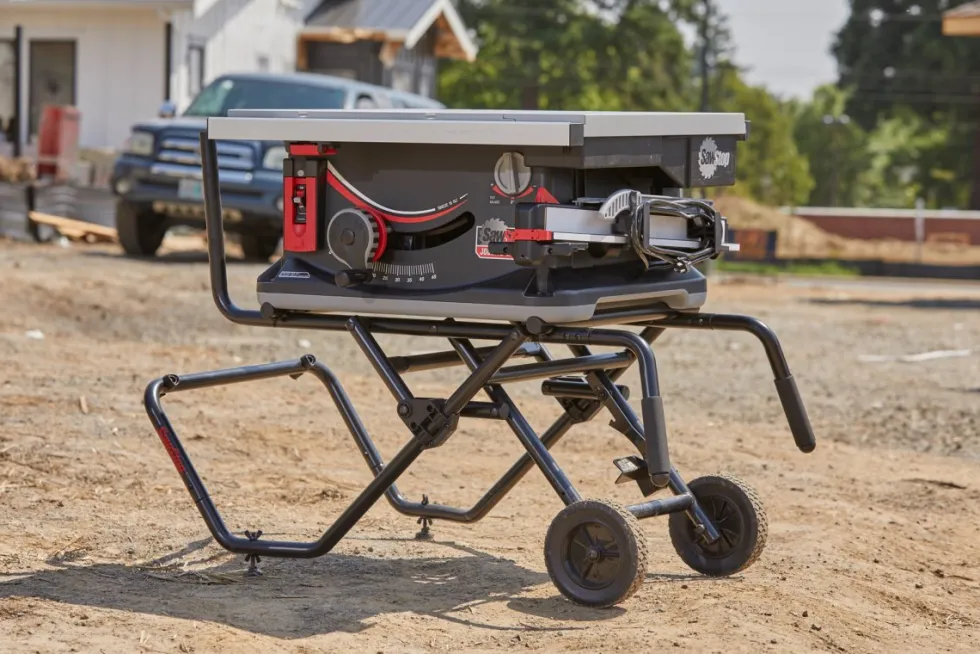

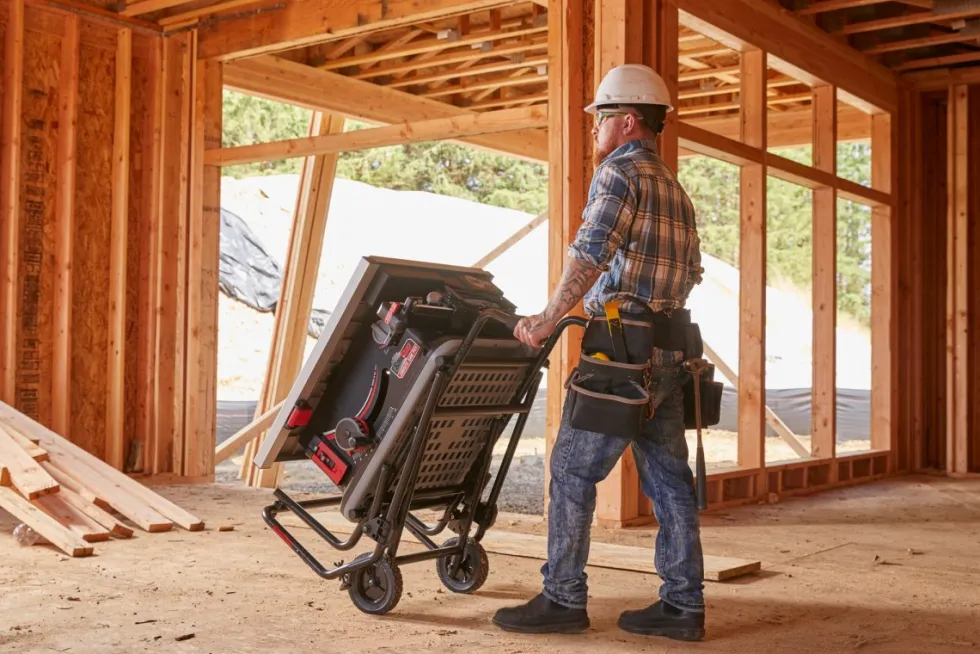

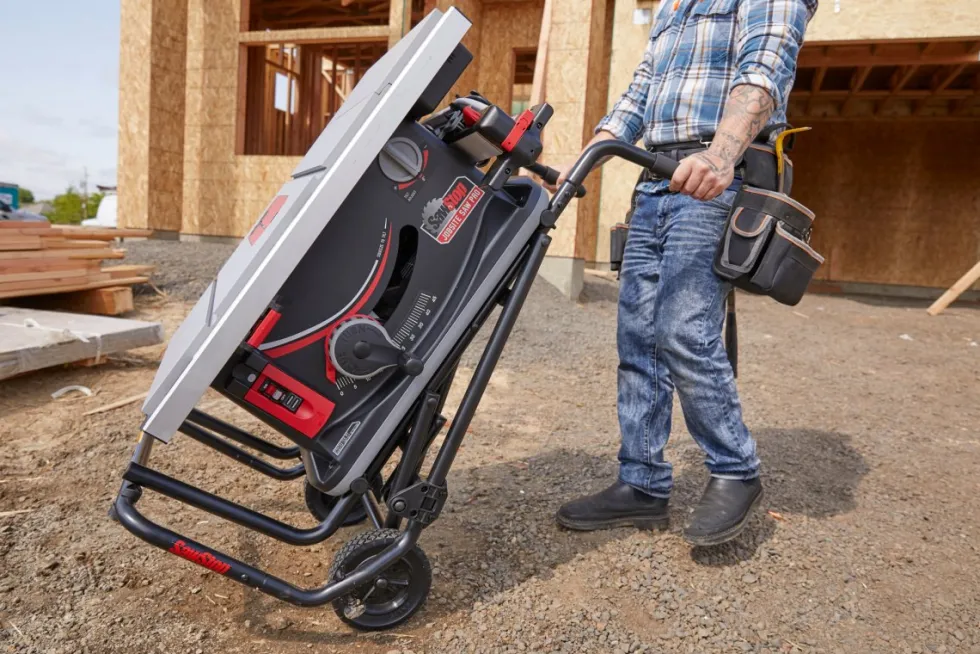

Simple intuitive action extends the cart for using the saw, or collapses the cart to allow for transport on large wheels that allow easy navigation on variable terrain.

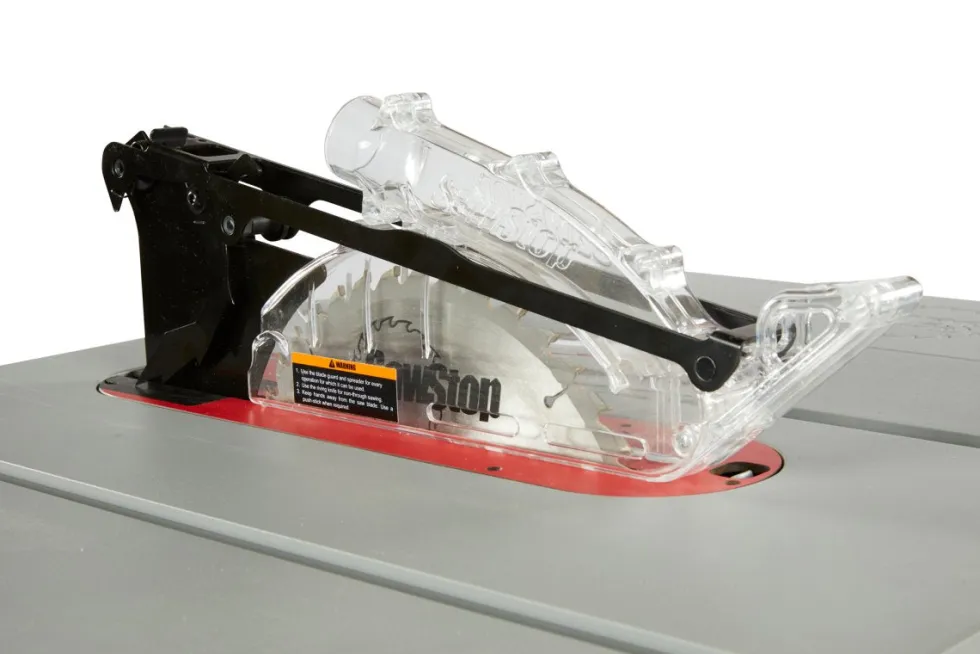

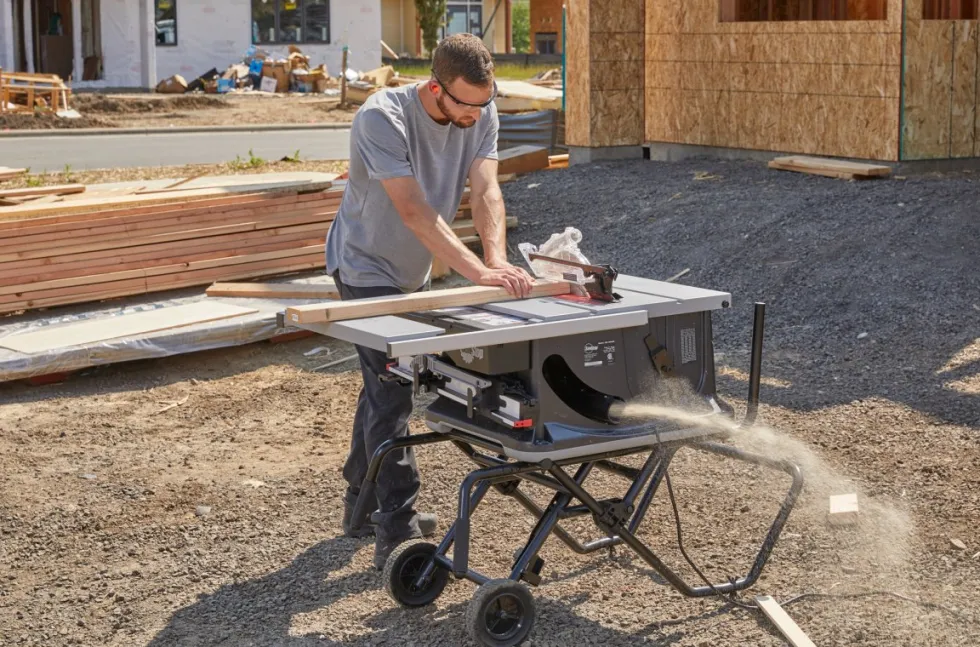

Advanced under-table blade shrouding maximizes dust collection when attached to your shop-vac. The low profile blade guard increases visibility and helps protect against kickback, or easily switch to the included riving knife with the flip of a lever.

Sawstop’s 10 inch JobSite Pro Saw table saw is the best choice for your portable tablesaw needs – you deserve the safety and performance of the world’s safest and best jobsite tablesaw on the market.

What’s Included?

• JSS Pro JobSite Saw
• Collapsible Rolling Cart
• High/Low T-Style Fence w/Ergolock
• Miter Gauge
• JSS Active Dust Collection Blade Guard
• Riving Knife
• Blade Wrenches
• Push Stick
• 10″ 40-tooth Combination Blade
• Zero Clearance Insert
• Standard Brake Cartridge
• User’s Guide
• Assembly Instructions Poster
• Hardware Pack
• 3 mm Hex Key
• 4 mm Hex Key
• 5 mm Hex Key

JSS-120A60 JobSite Saw Specifications

Motor Configuration	120 VAC 60 Hz 1.5 hp Universal Motor
Amperage	15 A
Weight (saw only)	84 lb
Weight (with cart)	113 lb
Blade Diameter	10″
Dado Diameter	8″
Max. depth of cut with blade at 0°	3-1/8″
Max. depth of cut with blade at 45°	2-1/8″
Maximum rip right of blade – extended	25-1/2″
Saw Dimensions (stowed on end, with cart)	45″ x 26-1/2″ x 29″
Table Dimensions (extended)	43-5/16″x 24-5/8″
Dust Collection Port Diameter	2-9/16″ OD, 2-1/4″ ID (fits most common ~2-1/2″ shop vacuum hoses)

Additional Information

Using a SawStop with a dado? See ourAdvice on selecting dados for SawStop saws.

Warranty

SawStop warrants to the original retail purchaser of a new jobsite saw that the saw will be free from defects in material and workmanship for TWO YEARS from the date of purchase(must be registered with SawStop). See the SawStop website for details.
