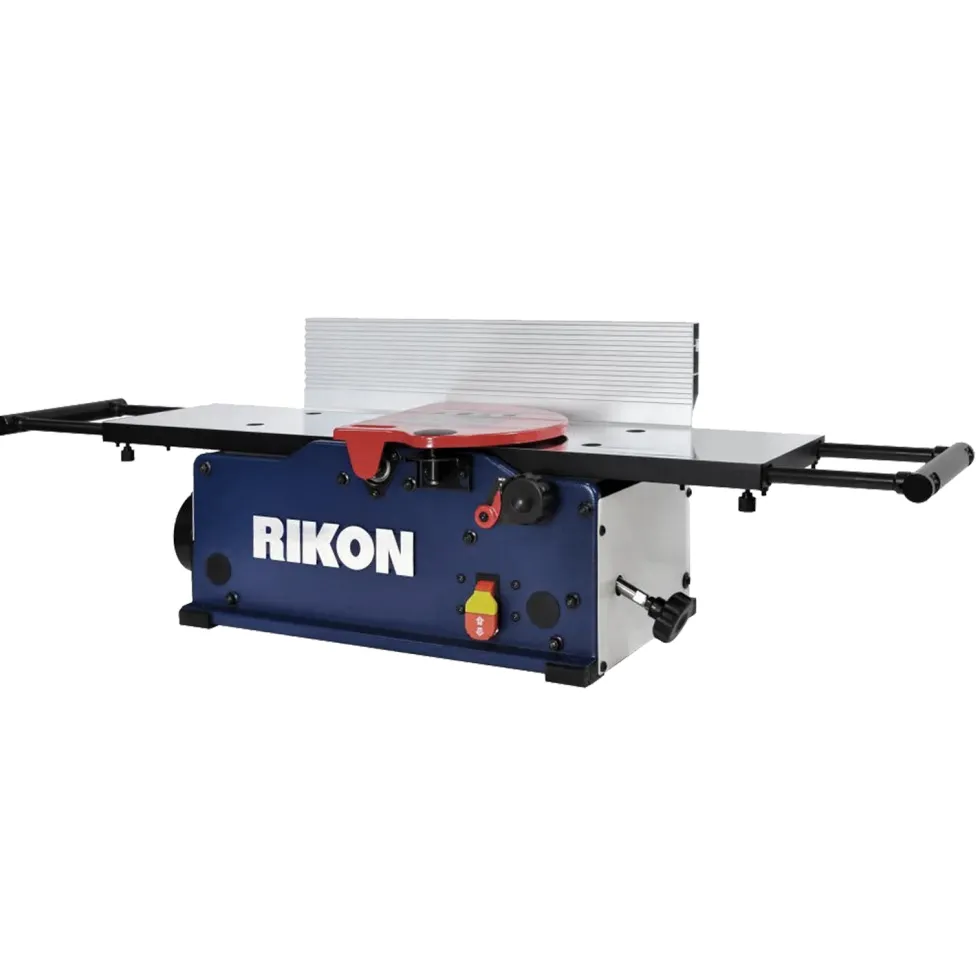

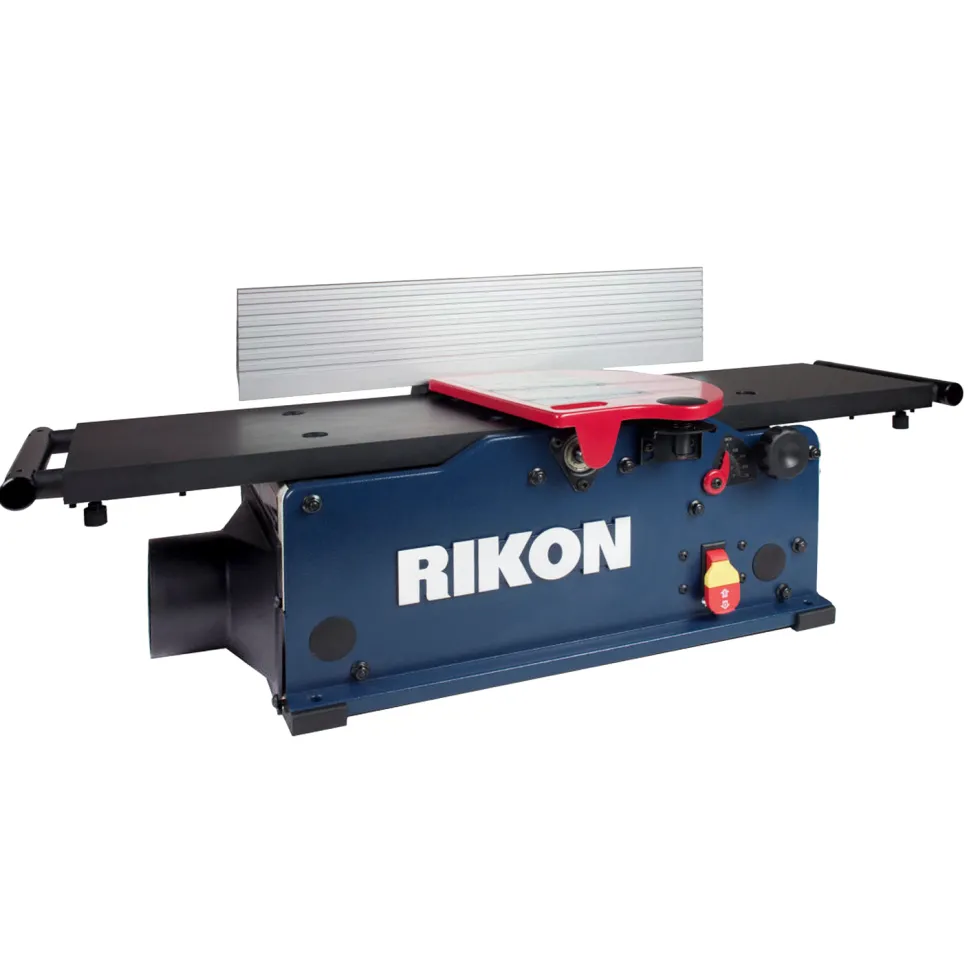

Rikon 8 inch Helical-style Benchtop Jointer 20-800HSP

Now with Synthetic Polymer Coating on the tables for reduced friction!

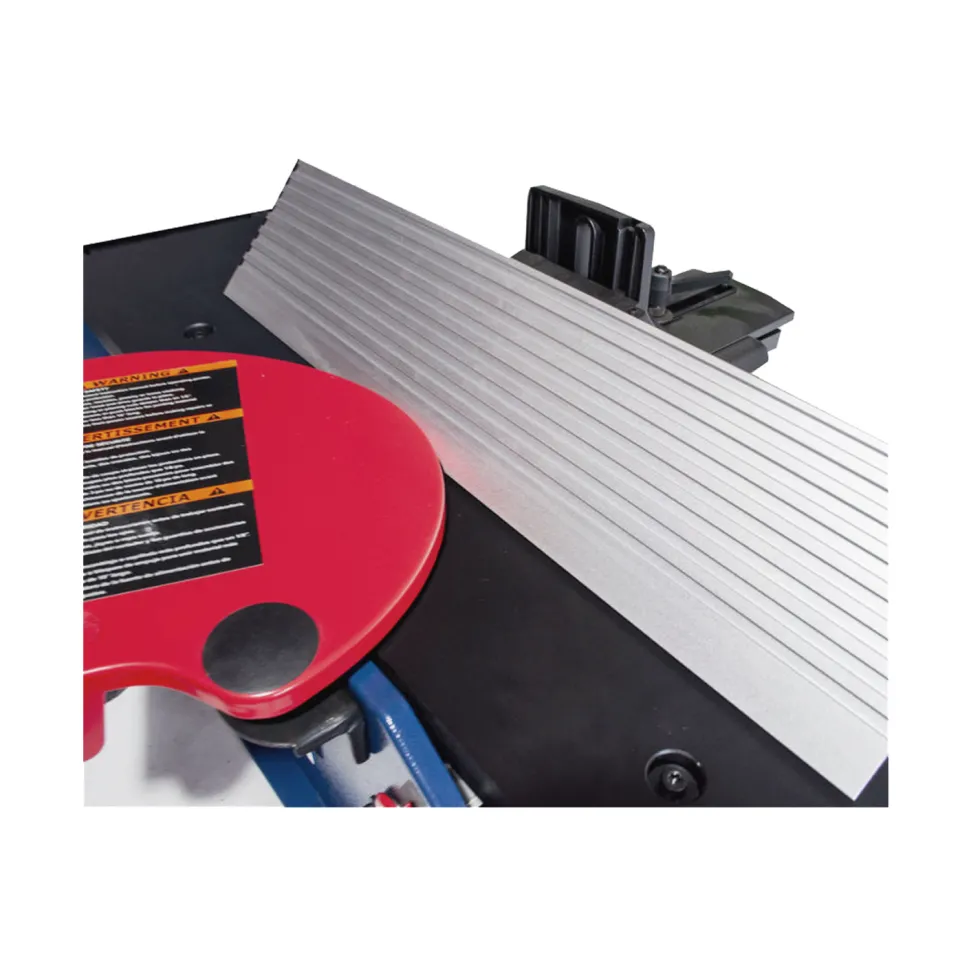

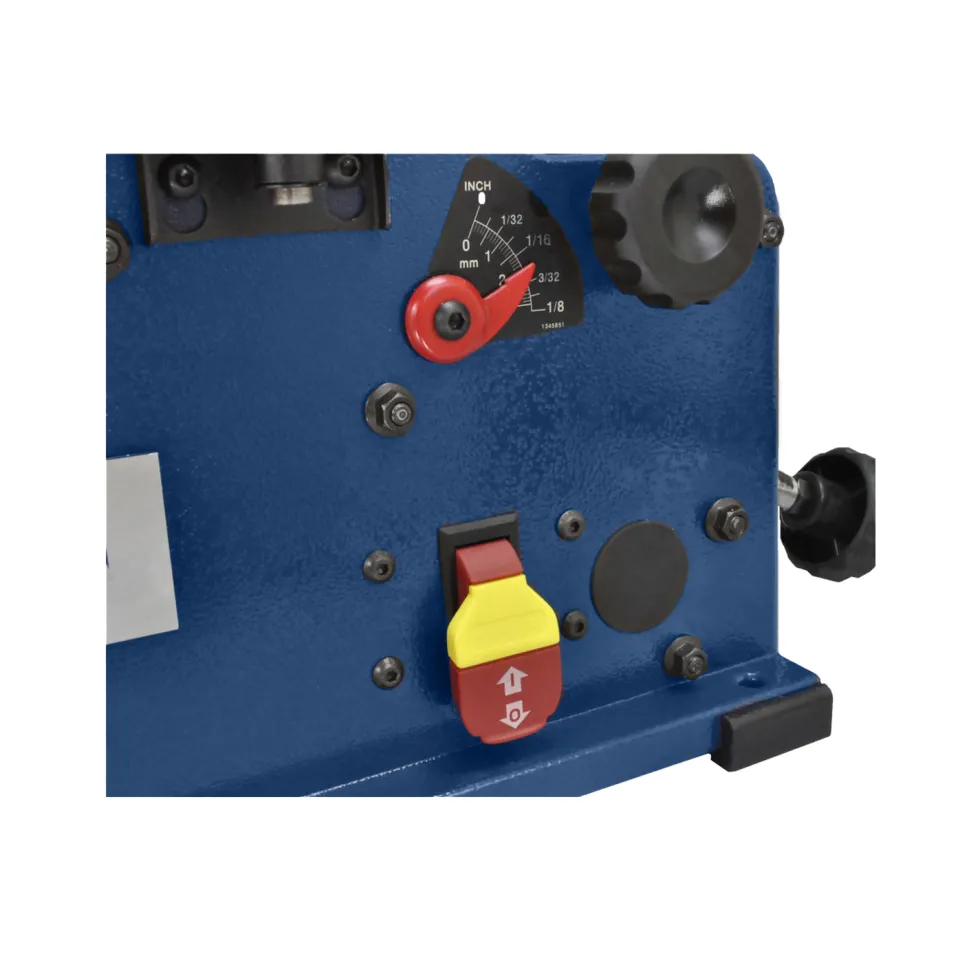

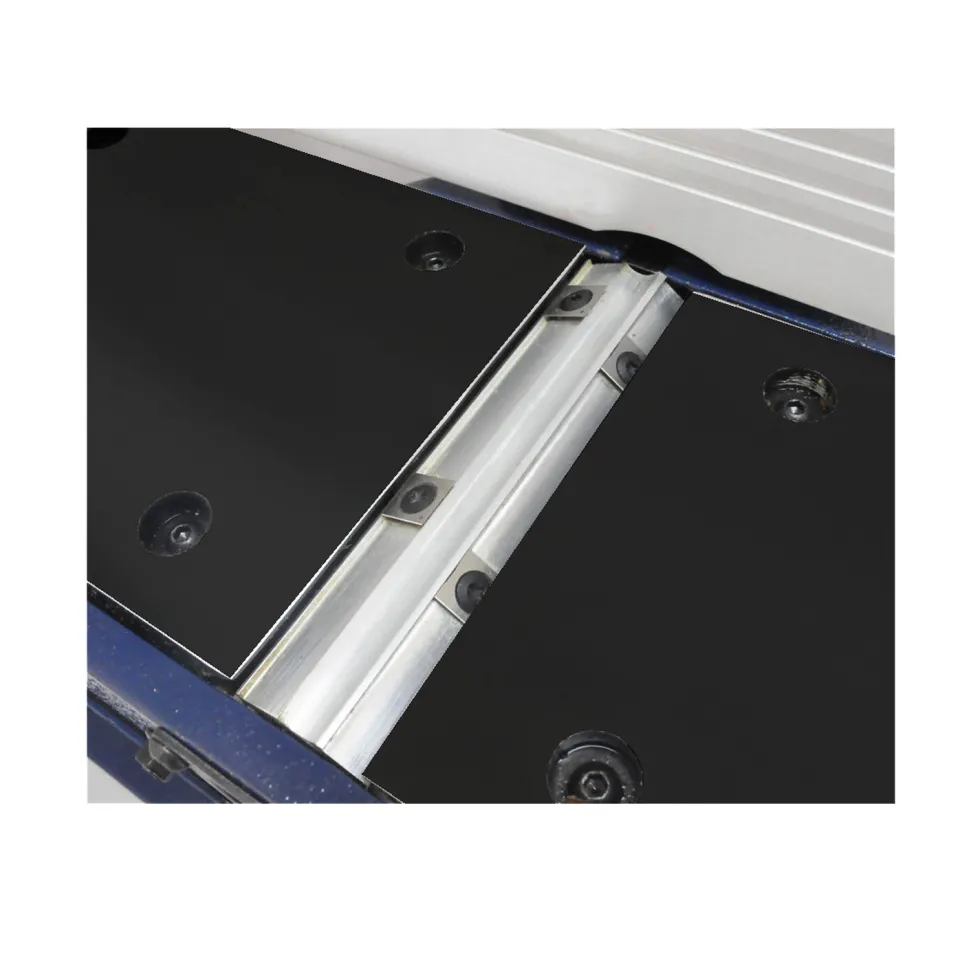

Rikon’s 20-800HSP 8″ Benchtop Jointer has a 6-row helical-style cutter head with 16 carbide , 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2 to 51-1/2 long. It has rigid all-metal construction, machined aluminum tables with Synthetic Polymer Coating, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately and a spring-loaded safety guard. It’s a capable machine that will fit in even the most space-challenged shop.

The 20-800HSP Jointer includes a FIVE-YEAR manufacturer’s warranty.

Specifications

• Motor – 10 A, 120 V 60 Hz, 20,000 rpm
• Overall Table Size – 30-1/2″ x 8-3/16″
• Overall Table Size w/ extensions – 51-1/2″ x 8-3/16″
• Outfeed Table Size – 14-1/4 x 8-3/16″
• Stock Width – 3/4″ – 8″
• Minimum Stock Length – 10″
• Minimum Stock Thickness – 1/2″
• Maximum Depth of Cut – 1/8″
• Cutterhead speed – 12,000 rpm
• 2-sided Knife Insert Size – 14.2 x 14.2 x 2 mm (0.56″ x 0.56″ x 0.077″)
• Knife inserts – 16 in 6 rows
• Cutterhead diameter – 2″

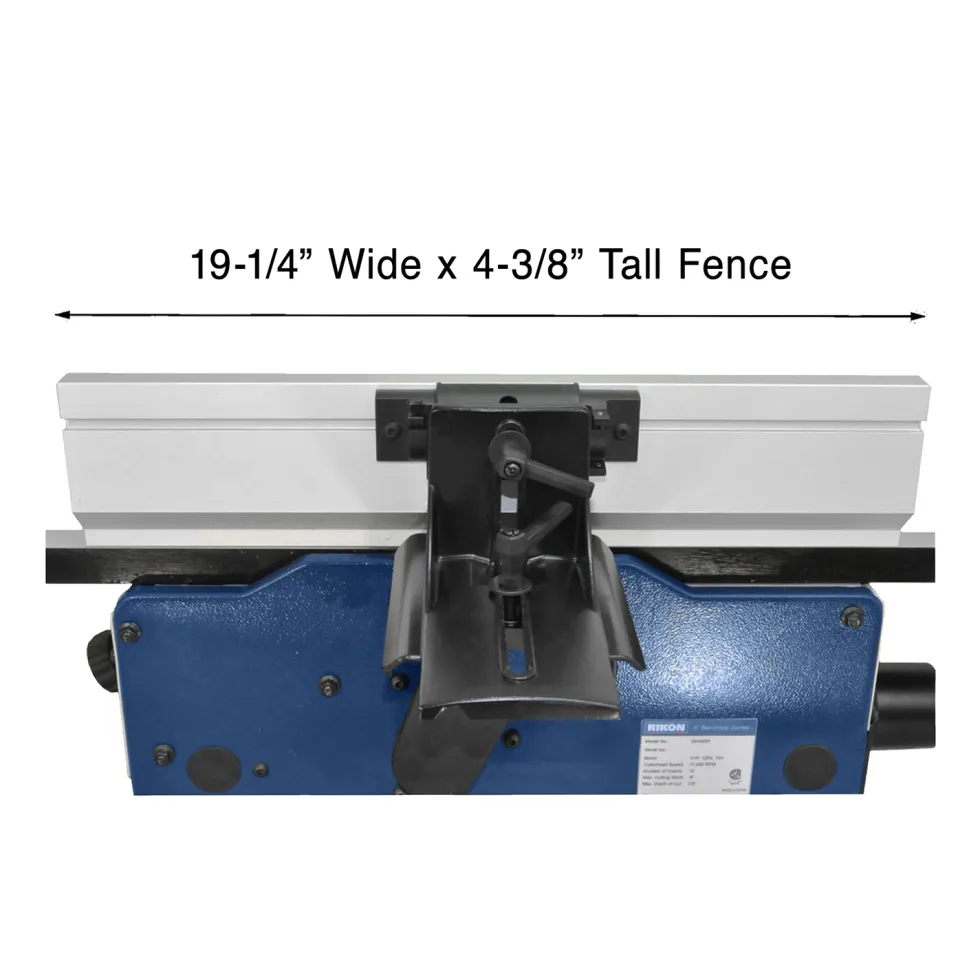

• Fence size – 19-3/4″ x 4-3/8″
• Fence Tilt – 90-135°
• Dust Port – 4″ (4″ to 2-1/2″ & 2-1/4″ adapter included)
• Minimum Dust Collection airflow – 100 cfm
• No-load Noise level at 3 feet <100 dB
• Overall dimensions – 51-1/2″ long x 18-3/4″ wide x 13″ high (with extensions out)
• Base Size – 19″ x 11-1/4″
• Net Weight – 49 lb
• Shipping Carton – 36-1/4″ x 15-1/2″ x 11-1/2″; 61 lb
• Five Year Warranty

Includes

• 16 2-sided Carbide Inserts (installed)
• 4″ to 2-1/2″ & 2-1/4″ dust port adapter
• Manual
• Jointer Push Blocks – 2
• Hex Wrenches – 2.5 mm & 4 mm
• T-Wrench – T25 Torx

Additional Information

Rikon 20-800HSP Benchtop Jointer Manual
