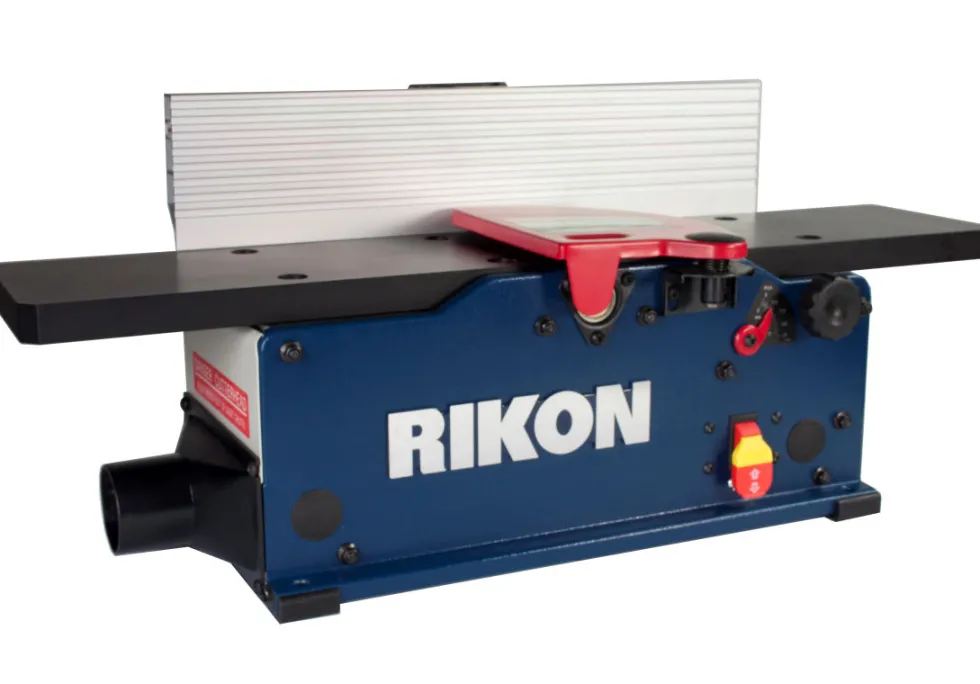

Rikon 6 inch Helical-style Benchtop Jointer 20-600HSP

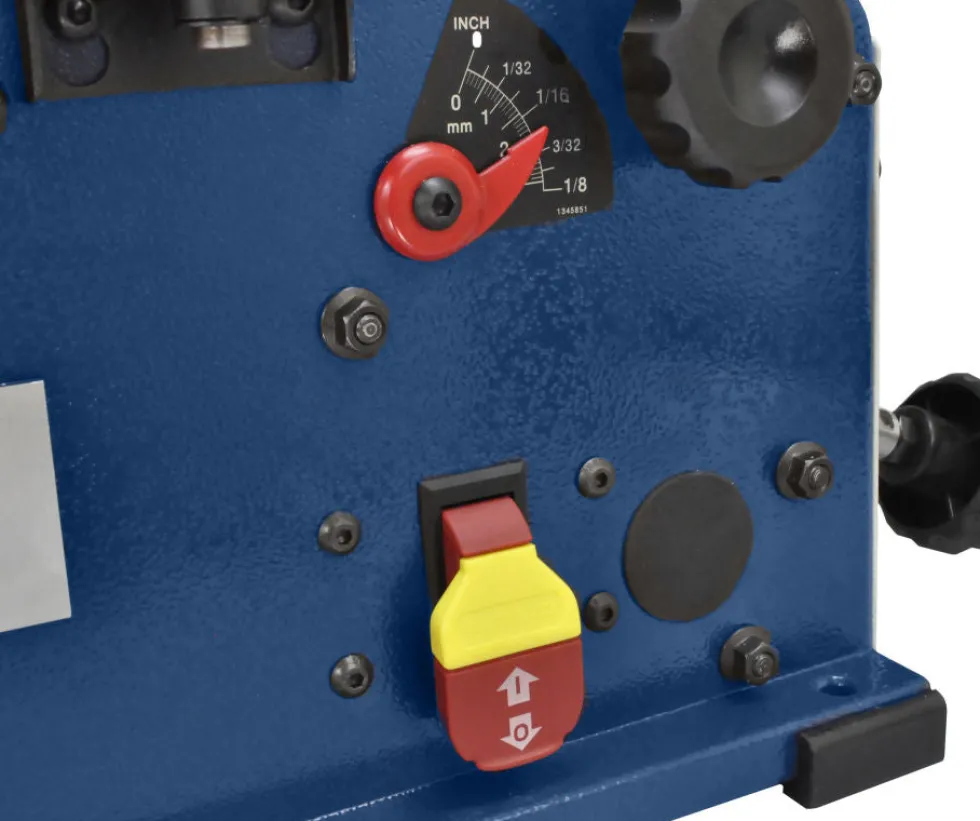

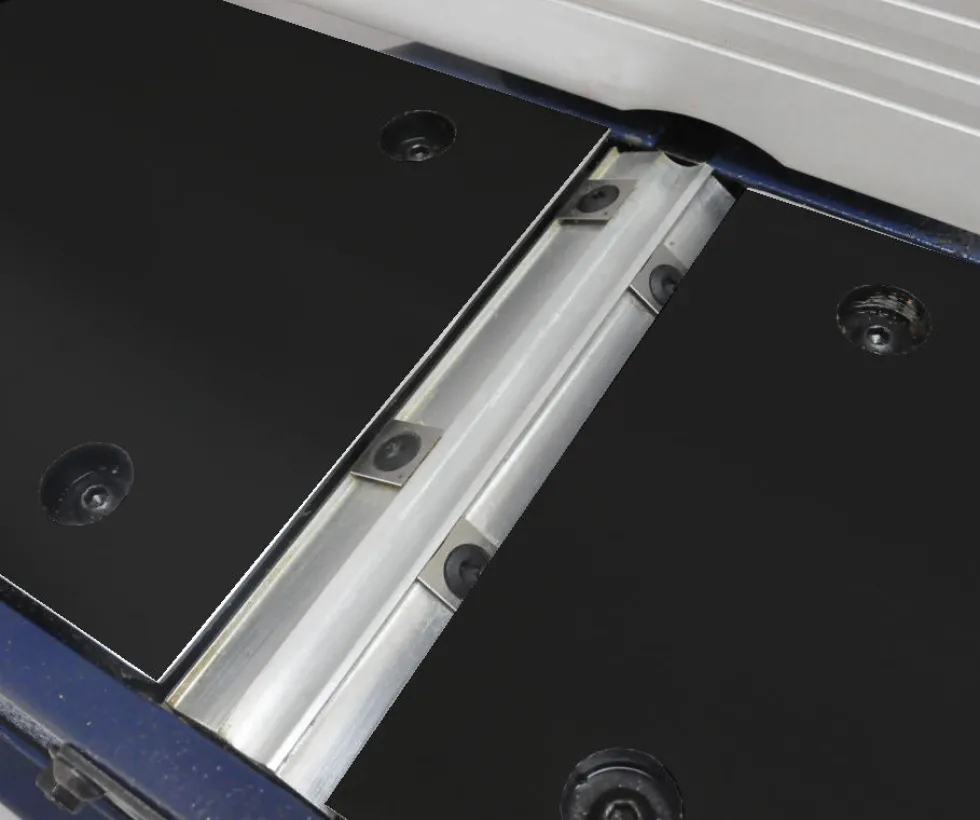

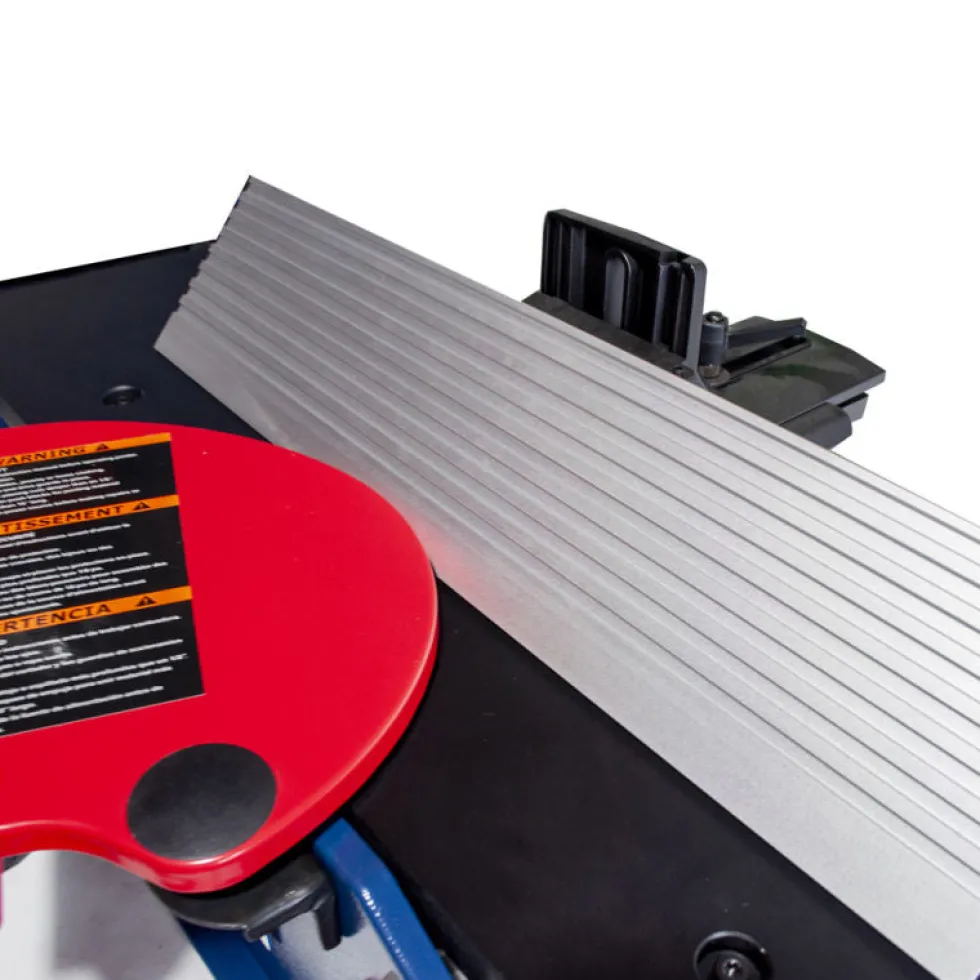

Rikon’s 20-600HSP 6″ Benchtop Jointer has a 6-row helical-style cutter head with 12 HSS 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2″ to 51-1/2″ long. It has rigid all-metal construction, machined aluminum tables with Synthetic Polymer Coating, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately and a spring-loaded safety guard. It’s a capable machine that will fit in even the most space-challenged shop.

Specifications

• Motor – 10a, 120v, 60Hz, 20,000 rpm
• Overall Table Size – 30″ x 6-3/16″
• Overall Table Size w/ extensions – 50-1/2″ x 6-3/16″
• Outfeed Table Size – 14-1/4 x 8-3/16″
• Stock Width – 3/4″ – 6″
• Minimum Stock Length – 10″
• Minimum Stock Thickness – 1/2″
• Maximum Depth of Cut – 1/8″
• Cutterhead speed – 12,000 rpm
• 2-sided Knife Insert Size – 14.2 x 14.2 x 2mm (0.56″ x 0.56″ x 0.077″)
• Knife inserts – 12 in 6 rows
• Cutterhead diameter – 2″

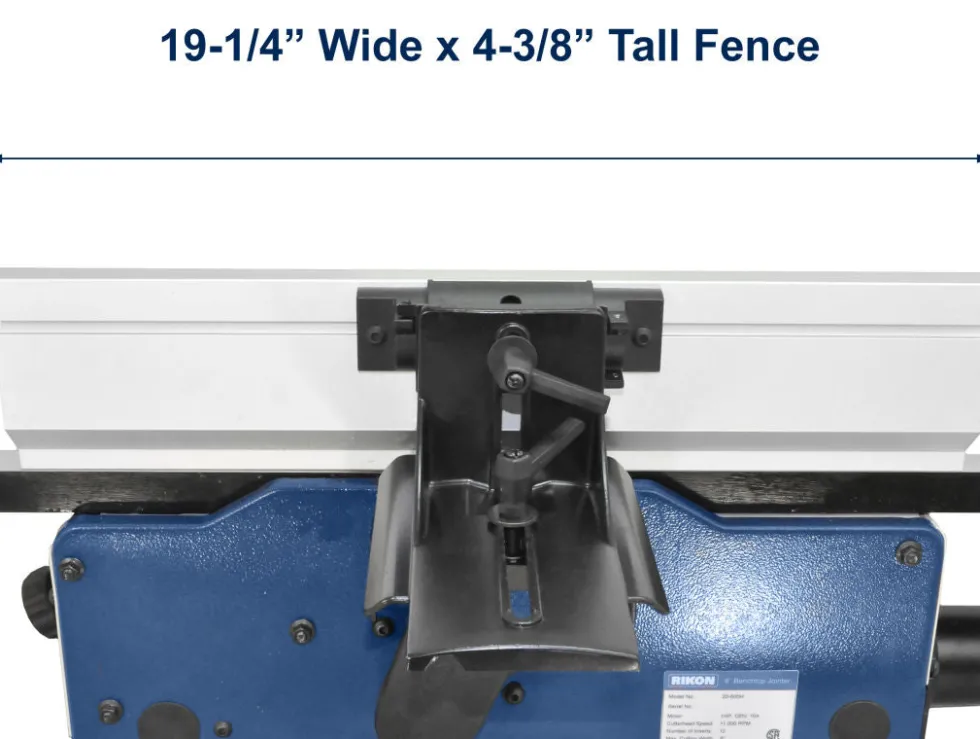

• Fence size – 19-3/4″ x 4-3/8″
• Fence Tilt – 90-135°
• Dust Port – 4″ (4″ to 2-1/2″ & 2-1/4″ adapter included)
• Minimum Dust Collection airflow – 100 cfm
• No-load Noise level at 3ft – <100dB
• Overall dimensions -51-1/2″ long x 17-1/2″ wide x 13″ high (with extensions out)
• Base Size – 19″ x 9-3/8″
• Net Weight – 39 lbs
• Shipping Carton – 31-1/4″ x 12-1/2″ x 11-1/8″; 42 lbs
• Five Year Warranty

Includes

• 12 2-sided HSS Inserts (installed)
• 4″ to 2-1/2″ & 2-1/4″ dust port adapter
• Manual
• Jointer Push Blocks – 2
• Hex Wrenches – 2.5mm & 4mm
• T-Wrench – T25 Torx

Additional Information

Rikon 20-600HSP Benchtop Jointer Manual
