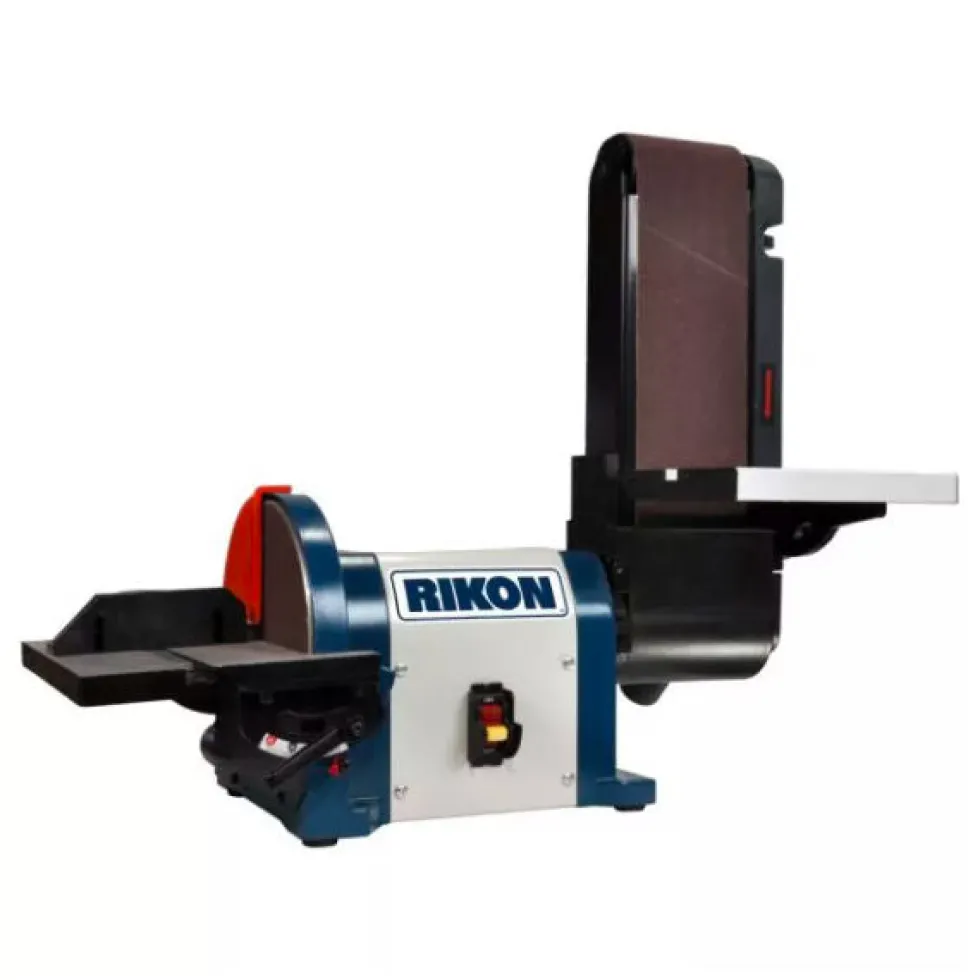

Rikon 4 inch x 36 inch Belt – 8 inch Disc Sander 50-114

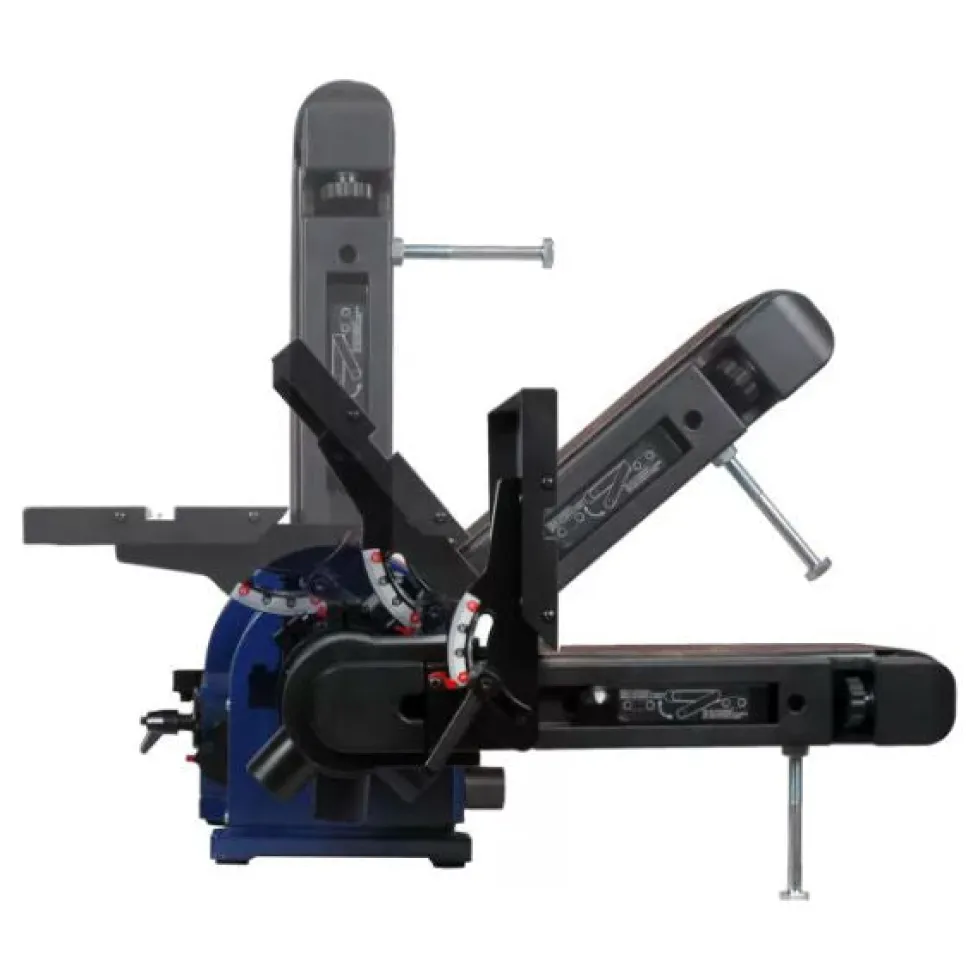

The Rikon 50-114 Belt-Disc Sander is a powerful machine that features a direct drive power system driving both the disc and belt. The sanding speeds eat through wood effortlessly, while still giving the user fine control of shaping and finishing projects. Belt frame adjusts in any position from horizontal to vertical to meet your sanding needs.

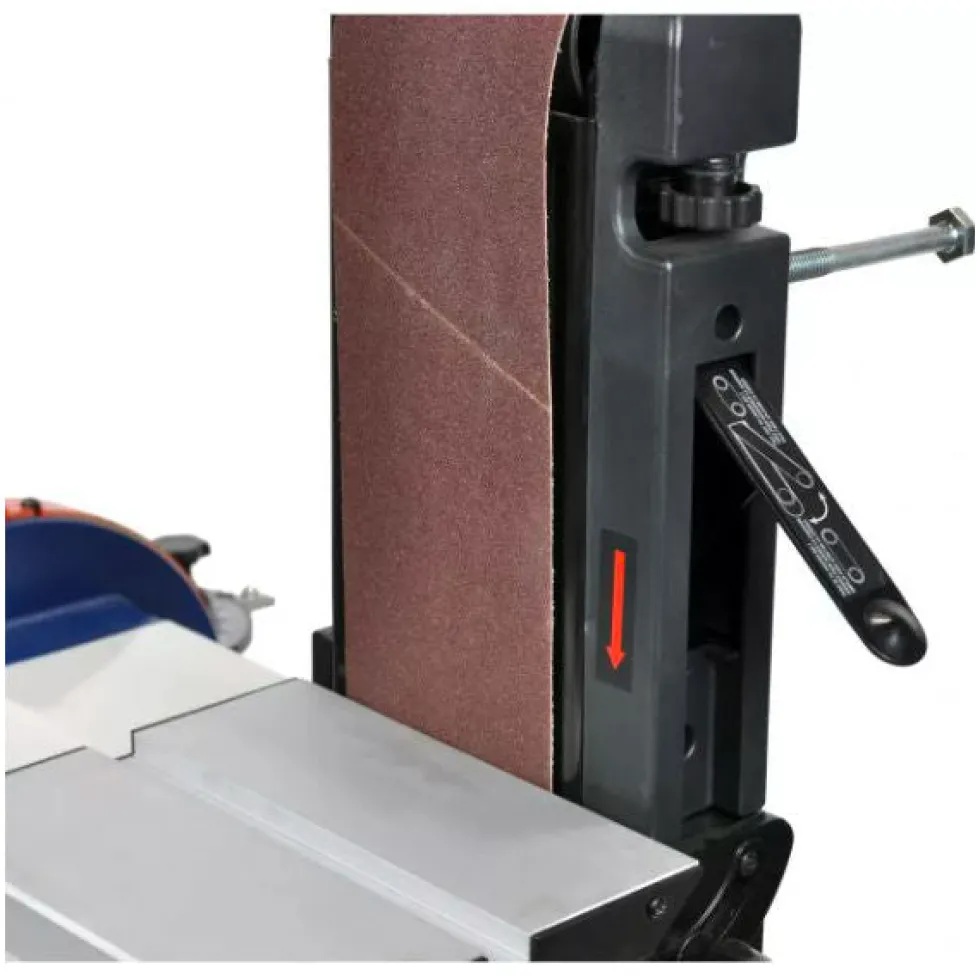

Both the Disc and Belts support fences tilt 0-45 degrees for angled work. The machine features precision die-cast metal base, quick release belt lever, and large 8 diameter sanding disc, and includes 2 tilting tables for sanding fine, detail and angled work.

Includes one 80 grit disc and one 80 grit belt.

Specifications

• Motor – 3/4 HP, 120v, 60hz, 5a

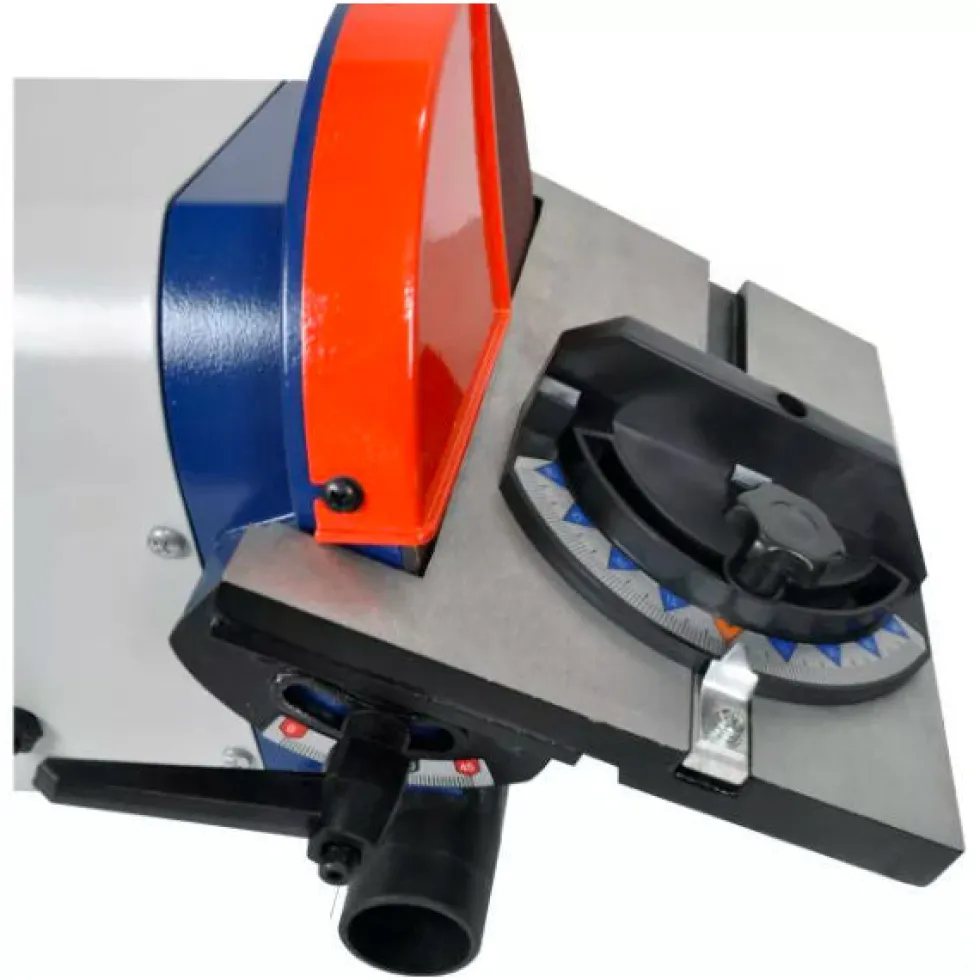

• Disc Table – 10-3/8″ x 5-7/8″
• Belt Table – 7-1/2″ x 6-1/4″
• Miter Gauge Slot (both tables) – 5/8″ x 5/16″
• Table Tilt (both tables) – 0° to 45°
• Belt Speed – 2165 SFPM
• Disc Speed – 3450 RPM

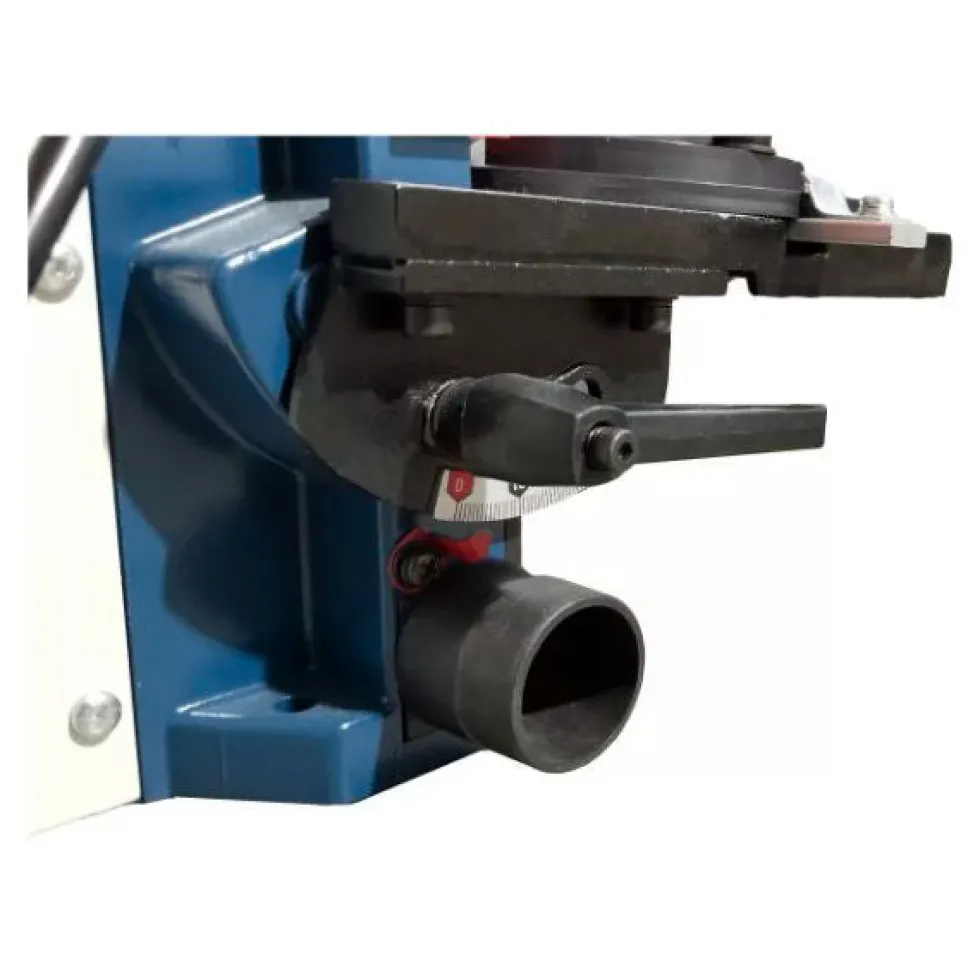

• Dust Ports(two) – 1-1/2″
• Dimensions – 25-1/4″ wide x 20″ high x 14″ deep
• Base Dimensions – 10-7/8″ x 8-5/8″
• Weight – 32.4 lbs

Includes

• 50-114 Sander
• Miter Gauge
• Two 1-1/2″ x 1/3/8″ dust port adapters
• One 8″ adhesive disc
• One 4″ x 36″ belt
• Five Year Warranty

Additional Information

Rikon 50-114 4″x 36″ Belt – 6″ Disc Sander User Manual
