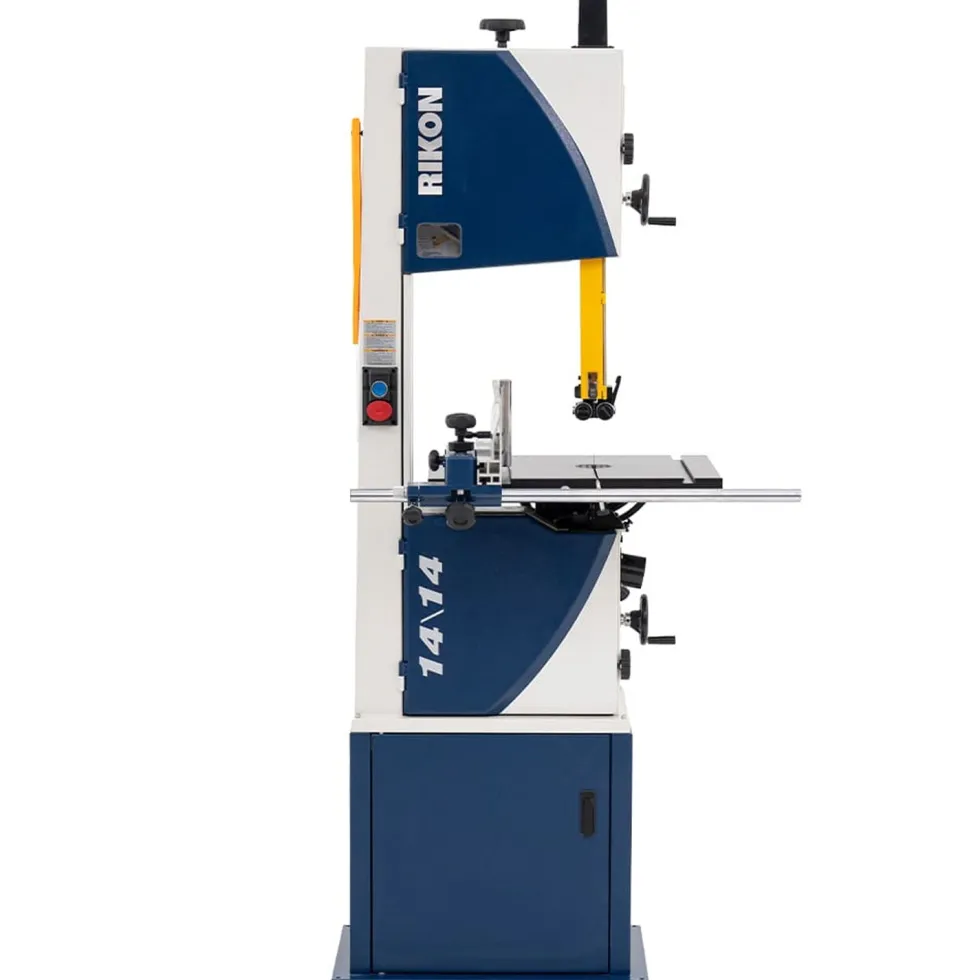

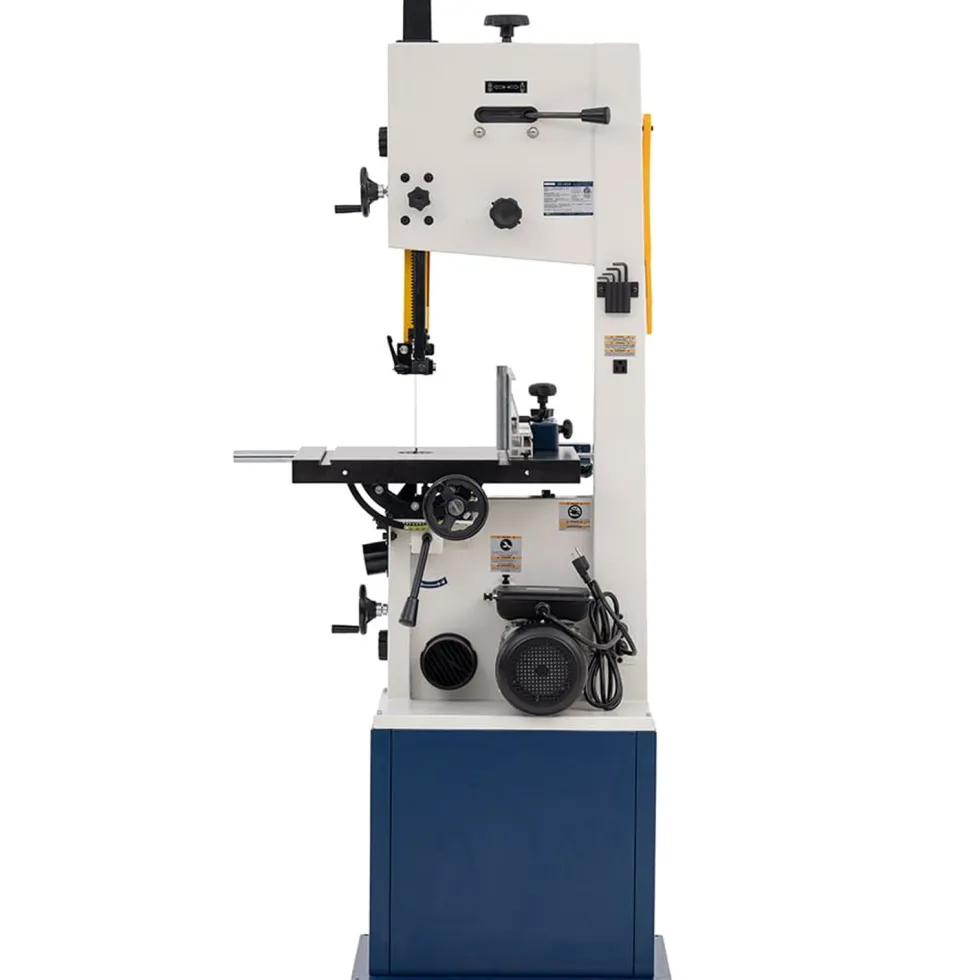

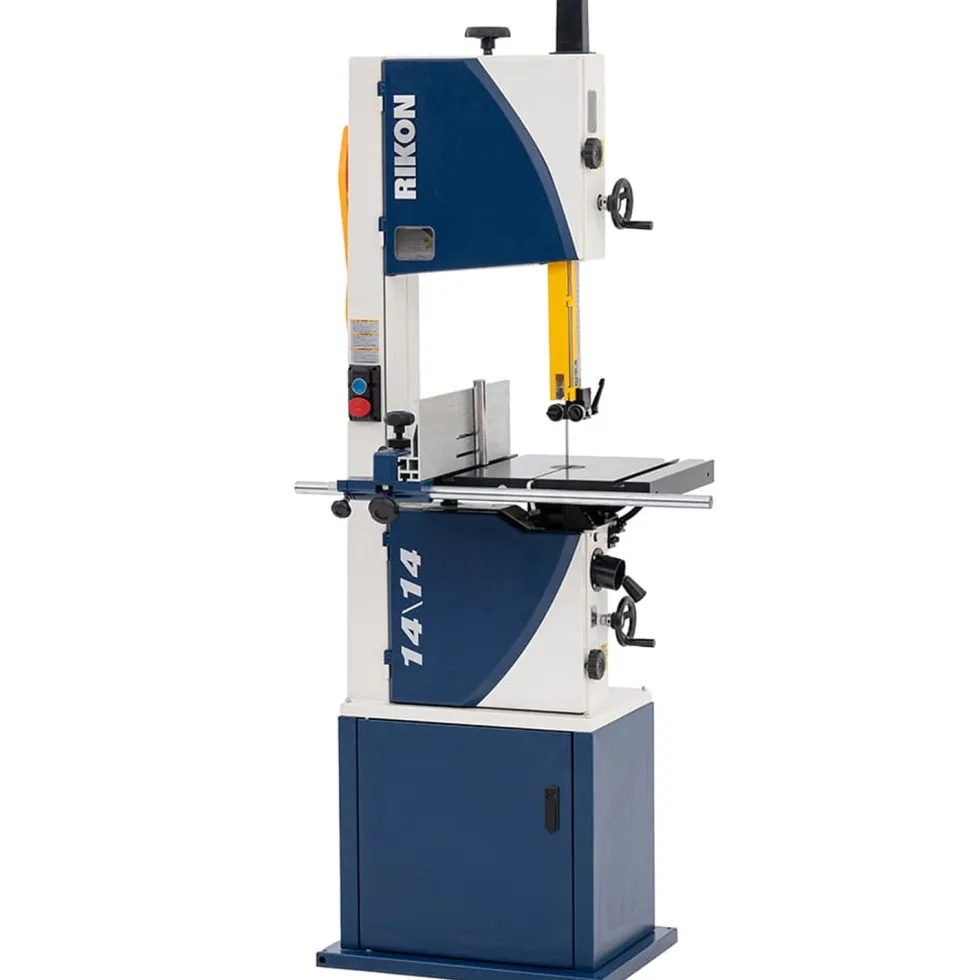

Rikon 14 inch Deluxe Bandsaw 10-1414

Freight Calculator

The Rikon 14″ Deluxe Bandsaw is a great choice for any woodworker. Furniture makers will like the increased 14″ resawing capacity. Woodturners will like the stability the large table provides when roughing bowl blanks. All woodworkers will benefit from several new features that improve cutting accuracy & and allow more flexibility and options with table set-up, blade changes, tension adjustments and make your work easier, quicker and safer.

Powered by a 1-3/4 hp 115/230 volt motor, this unit comes ready to plug into a 115 volt outlet. An extremely sturdy steel frame includes an convenient storage cabinet with a fixed shelf. Large 1-3/8″ diameter side bearings provide guiding stability to the blade for greater cutting accuracy and reduced friction, extending blade life. The enhanced Blade Tension System with Quick-release lever quickly lowers the upper wheel, reducing blade tension for quick blade changes. It also lets you easily release blade tension at the end of each day’s use, easing stress to the blade and the bandsaw’s components. The large cast iron table has a new SP coating to reduce friction and protect against corrosion. The table tilts for beveled cuts and has a greatly improved Quick Adjust Drift 6” Tall Fence System with Micro-Adustment. Additional details like the blade guard with a magnetic door, integrated wheel dust brush, dust ports, and faster speed options are just the frosting on the cake! We recommend this excellent bandsaw, and in case you still have any doubts about adding it to your shop – Rikon stands behind it with a LIFETIME WARRANTY!

Standout Features for the Model 10-1414

• NEW Lifetime manufacturer’s warranty
• NEW 14” Resaw capacity
• NEW SP Coated Table

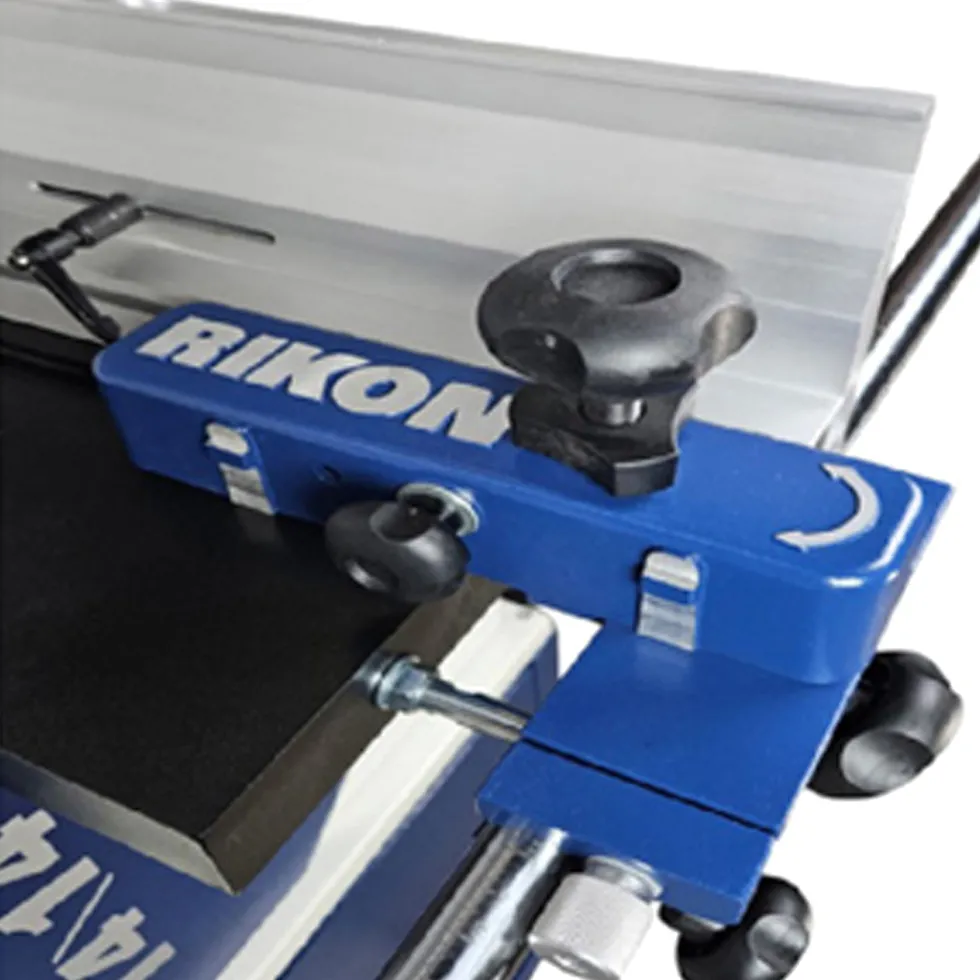

• NEW Quick Adjust Drift Fence
• NEW Blade Tension System
• NEW Blade Guard with Magnetic Door
• NEW 2-1/2” & 4” Dust Ports
• FASTER SPEEDS – 1,476 / 3,280 ft/min
• UPDATED Storage Cabinet
• Spring-loaded, tool-less blade guides

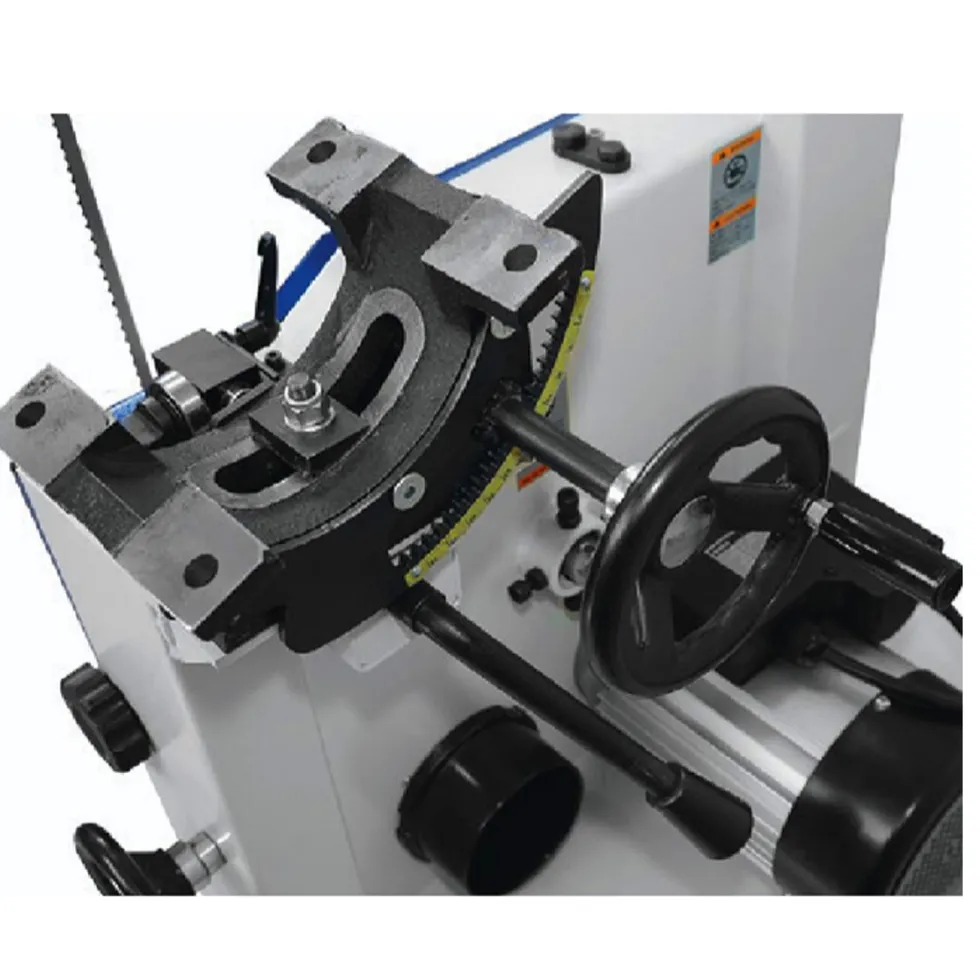

• Quick-lock table trunnion
• Quick-adjust fence system with 6″ tall rip fence
• Lower wheel dust cleaning brush
• Cabinet stand with door gives an ample 18″ x 14″ x 15-1/2″ storage area with fixed shelf
• 40-1/2″ floor to table height lets you work comfortably

Specifications

• Motor: 1-3/4 hp TEFC; 115/230 V; 14/7 A
• Cutting Capacity: 13-5/8″ Wide x 14″ High
• Cast Iron Table with synthetic polymer coating: 21-1/2″ wide by 15-3/4″ deep

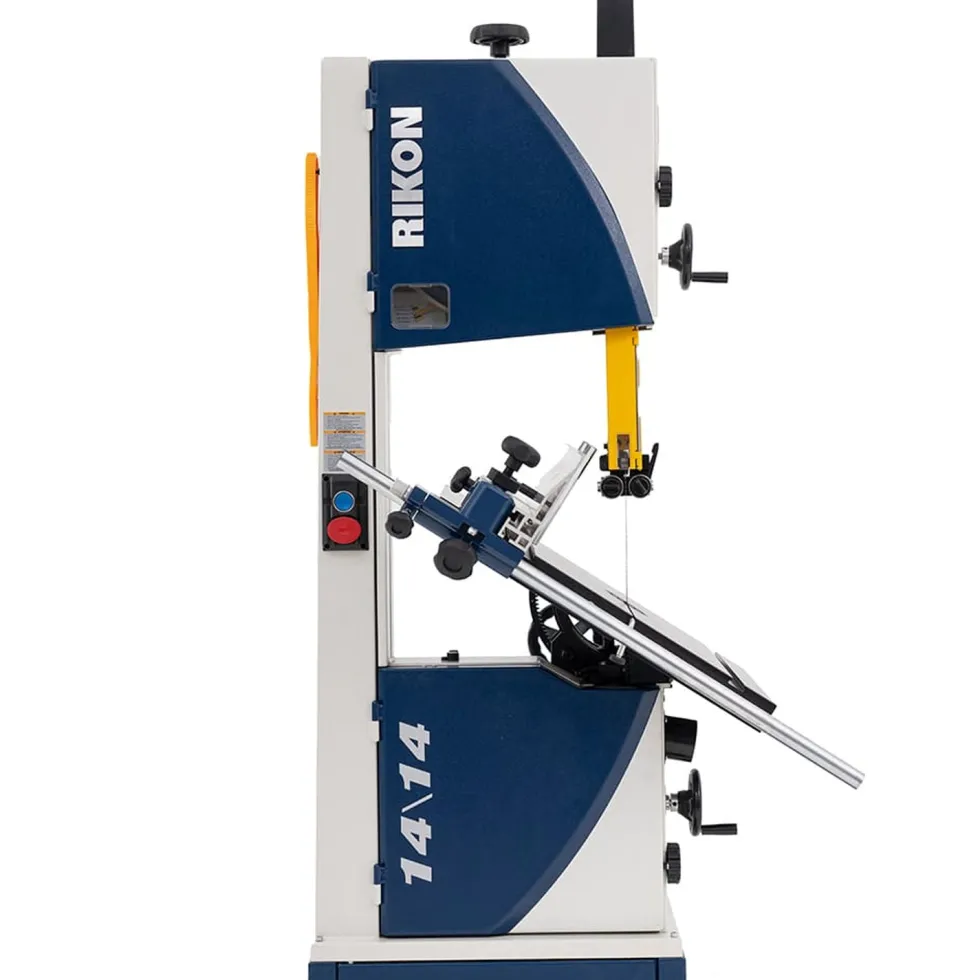

• Table tilt: up to 45° right or 7° left
• Dust ports: 4″ and 2-1/2″

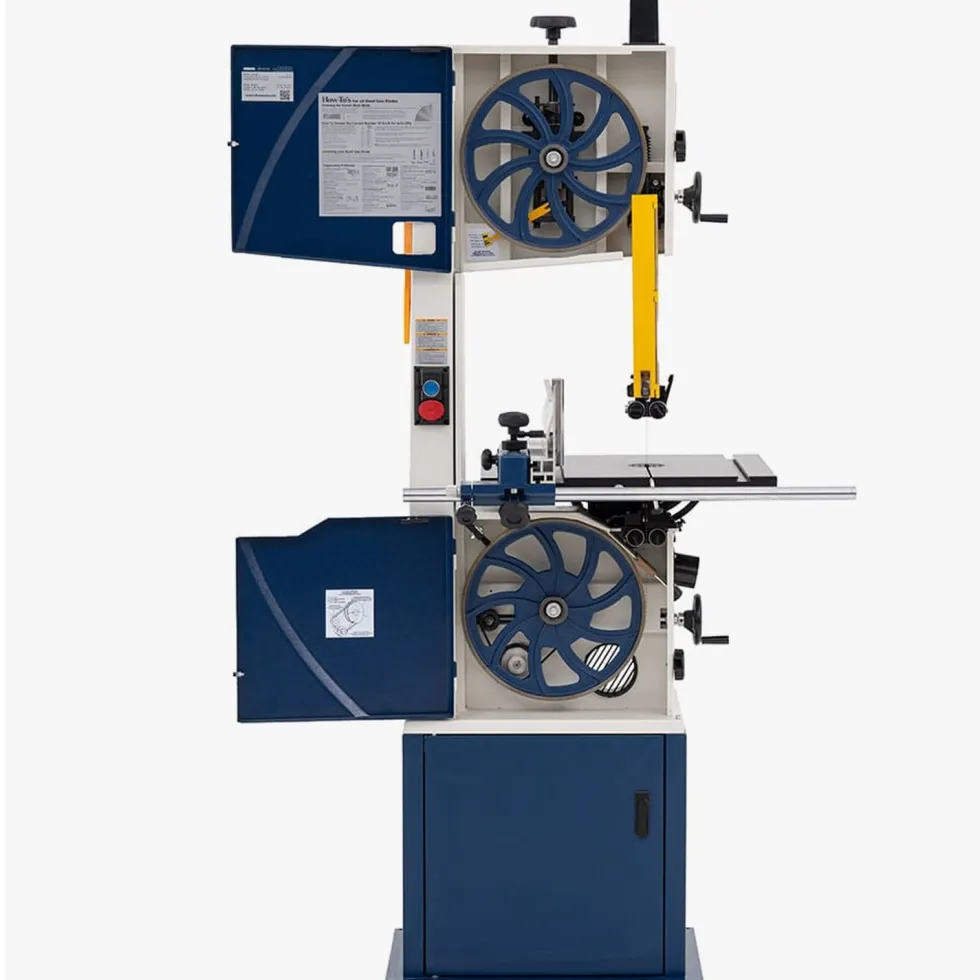

• Cast Iron Wheels: 14″ diameter
• Blade Length: 111″
• Blade Width: 3/16″ – 3/4″
• Comes with 5/8″ 4 tpi blade installed
• Cutting Speeds: 1476 / 3280 fpm
• Overalll size: 33-3/4″ wide x 25″ deep x 76″ high
• Weight: 290 lb
• Footprint: 24″ wide x 17-5/8″ deep
• Lifetime Manufacturer’s Warranty

Additional Information

Rikon 14″ Deluxe Bandsaw User Manual – Model 10-1414

Rikon 14″ Deluxe Bandsaw Product Sheet – Model 10-1414
