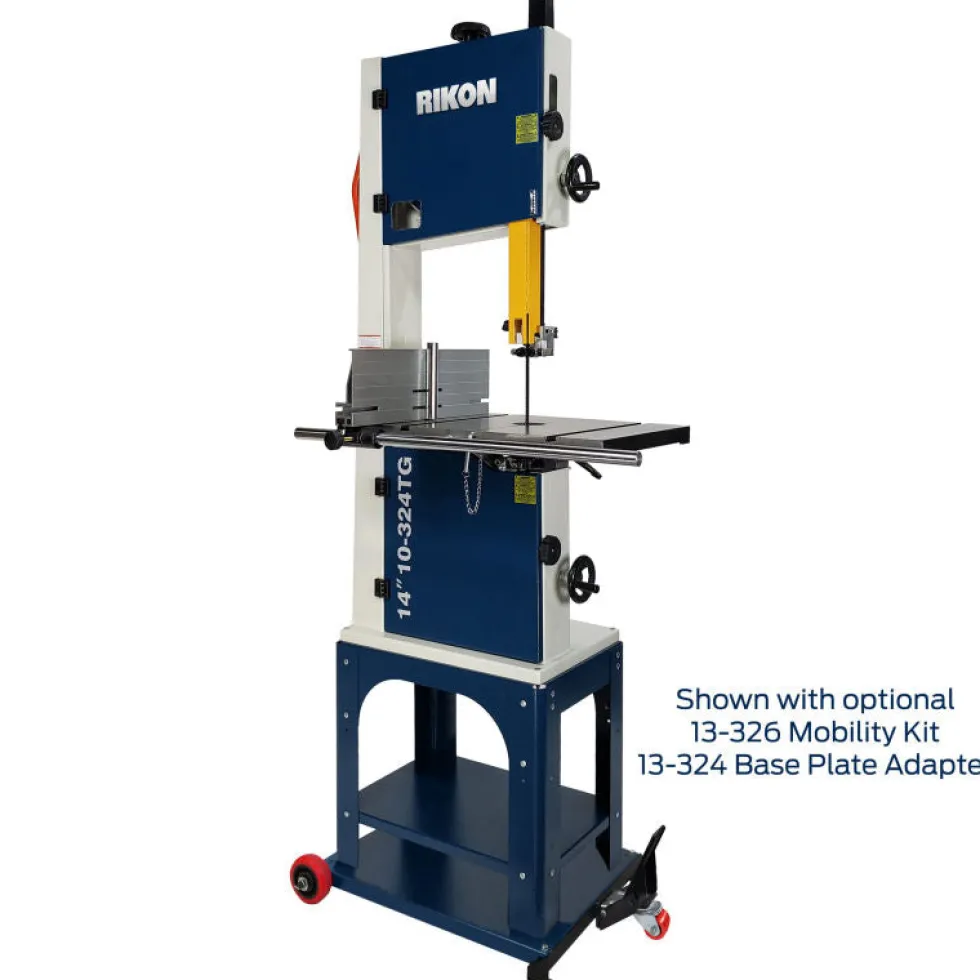

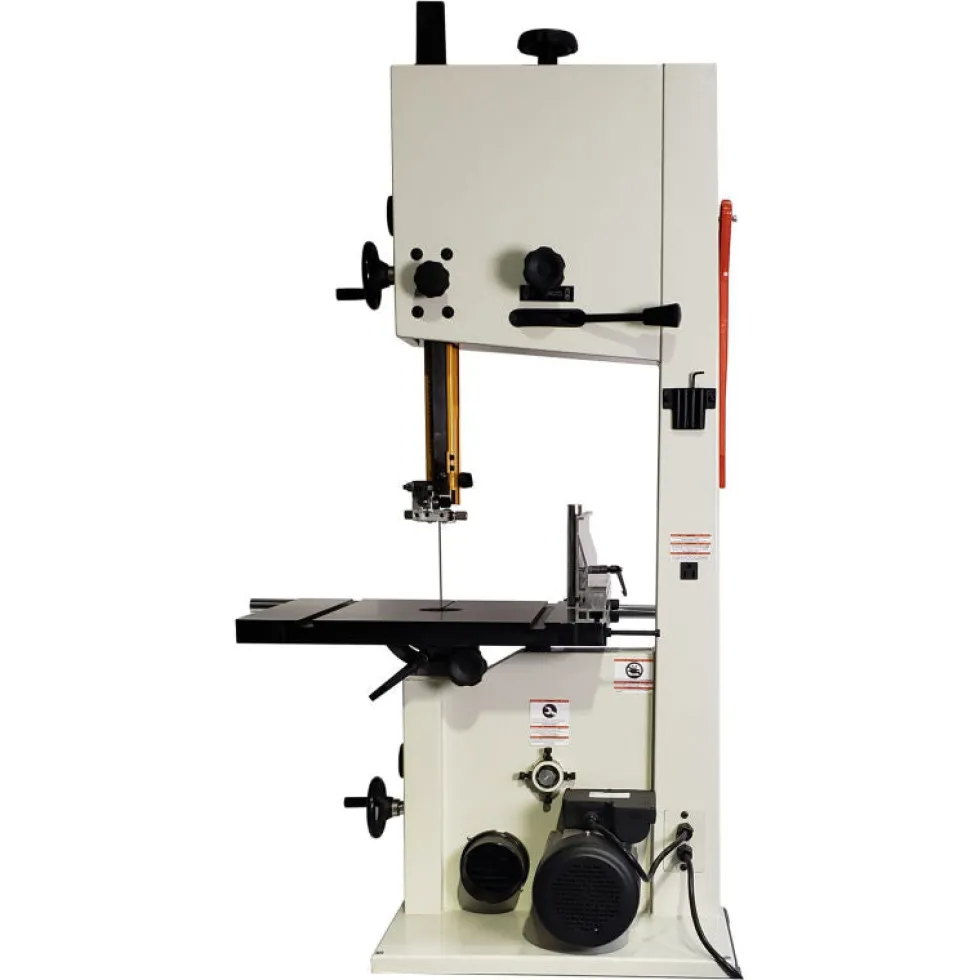

Rikon 14 inch Bandsaw 10-324TG

Freight Calculator

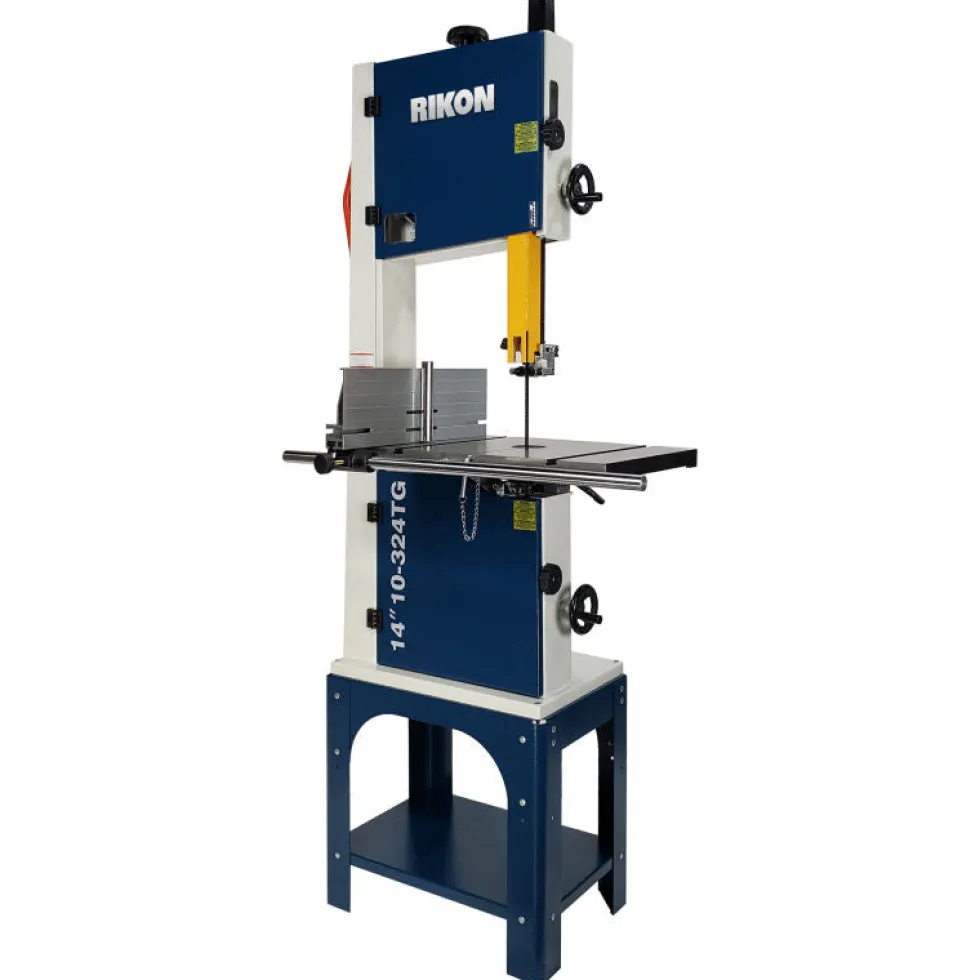

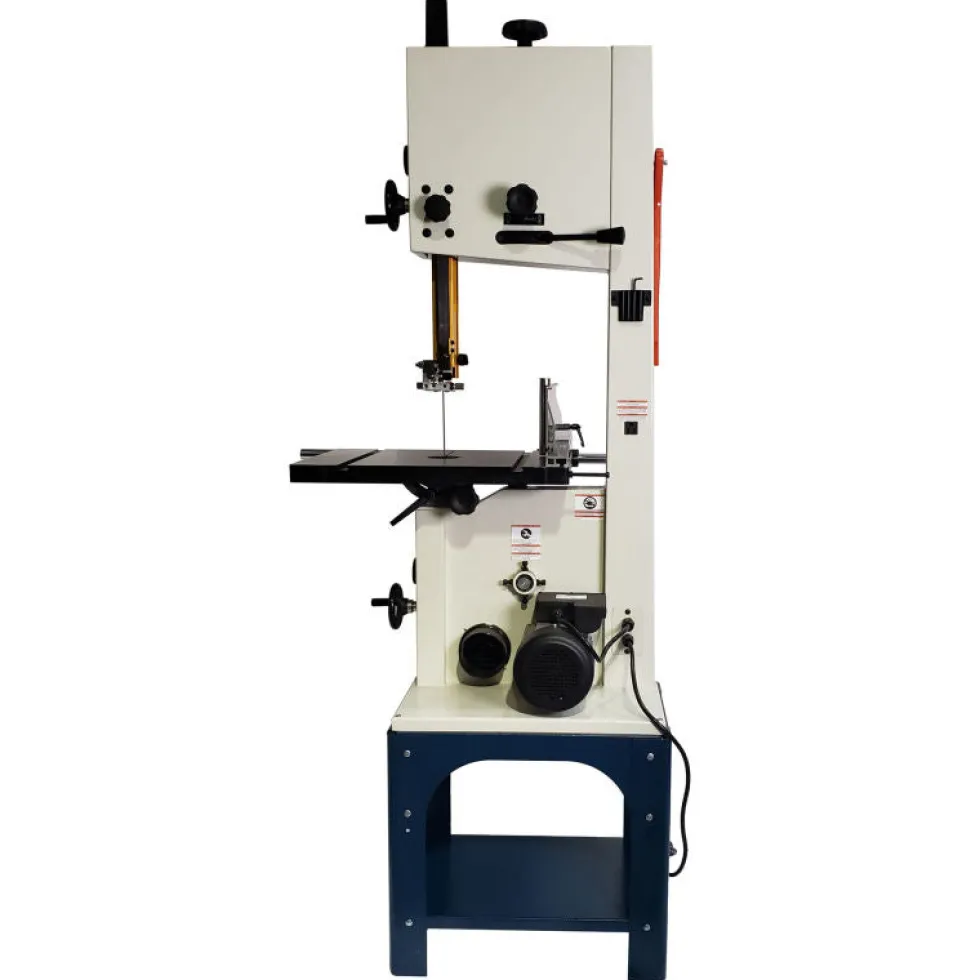

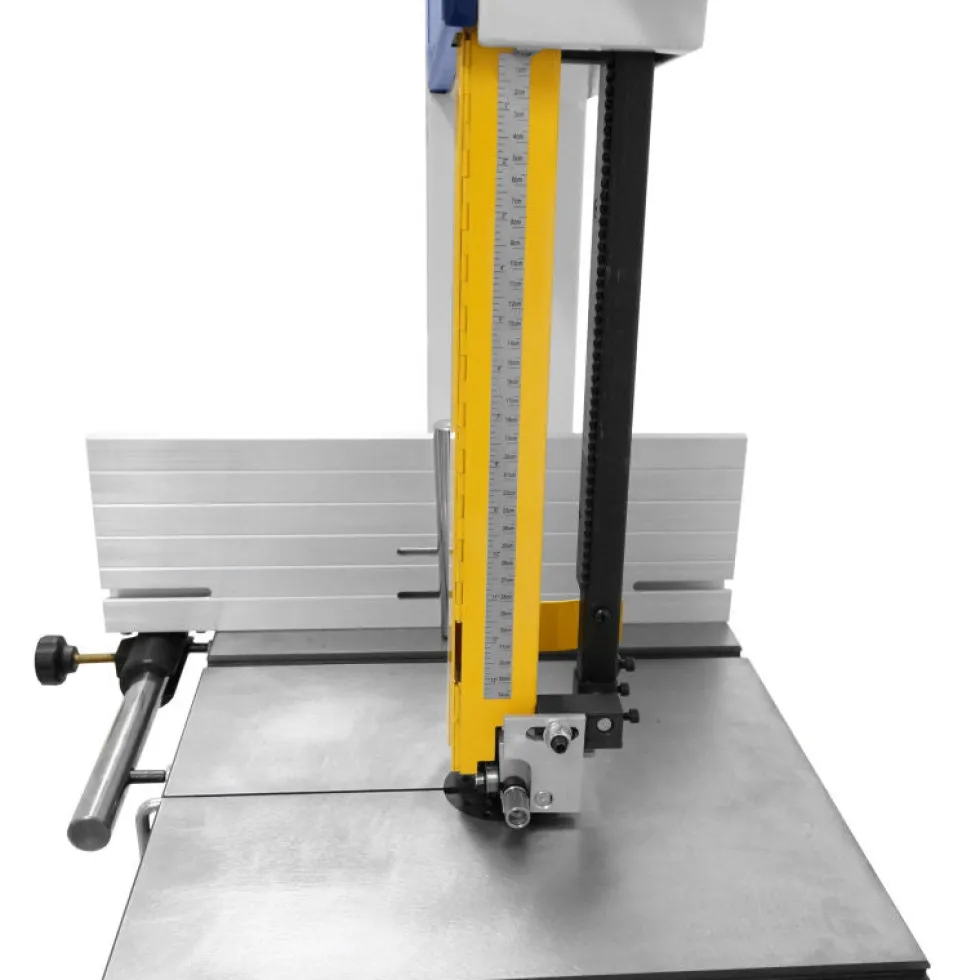

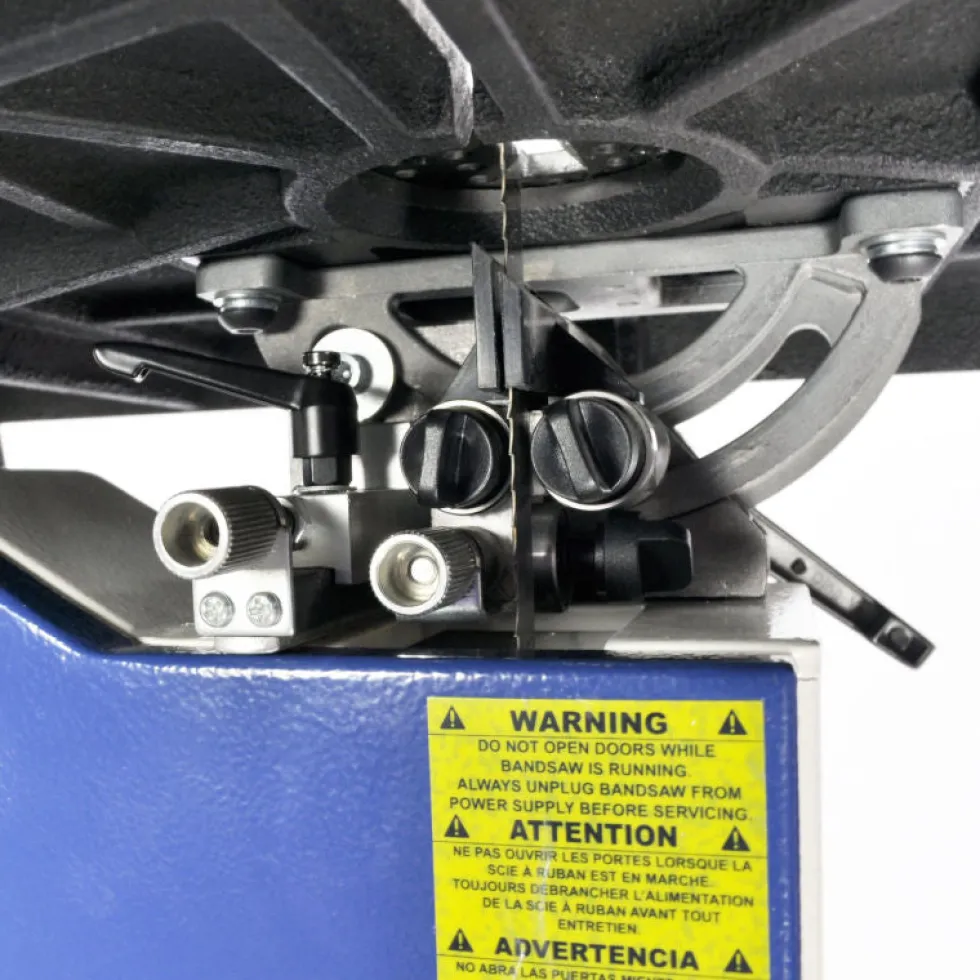

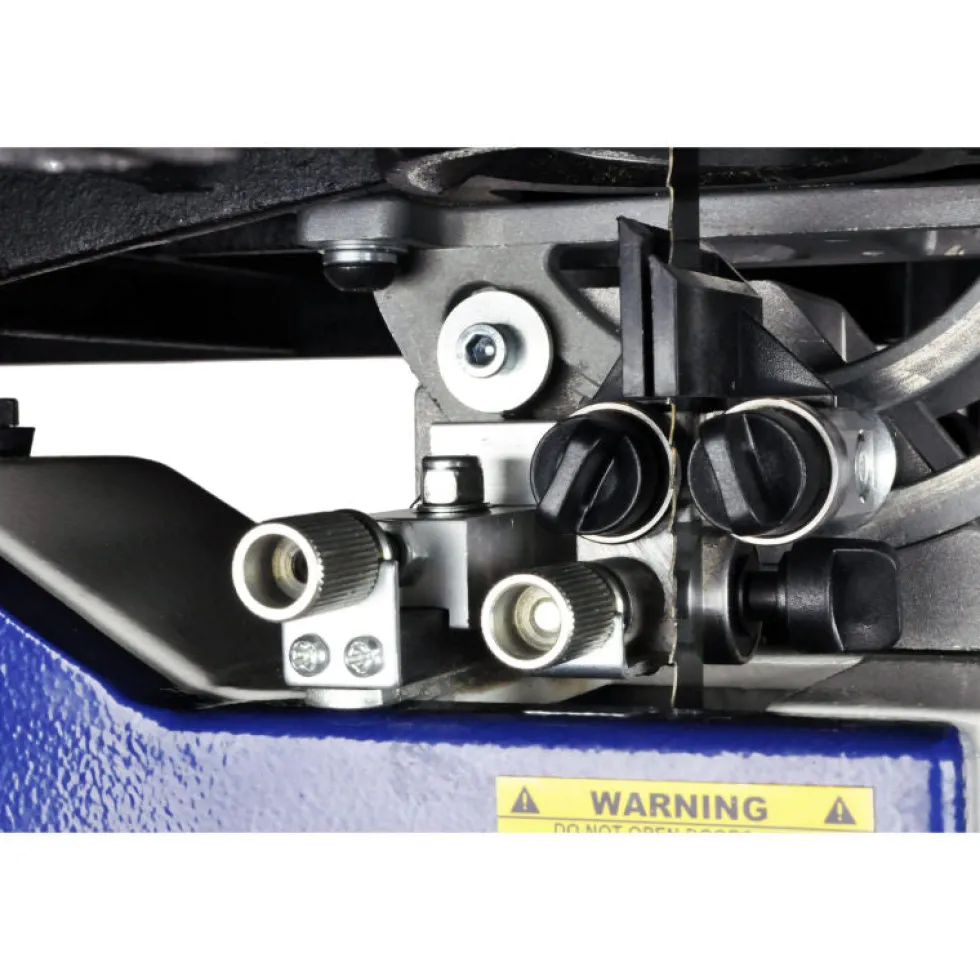

The Rikon 10-324TG is a full-featured 14″ Bandsaw available at a popular price. It features tool-less blade guides for easy adjustment.

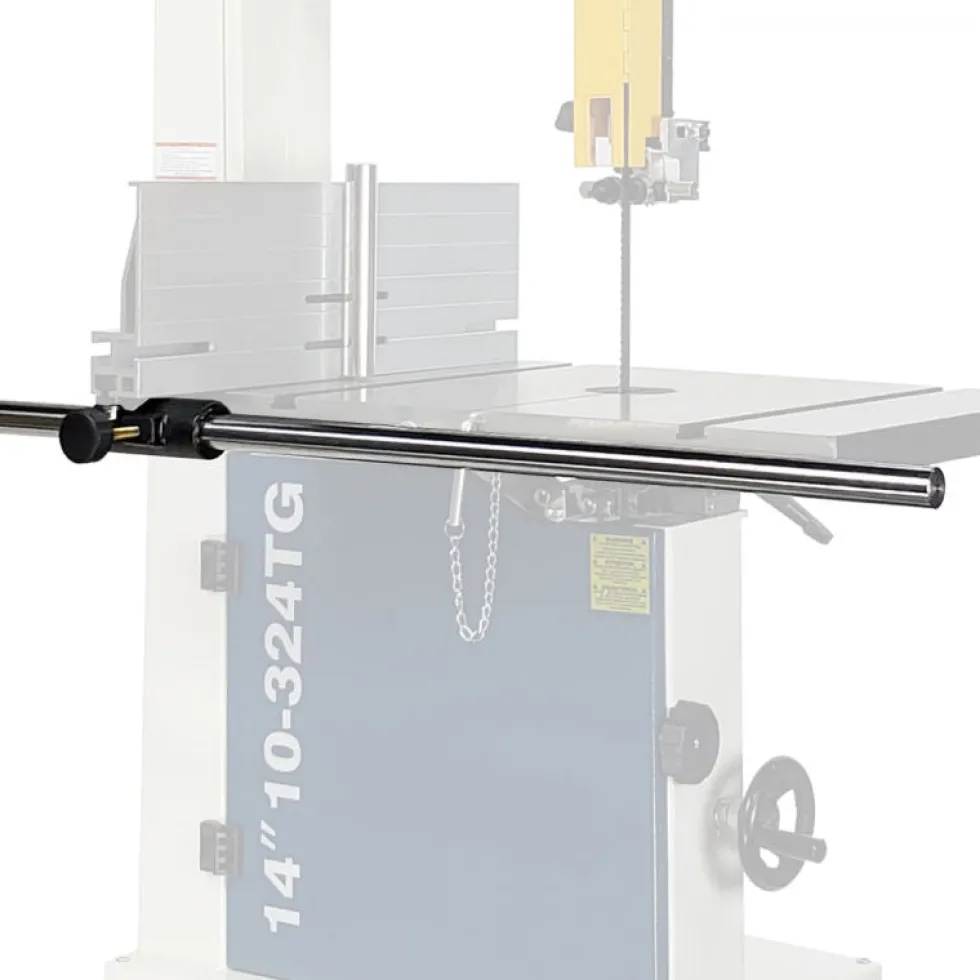

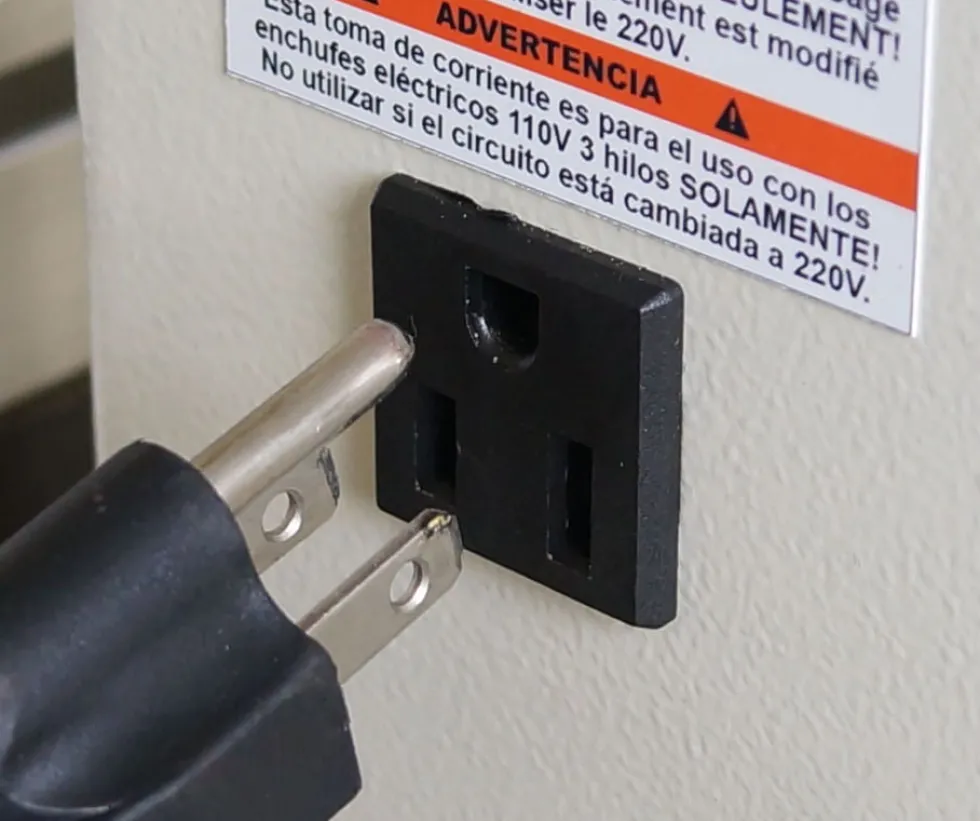

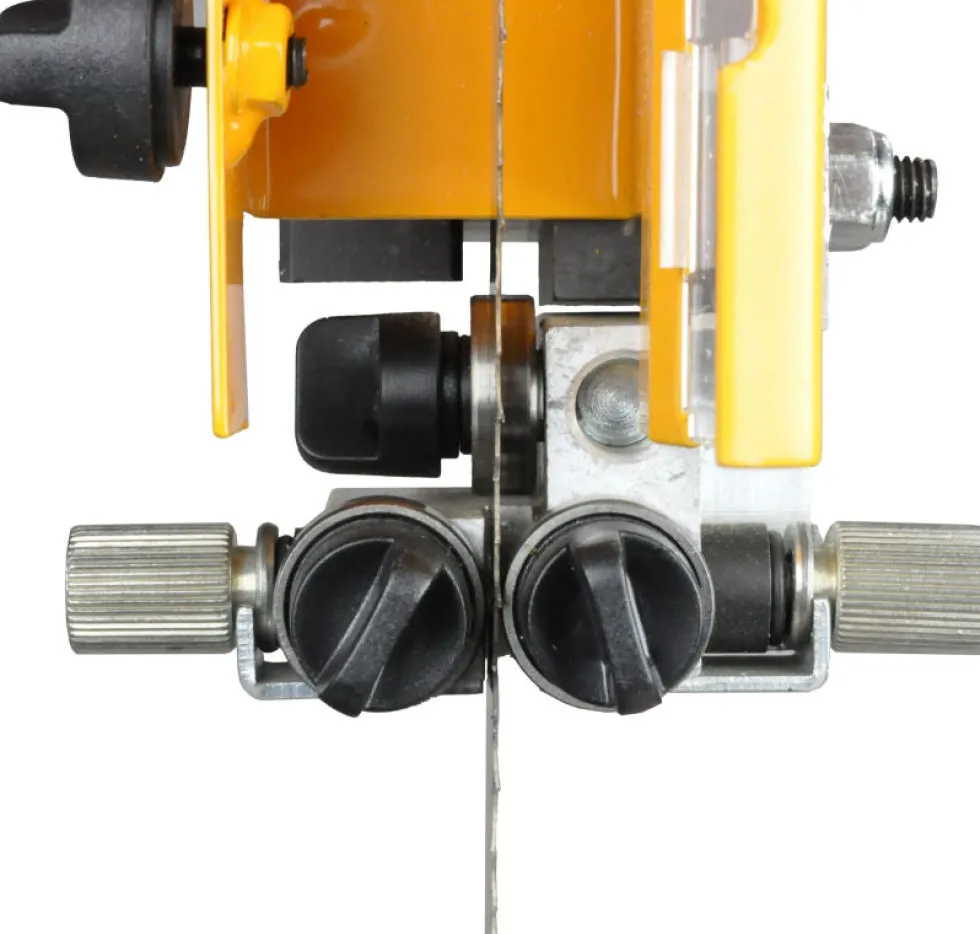

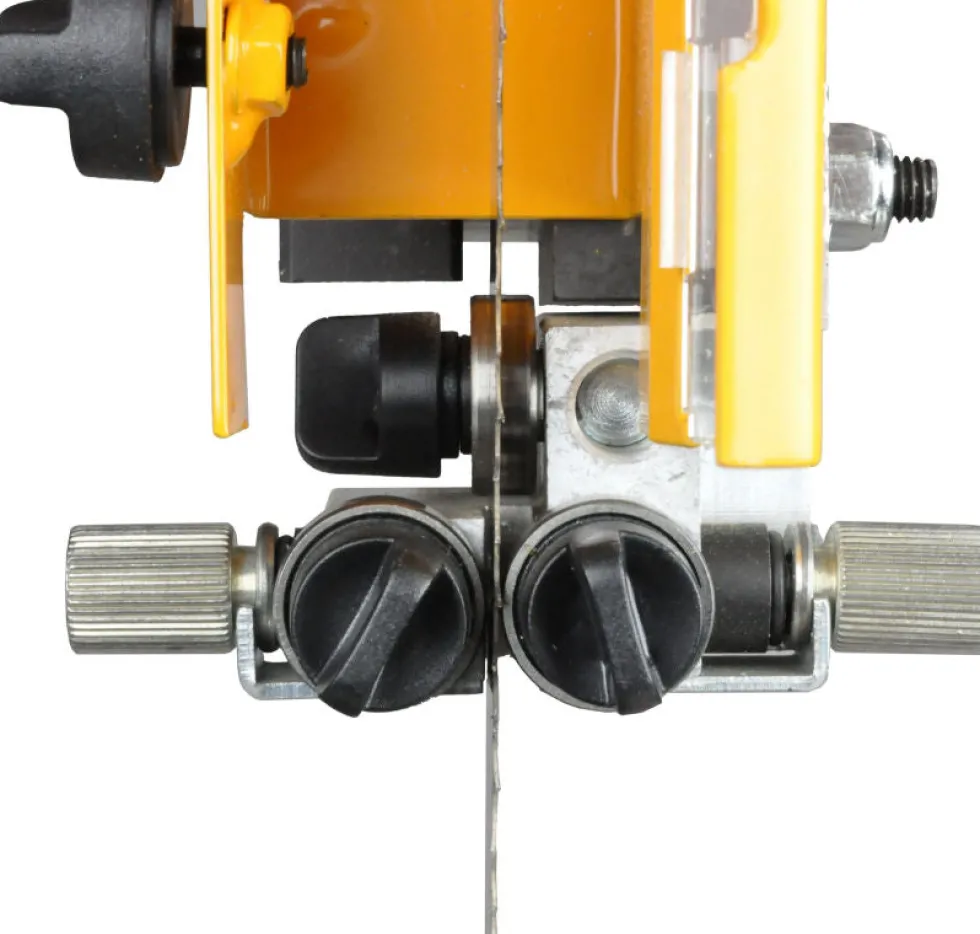

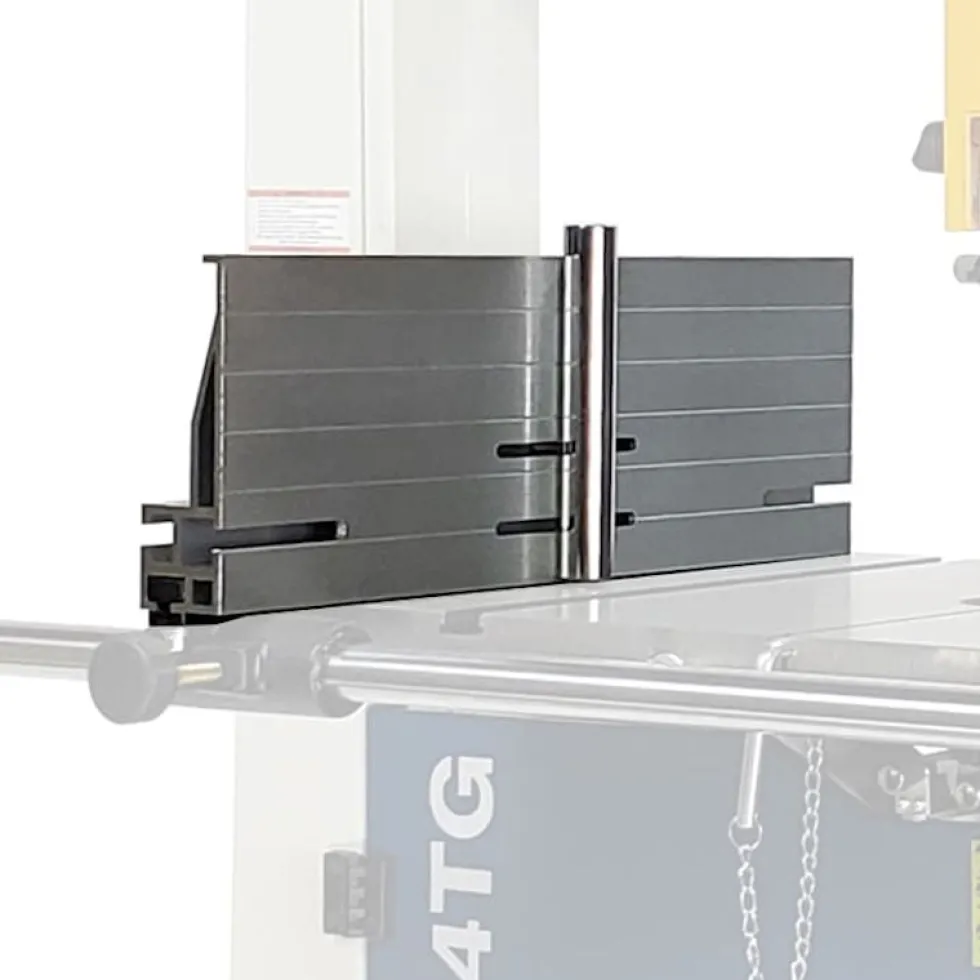

Powered by a 1-1/2 hp 115/230 V motor, this unit comes ready to plug into a 115 volt outlet. An extremely sturdy steel frame maintains accuracy. Large 1-3/8″ diameter side bearings provide guiding stability to the blade for greater cutting accuracy and reduced friction for longer blade life. A Quick-release lever quickly lowers the upper wheel, reducing blade tension for quick blade changes. It also lets you release blade tension at the end of each day’s use, easing stress to the blade and the bandsaw’s components. The large cast iron table tilts for beveled cuts and includes a heavy rip fence with integral inch scale and resawing pivot guide.

Specifications

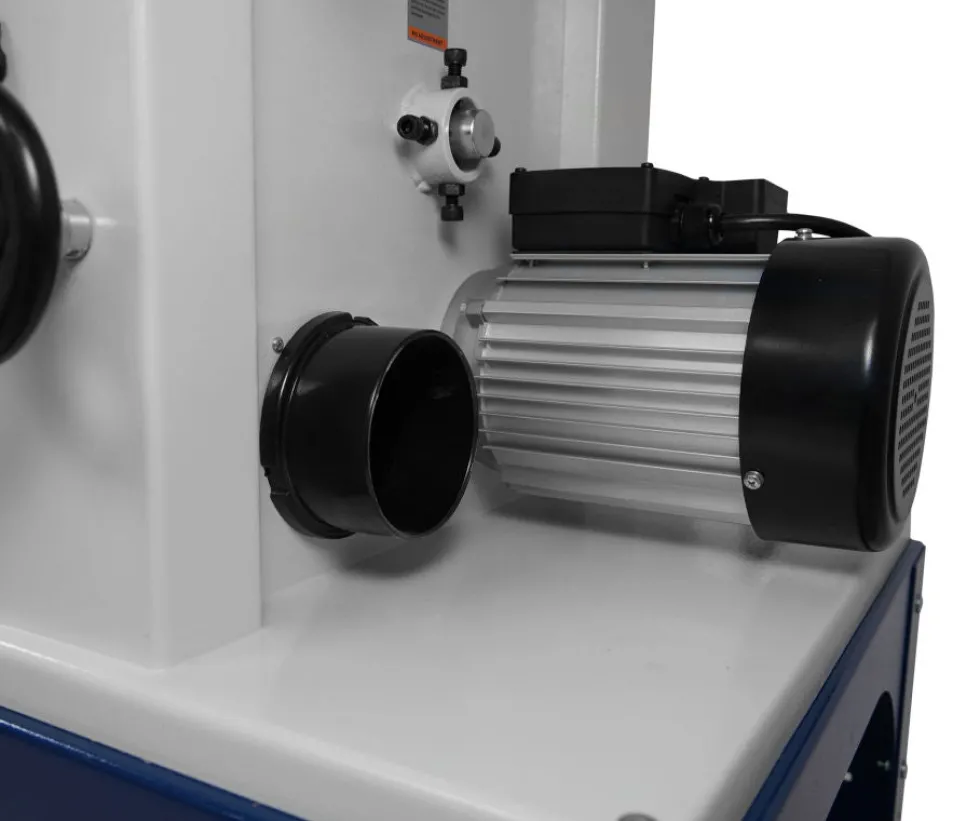

• Motor – 1-1/2 hp TEFC; 115/230 V; 14/7 A
• Cutting Capacity – 13-5/8″ Wide x 13″ High
• Cast Iron Table – 21-1/2″ wide by 15-3/4″ deep
• Table tilt – up to 45° right or 5° left
• Table Miter Gauge Slot – 3/4″ x 3/8″ (two)
• Table Height to floor – 39-1/2″
• Fence Size – 18-3/4″ x 1-3/4″ x 6″
• Dust port – 4″

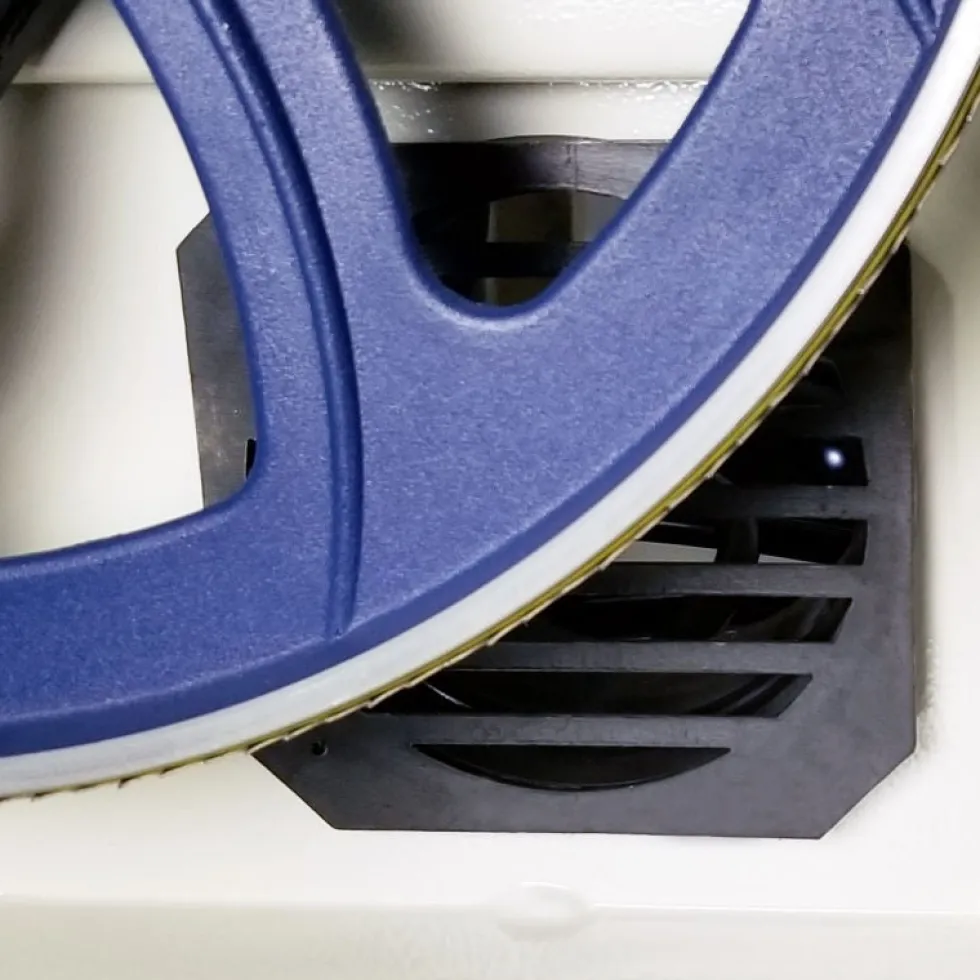

• Cast Aluminum Wheels – 14″ diameter
• Blade Length – 111″
• Blade Width – 3/16″ – 3/4″
• Comes with 5/8″ 4 tpi blade installed
• Cutting Speeds – 1445 / 2950 fpm
• Overall size – 30″ wide x 25″ deep x 74-1/2″ high
• Base size – 21-5/8″ x 14-3/4″
• Weight – 218 lb
• Footprint – 24″ wide x 17-1/2″ deep
• FIVE-YEAR manufacturer’s warranty
