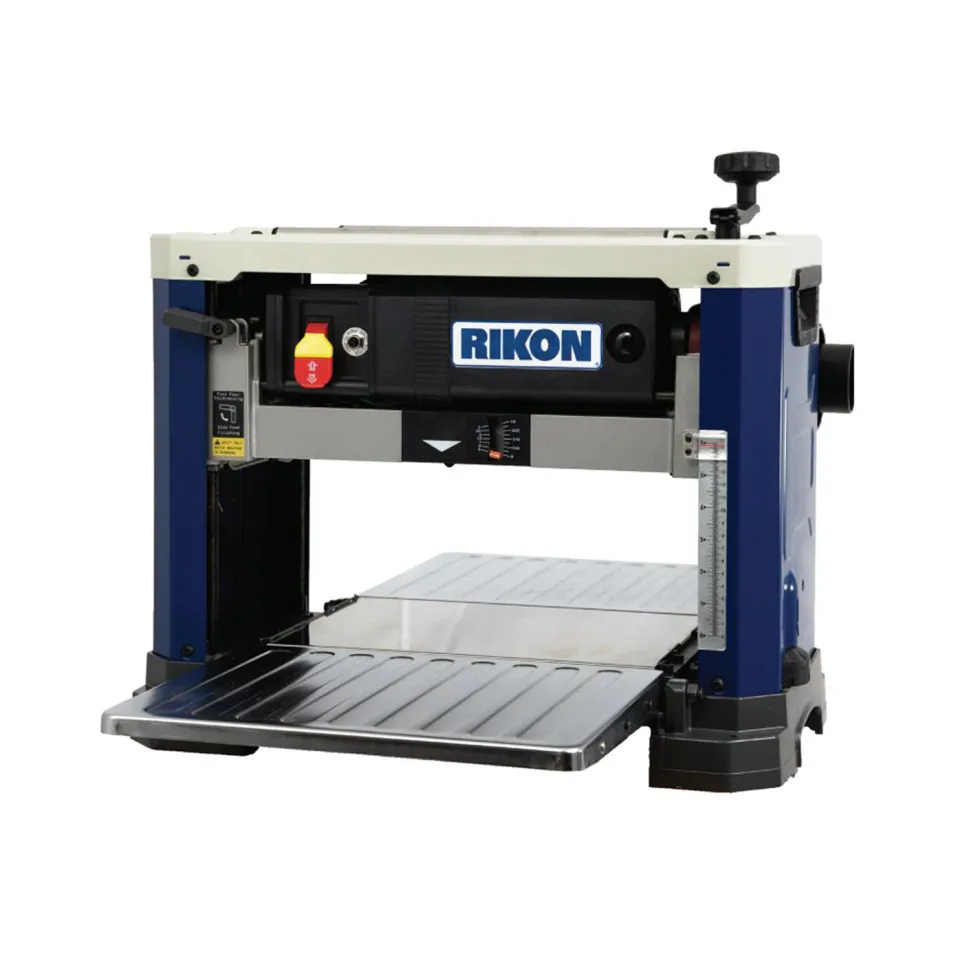

Rikon 13 inch Portable Planer with Helical-style Head  25-135H

13″ PORTABLE PLANER 25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.

Specifications

• FIVE year Warranty
• 15 A, 120 V, 60 Hz Motor
• Toggle switch with Removable Key
• 13-1/16″ x 9-1/4″ Infeed and Outfeed tables
• 2-1/2 inch or 4 inch dust chute
• Polyurethane Feed Rollers
• 13 inch maximum stock width
• 6 inch maximum stock thickness
• 3/16 inch minimum stock thickness
• 1/8 inch maximum depth of cut
• 26 2-sided HSS indexable inserts installed in the cutterhead
• 10,000 rpm Cutterhead Speed
• 2 inch Diameter Cutterhead
• 26 fpm Feed Rate
• 32 cuts per inch
• Weighs 68 lb

Additional Information

Rikon 25-135H Planer User Manual

Rikon 25-135H Specification Sheet
