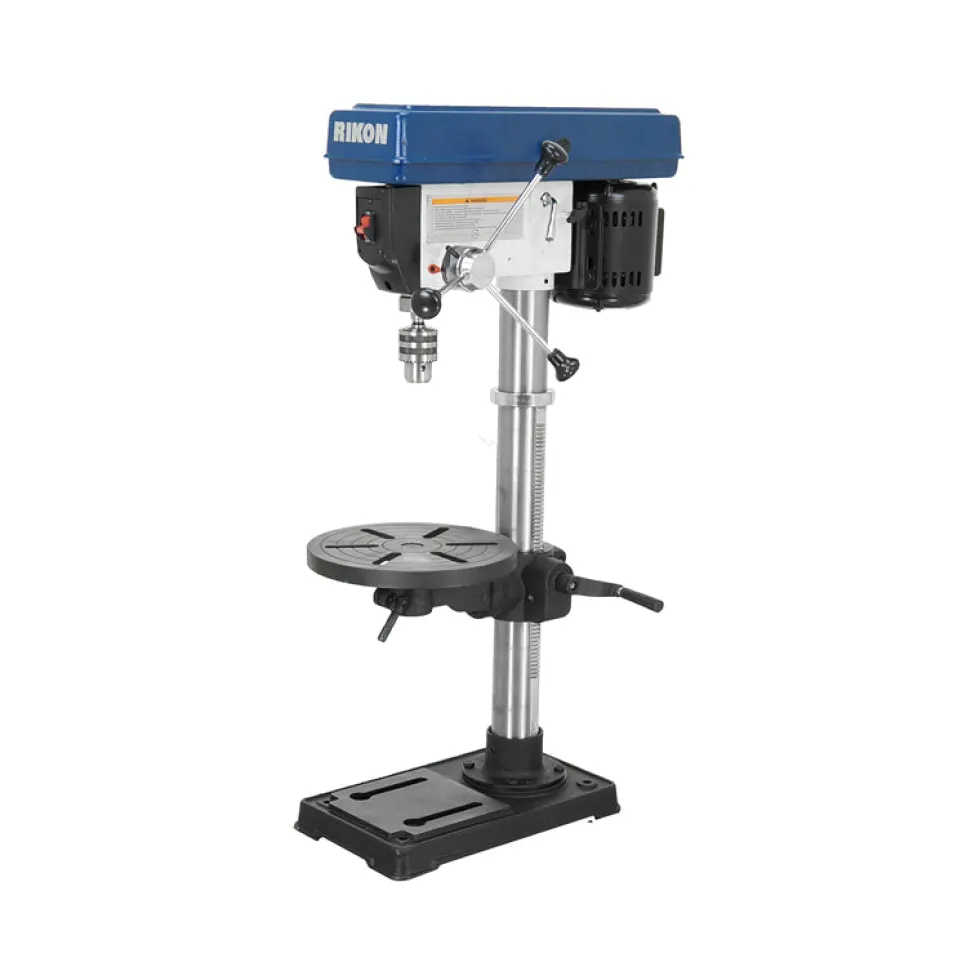

Rikon 13 inch Bench Drill Press

Rikon’s 13-Inch drill press offers power, efficiency and smooth operations in a compact durable package.It is an ideal bench top drill press for both the hobbyist and professional user.

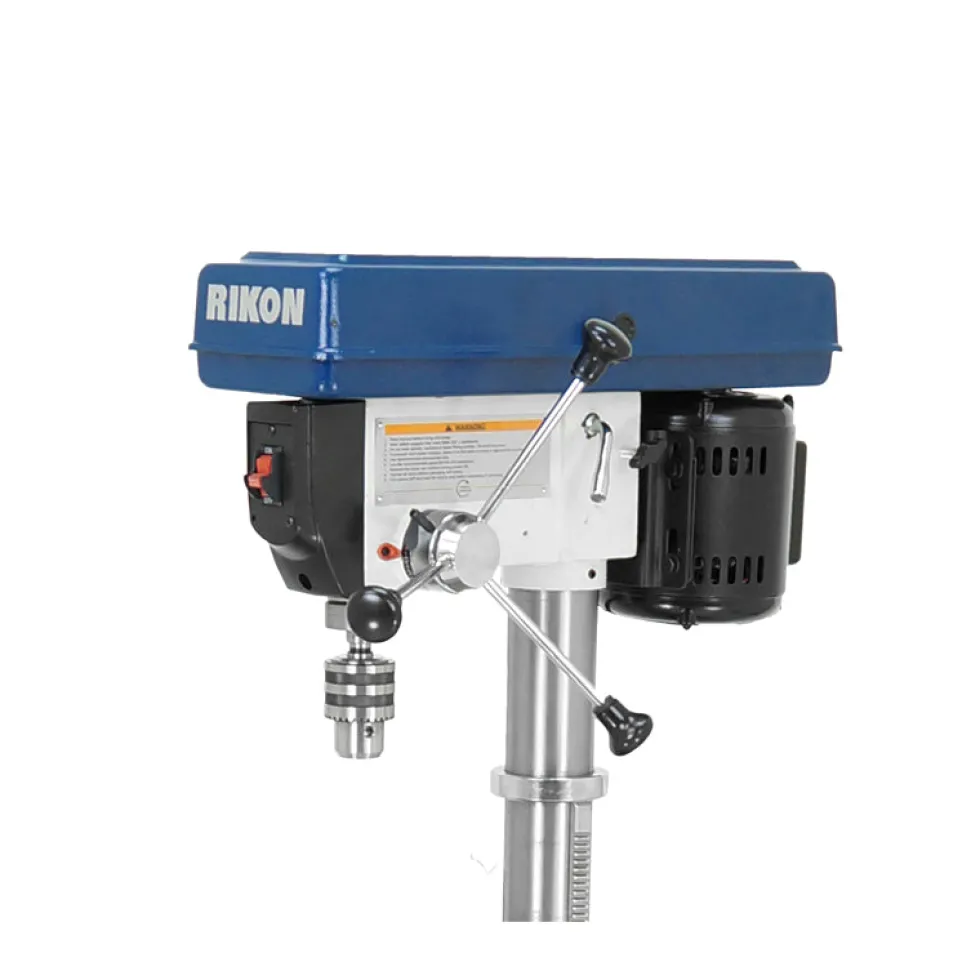

The 1/2-horsepower motor provides plenty of torque for whatever material you’re drilling.16 spindle speeds from 200 to 3,630 RPM cover the full range of drilling requirements. A clutch-driven depth stop lets you set the drill depth accurately for projects requiring repetitive drilling. A large cast iron feed handle that will not bend or loosen over time operation assures easy operation.

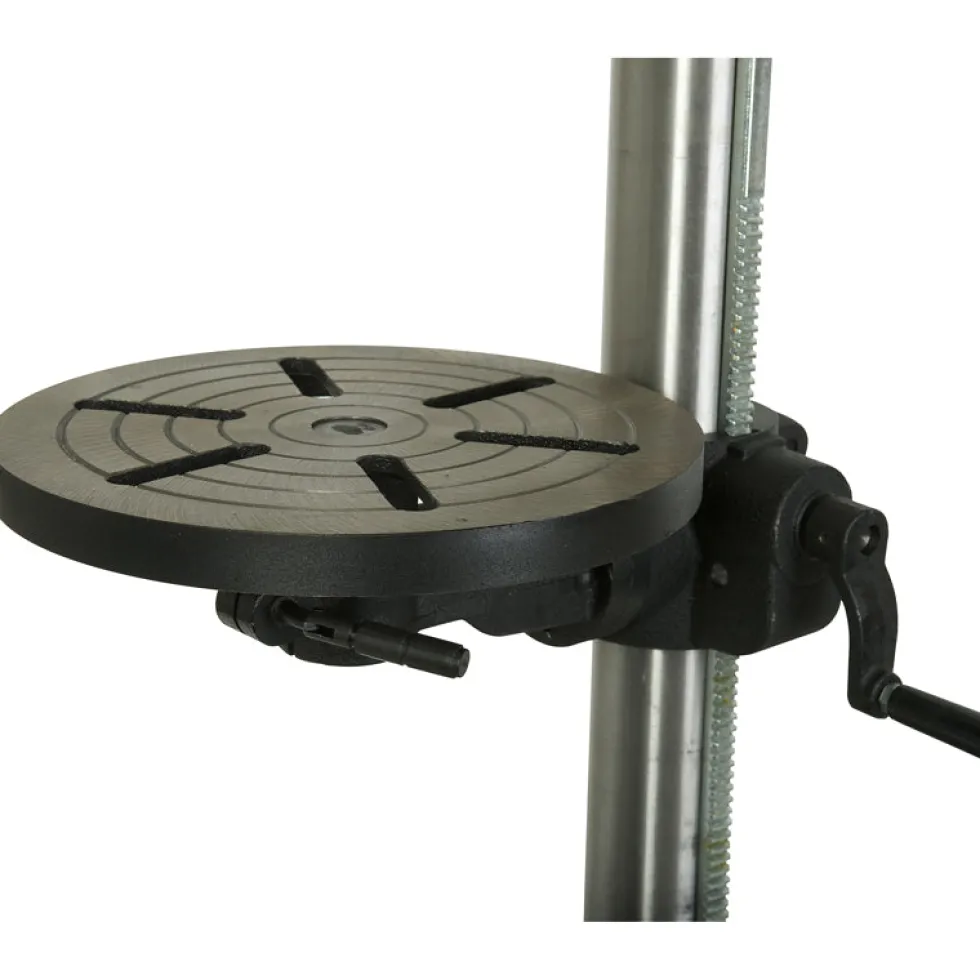

Rack and pinion gears permit quick and easy table height adjustments with the simple turn of a handle. The table incorporates a convenient slot design, which makes the mounting of jigs, vises and fixtures simple and fast. The 11-3/16″ round table tilts 45 degrees right or left and rotates a full 360 degrees around the column for added convenience and the ability to accommodate different material dimensions.

This drill press is built to stand up to years of constant use in the shop or on the job site.Rugged cast iron and solid steel construction from the base to the power head contribute to vibration-free operation and durability.It comes with Rikon’s Five Year Warranty.

Specifications

• Motor 1/2 horsepower
• Swing13″
• Chuck Size 5/8″
• Spindle Travel 3-1/8″
• Speeds 16
• Speed Range 2203600
• Quill Diameter 2-3/16″
• Table 11-13/16″ (round)
• Column Diameter 2-7/8″
• Height 42″
• Weight 121 lbs.

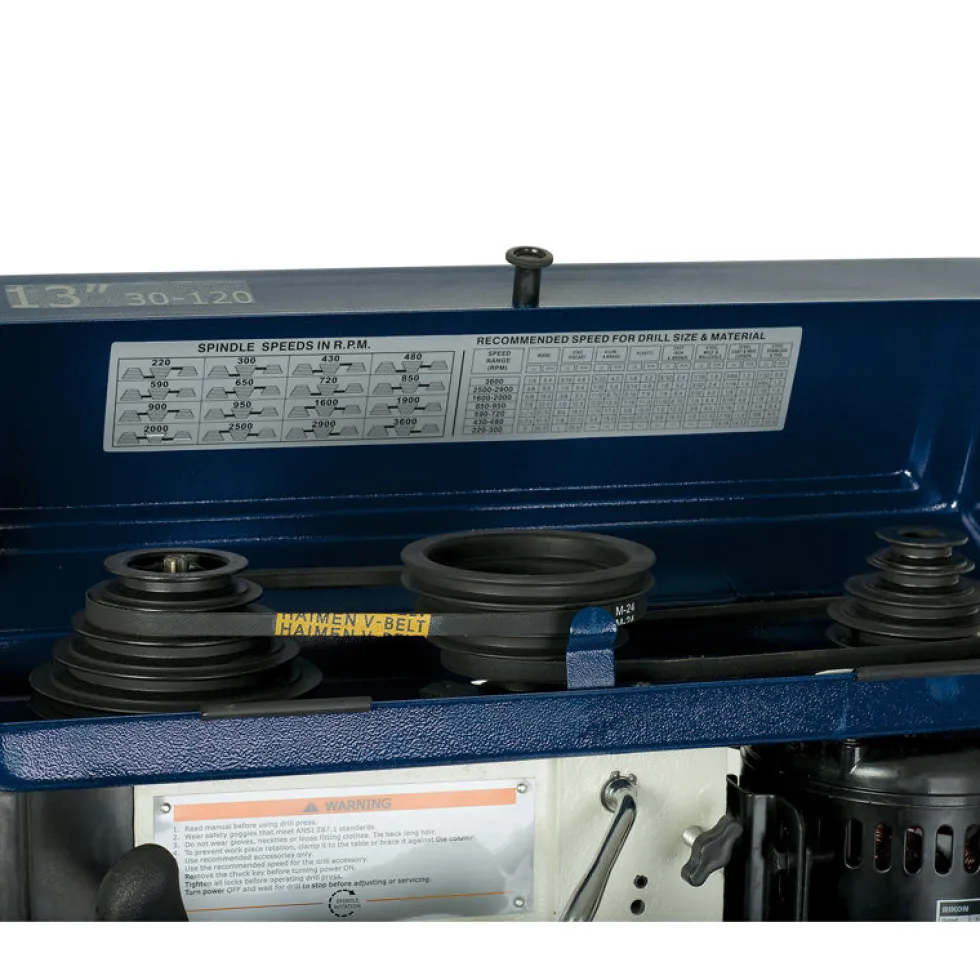

Constructed with solid cast-iron handles, rack & pinion table, locking depth stop with gauge, toggle switch, and a speed selection chart.

-->

Additional Information

Rikon 13in Bench Drill Press User Manual

Rikon 13in Bench Drill Press Product Sheet
