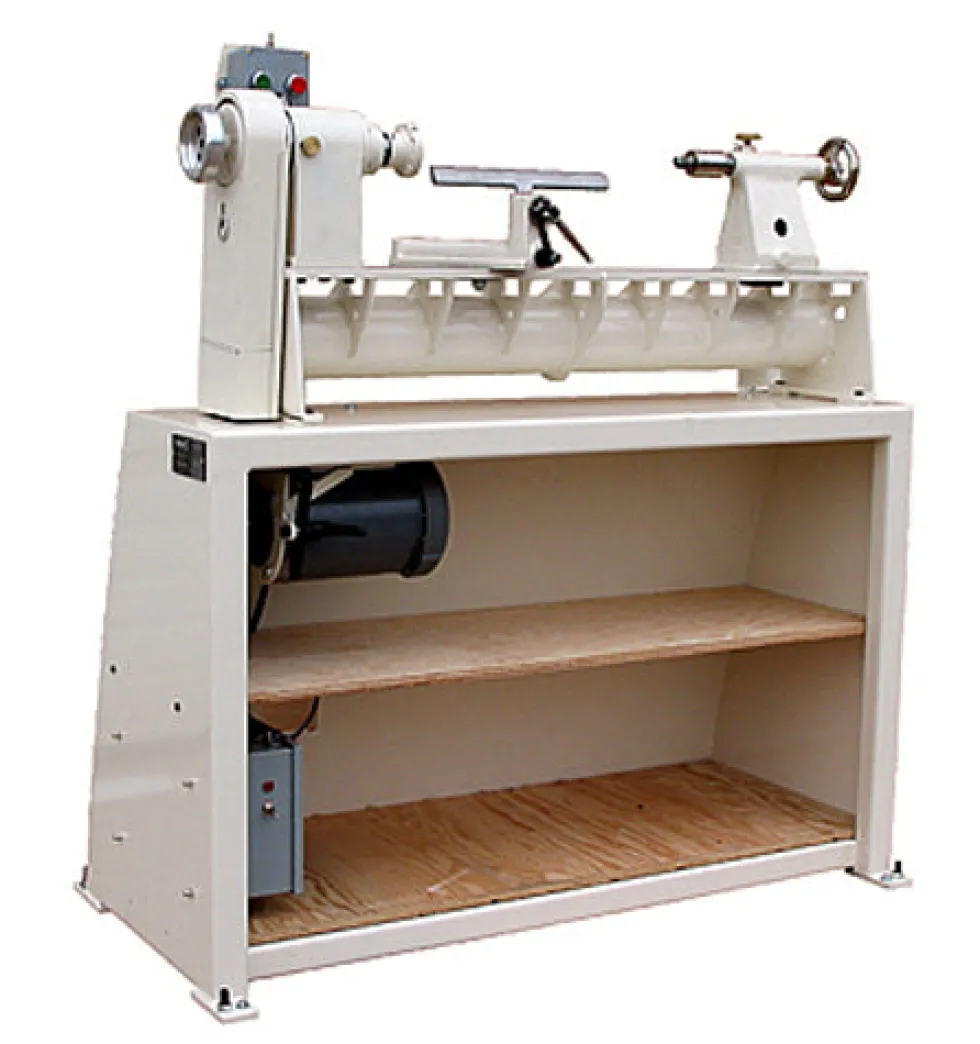

Oneway 1224 Lathe

Due to the variety of options available to customize your lathe, please call 1-800-241-6748 to place an order or get a quote with truck freight charges.

Model 1224 offers 24″ between centers, with 12-1/2″ swing over the ways or 9″ swing over the banjo (toolrest base). Overall length is 46″. The 1-5/8″ diameter headstock spindle is mounted in four sealed-for-life ball bearings, and the inboard spindle nose is threaded 1″-8 tpi to accept a very wide variety of faceplates, chucks and accessories. The outboard end is threaded 3/4″-16 tpi for vacuum accessories. Both headstock and tailstock accept #2 Morse taper accessories. A 24-position indexing head is standard. Like a scaled-down version of Oneway’s massive full-size lathes, Model 1224 is built on a heavy 4-1/2″ diameter steel tube for almost perfect torsional rigidity. The ways are offset forward for easy access, allowing waste to fall through cleanly.

Model 1224 comes with a 1HP motor, which works on either 110 or 220 V and features a fully electronic variable speed switch with soft start, constant torque, and dynamic braking to a soft stop. A 2-step drive pulley lets you choose the speed range best suited to the diameter & length of the project at hand: 0-1200 or 0-4500 rpm. Standard equipment includes a steel stand, safety drive center, live tail center, 9″ stainless steel toolrest & a 3″ faceplate. Weighs 300 lbs.

An optional 24″ bed extension (sold separately) bolts on in seconds, extending the length between centers to 48″.
