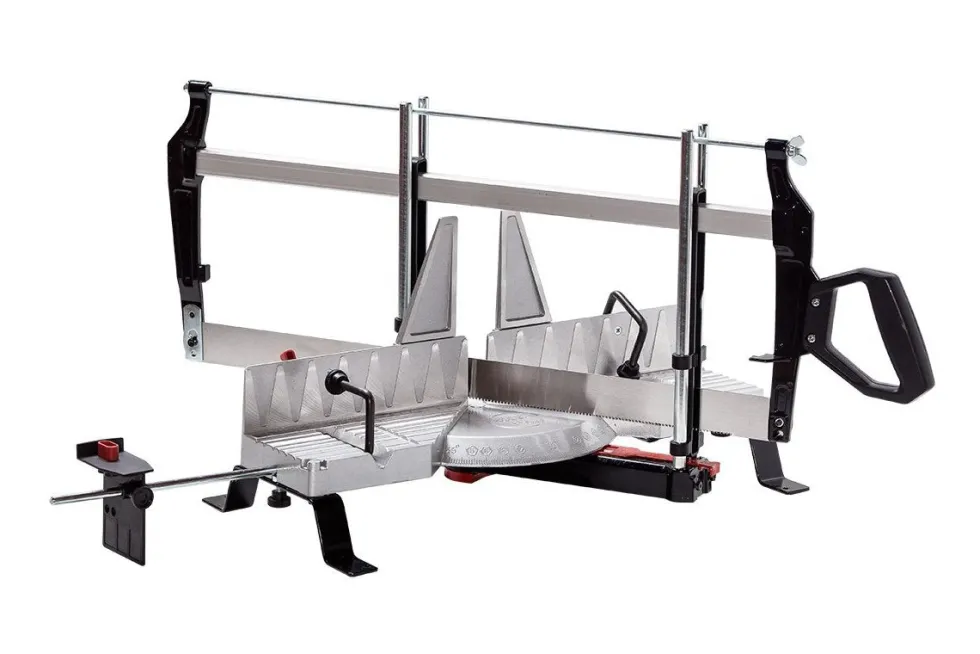

Nobex Champion 180 Miter Saw

Precise construction and elegantly simple design are the hallmarks of these fine Swedish joinery tools. Die-cast aluminum tables and light-weight, bowsaw-style cutting assembly allow quick, precise set-up, very large capacity & very smooth cutting.

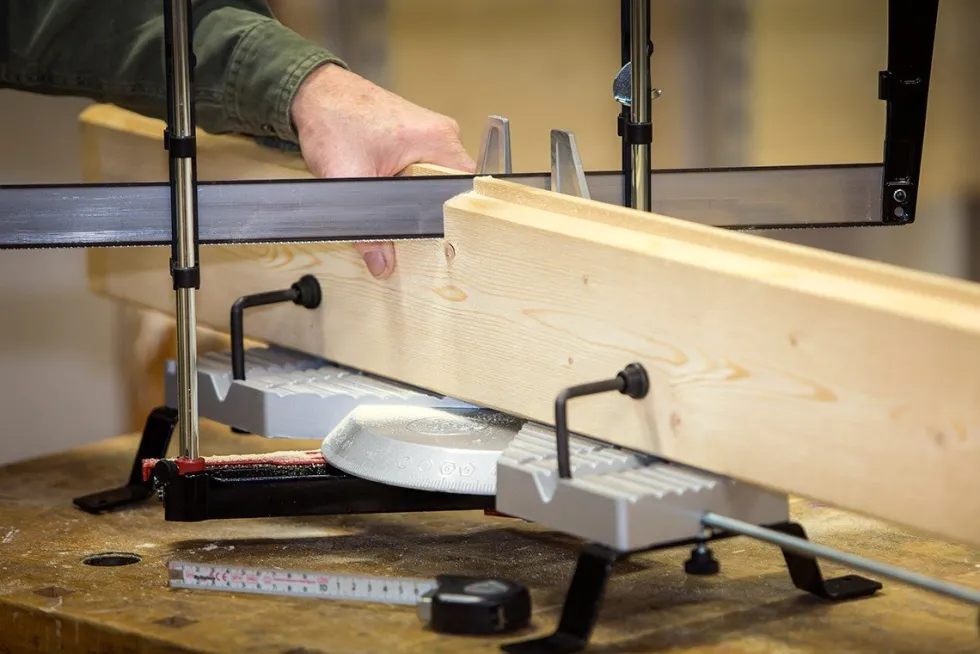

The Nobex Champion Miter Saw is a commercial-quality saw that handles up to 7″ maximum thickness, and 7″ width at 90° or 5″ width at 45°. The table is 20″ long x 4-1/2″ wide, and is grooved to support stock leaning against the fence for compound miters. The Champion comes with two stock clamps and an adjustable length stop. There are positive stops at 90°, 15°, 22-1/2°, 30°, 36° & 45°.

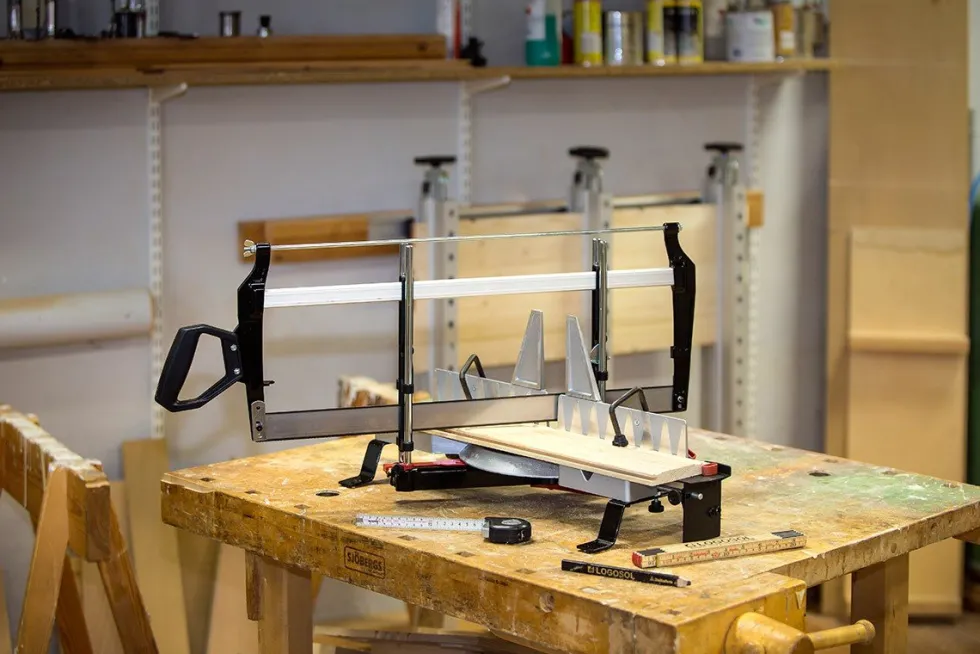

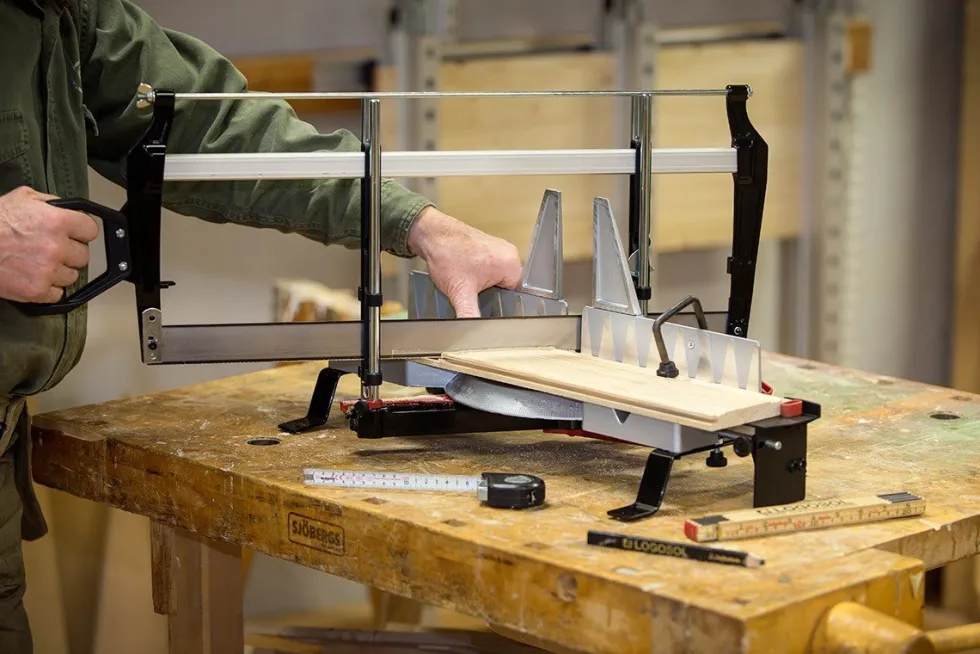

For best results, mount the Champion saw to a board and firmly clamp it to a table or workbench.

Manufactured in Sweden.

Includes

• CH-18 18tpi Saw Blade for general purpose cuts in wood
• Two material hold down clamps
• Length stop – maximum capacity 30″ (Can be installed on either side)

Specifications

• Table – 4-1/2″ wide x 20″ long
• Fence Height – 2-1/4″
• Maximum stock thickness – 7″
• Maximum stock width at 90° – 7″
• Maximum stock width at 45° – 5″
• Positive miter stops – 15°, 22-1/2°, 30°, 36° 45°, & 90°

Additional Information

Nobex Champion 180 Parts List

Nobex Saw Manual
