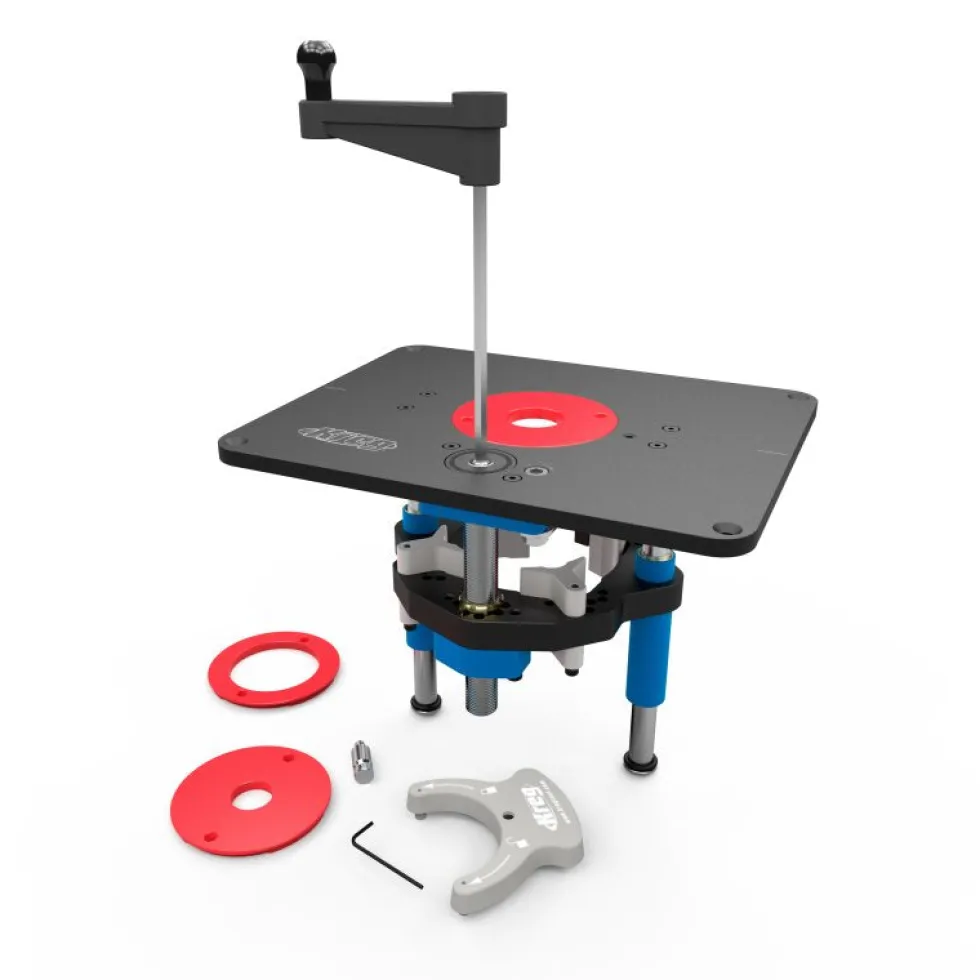

Kreg PRS5000 Precision Router Lift

The Precision Router Lift replaces the standard insert plate (3/8″ x 9-1/4″ x 11-3/4″) in most router tables with a heavy-duty anodized aluminum plate and carriage that fits 20+ popular router models without modification. Its tabletop-mounted crank allows the user to quickly raise and lower the router to replace bits, and its precision dial allows for micro-adjustments of routing depth down to thousandths of an inch. Once the depth of cut is set, the scale can be zeroed out at any point to allow for exact, repeatable cuts. One full revolution of the crank moves the router carriage exactly 1/16″, while hash marks denote .002″ increments.

Features

• 3/8″ x 9-1/4″ x 11-3/4″ hard-anodized aluminum insert plate
• Machined aluminum router carriage with built-in clamps can be adjusted to fit 20+ popular router models
• Carriage rides on steel columns and locks in place using included crank
• Fits all Kreg router tables and many other router tables that use a 3/8″ x 9-1/4″ x 11-3/4″ plate
• Micro-adjust dial with fractional markings at every 1/64″ & hash marks every .002″ in between. One full revolution equals

Includes:

• Router Lift
• Adjustment Crank
• Level-Loc Reducing Rings: 1″ (25mm), 1-3⁄16″ (30mm), and 2-5⁄8″ (67mm)
• Ring Wrench
• Stainless Steel Starting Pin
• Owner’s Manual

Additional Information

Kreg PRS5000 Precision Router Lift Owner’s Manual
