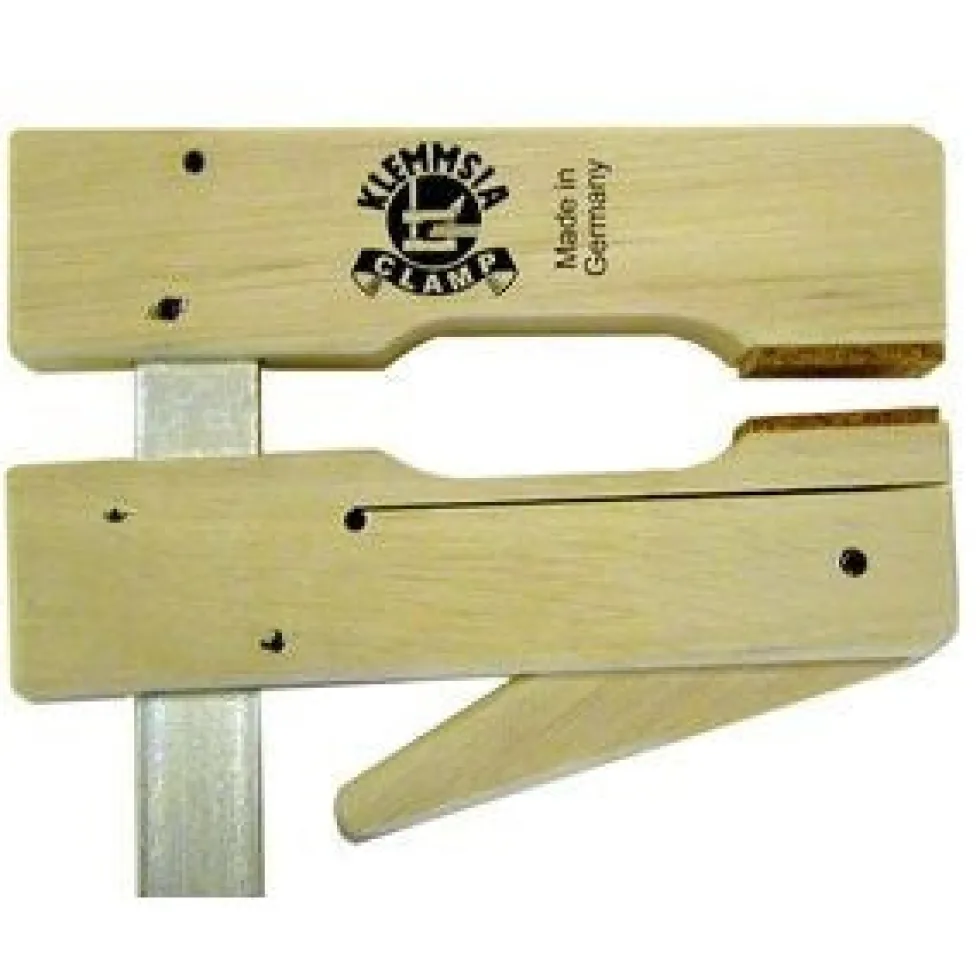

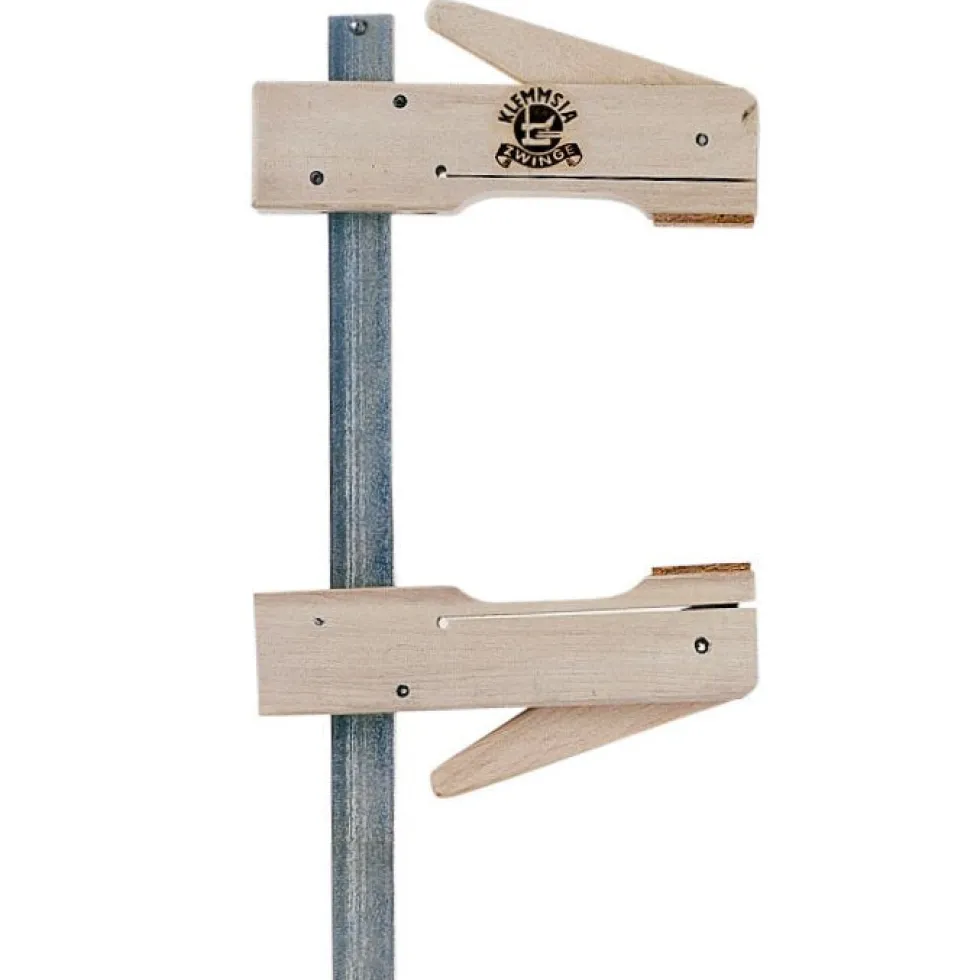

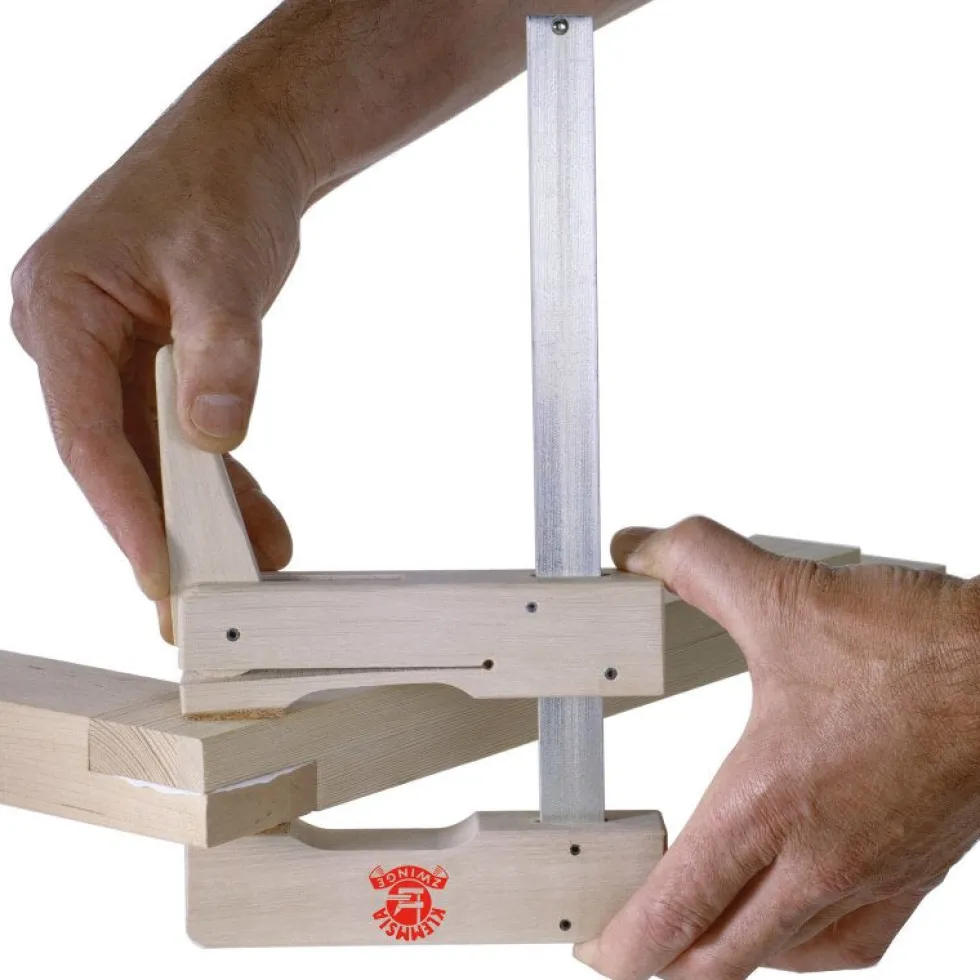

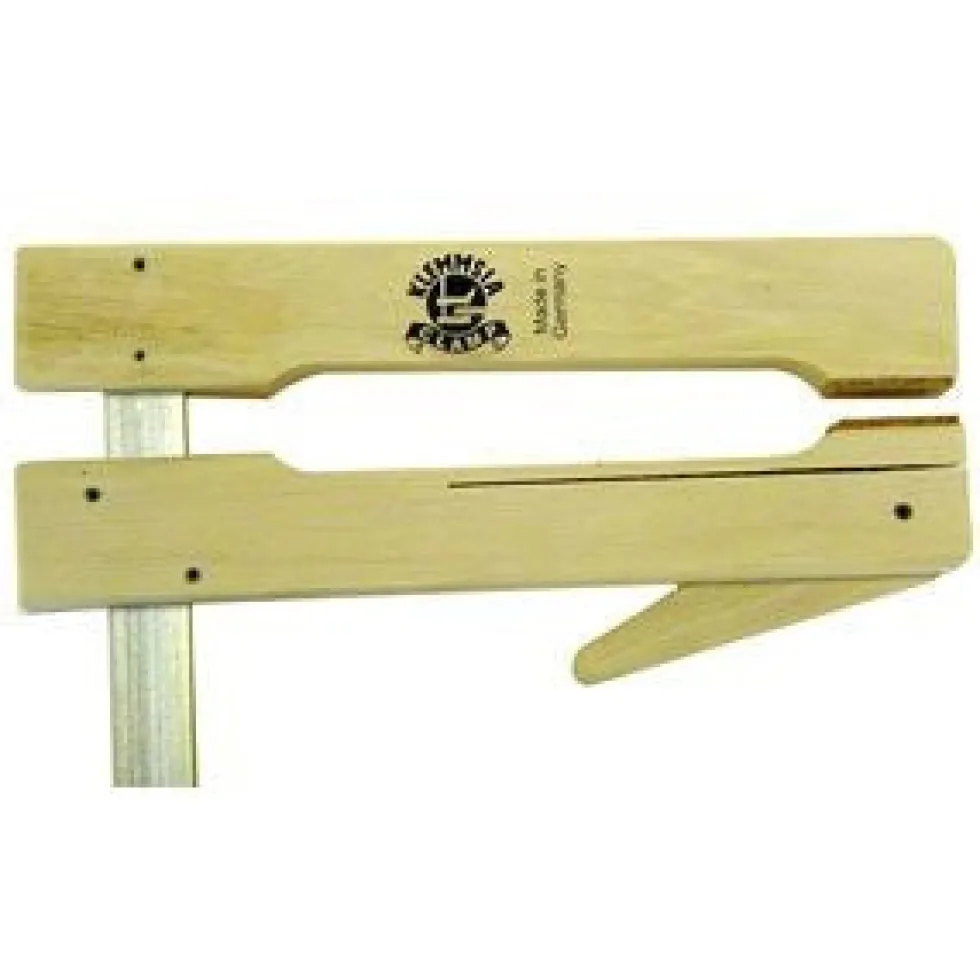

Klemmsia’s lightweight, fast-acting clamps apply pressure instantly. The steel bar is 3/16″ x 13/16″ (5mm x 20.5mm). The European white beech heads are 15/16″ x 1-13/32″ (24mm x 30.5mm) and have cork lined clamping surfaces. Clamps 31-1/2″ (800mm) and shorter have one fixed head and one cam clamping head. Longer clamps have two cam clamping heads.

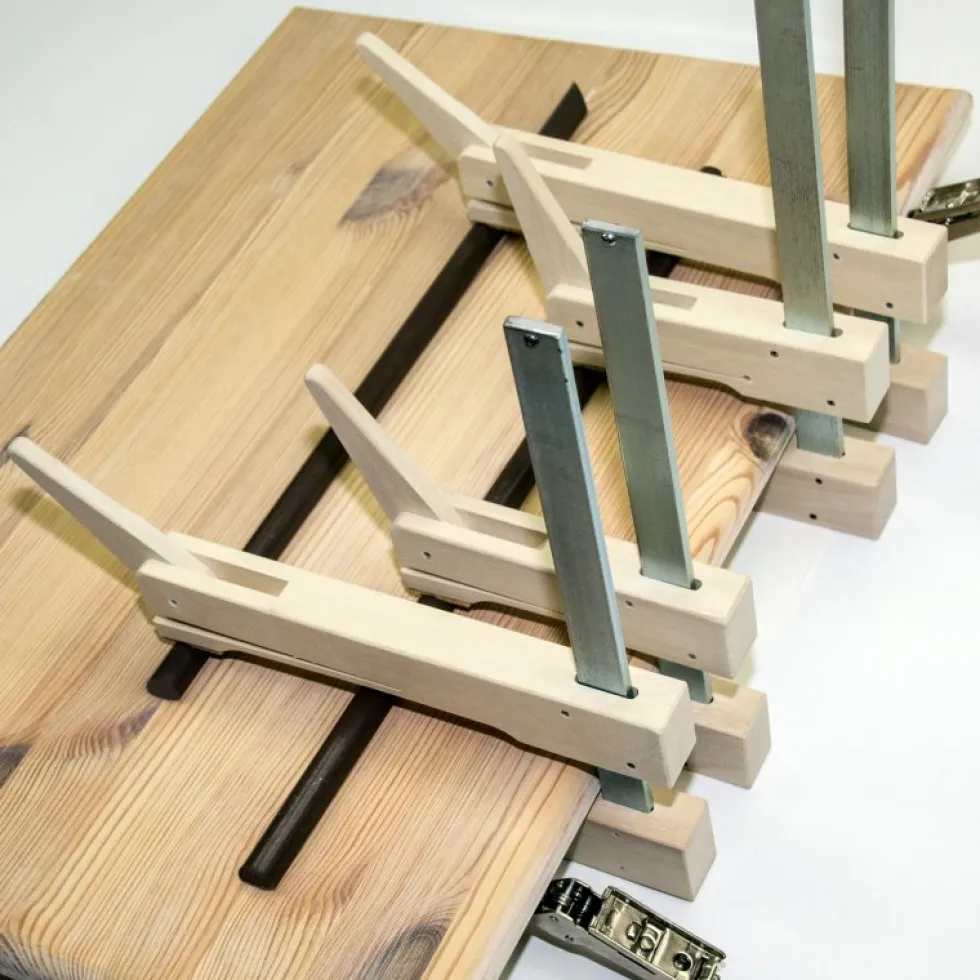

The optional edge clamp seats against the bar of a regular clamp for holding edging.Optional cork lined extension pad spreads pressure over wider areas. Use Coronet fittings with three Klemmsia bar clamps to hold mitered corners.
All Klemmsia clamps are made in Germany – as they have been for more than 100 years.
To learn more, read Jeffrey Fleisher’s Klemmsia Cam-Action Clamp Tool Review .

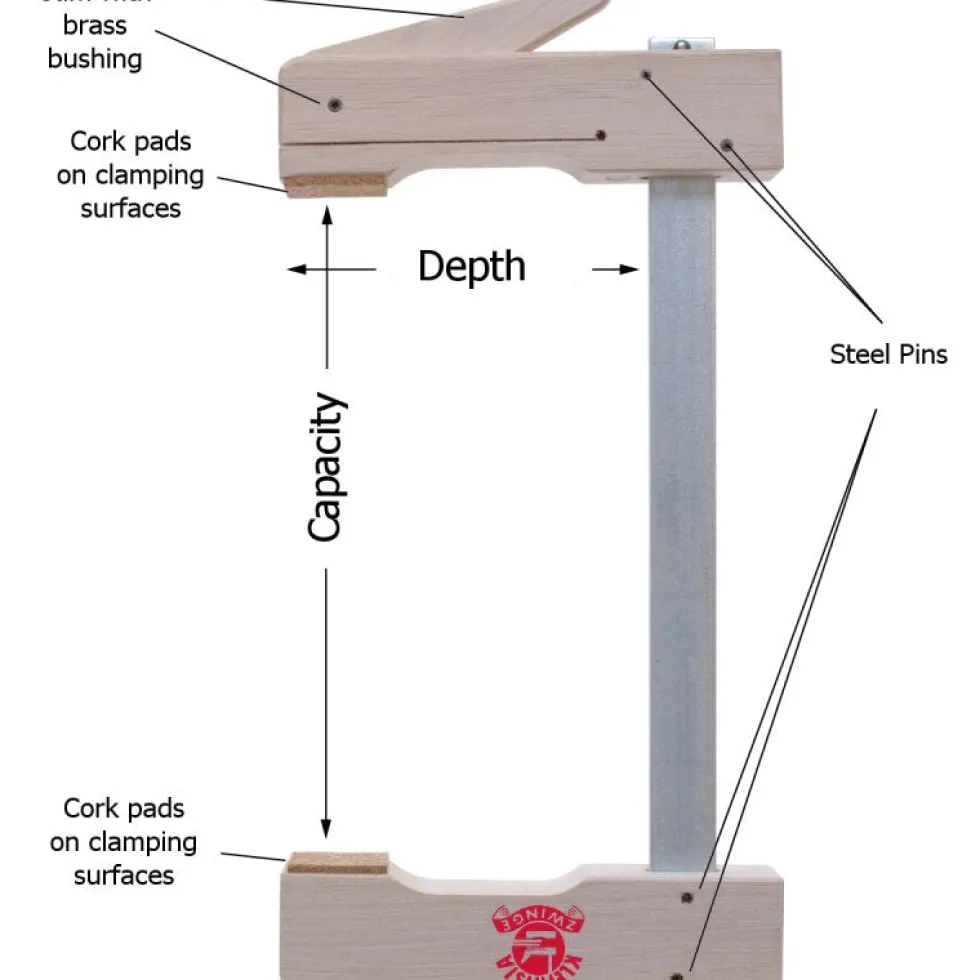

| Depth | Capacity | HW # | Klemmsia # |
|---|---|---|---|
| 4-1/4″ 110mm |
7-3/4″ 200mm |
168201 | 0020 | 4-1/4″ 110mm110mm – 4-1/4″ |
9-3/4″ 250mm250mm – 9-3/4″ |
168213 | 0025 | 4-1/4″ 110mm110mm – 4-1/4″ |
11-3/4″ 300mm300mm – 11-3/4″ |
168214 | 0030 |
| 4-1/4″ 110mm |
15-3/4″ 400mm |
168202 | 0040 | 4-1/4″ 110mm110mm – 4-1/4″ |
19-1/2″ 500mm500mm – 19-1/2″ |
168215 | 0050 |
| 4-1/4″ 110mm |
23-1/2″ 600mm |
168203 | 0060 | 4-1/4″ 110mm110mm – 4-1/4″ |
27-1/2″ 700mm700mm – 27-1/2″ |
168216 | 0070 |
| 4-1/4″ 110mm |
31-1/2″ 800mm |
168211 | 0080 |
| 4-1/4″ 110mm |
39-1/4″ 1000mm |
168212 | 0100 | 4-1/4″ 110mmHIDE IF RE-ACTIVATED(110mm – 4-1/4″) |
47-1/4″ 1200mm HIDE IF RE-ACTIVATED(1200mm – 47-1/4″) |
168217 | 0120 | 5-3/4″ 150mm150mm – 5-3/4″ |
7-3/4″ 200mm200mm – 7-3/4″ |
168218 | 0150 |
| 7-3/4″ 195mm |
7-3/4″ 200mm |
168204 | 0200 |
