Iturra High Tension Bandsaw Spring

Iturra High Tension Bandsaw Spring

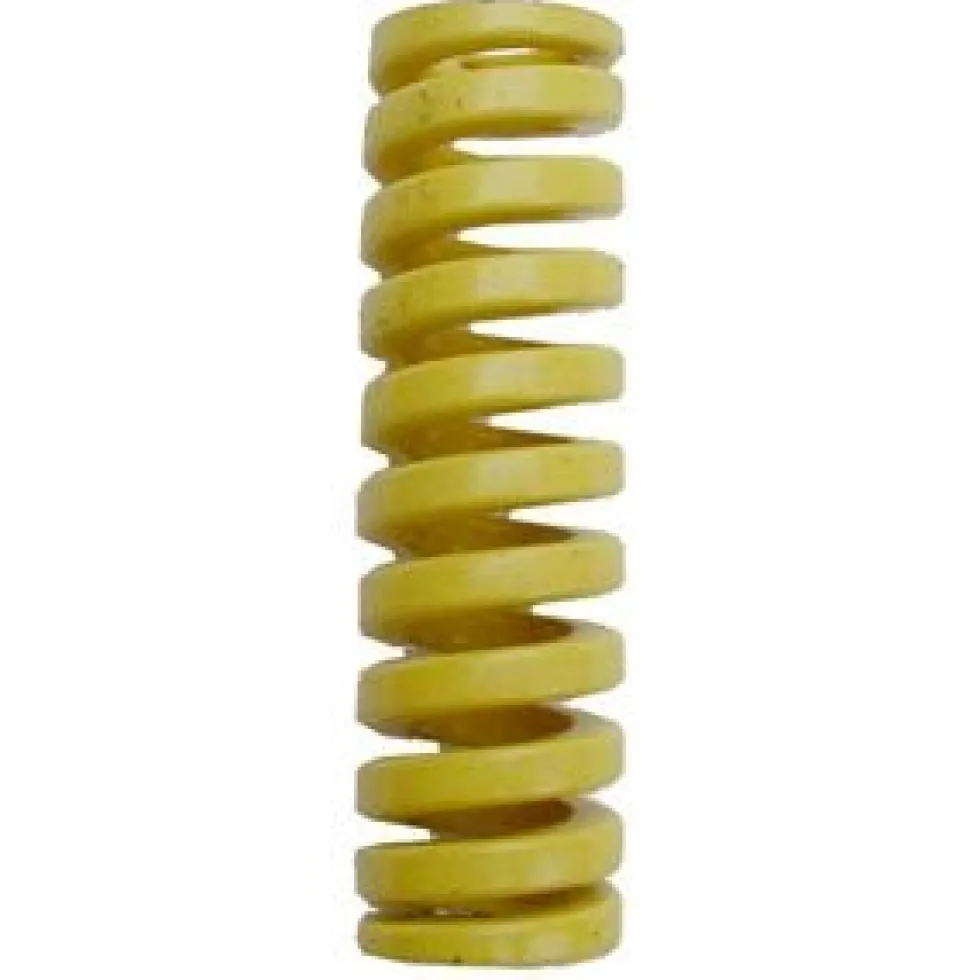

Built into the upper wheel assembly on your bandsaw is a compression spring whose job is to cushion against sudden shock or increased tension if & when the blade bows within a cut. On older saws, this spring may be so fatigued from a lifetime of compression that it limits maximum blade tension and provides inadequate shock absorption as well. This High Tension Spring for 14″ cast iron bandsaws is made from high strength chrome-vanadium alloy flat stock, coiled and milled flat on the ends for outstanding performance and durability.

First, get a tension crank for your saw so you can realistically expect to release blade tension every day. Then, replace your old spring with our high tension spring, and you’ll never need to think about it again.

Always measure your existing spring before ordering.
Compare dimensions to best ensure this spring fits your bandsaw.

Size

Iturra offers two sizes of bandsaw spring to fit many 14″ cast iron saws by Delta, Jet and some clones.

• The 2-1/2″ springfits most Delta 14″ cast iron bandsaws and some clones. It is 2-1/2″ long, 3/4″ OD and 13/32″ ID.
• The 3″ springfits most Jet 14″ cast iron bandsaws and similar clones of the Delta 14″ saw. It is 3″ long, 3/4″ OD and 13/32″ ID.

Iturra 3″ Bandsaw Spring for Jet Bandsaws

Built into the upper wheel assembly on your bandsaw is a compression spring whose job is to cushion against sudden shock or increased tension if & when the blade bows within a cut. On older saws, this spring may be so fatigued from a lifetime of compression that it limits maximum blade tension and provides inadequate shock absorption as well. This High Tension Spring for 14″ bandsaws is made fom high strength chrome-vanadium alloy flat stock, coiled and milled flat on the ends for outstanding performance and durability.First get a Quick-Crank for your saw so you can realistically expect to release blade tension every day.Then replace your old spring with our high tension spring, and you’ll never need to think about it again.This spring also fits many (but not all) similar Taiwan-made 14″ saws.

Notice: Always measure your existing spring before ordering.Compare dimensions to best ensure this spring will fit on your bandsaw.

Spring length is 3″. Outside diameter is 3/4″ and inside diameter is 13/32″.

The spring length is 2-1/2″.The outside diameter is 3/4″ and the inside diameter is 13/32″.

-->
