Bearing-guided, carbide-tipped bit for creating a rounded edge on a workpiece. Festool roundovers can be used with or without the bearing guide.
| Cutting Diameter |
Cutting Length |
Radius | Overall Length |
Shank | HW # | Festool # |
|---|---|---|---|---|---|---|
| 20mm (~3/4″) |
2.2mm (~3/32″) |
2mm (~3/32″) |
47mm (~1-7/8″) |
8mm | 721955 | 499798 (S8 HW R2 D20-KL OFK) |
22mm (~7/8″) |
3.2mm (~1/8″) |
3mm (~1/8″) |
48mm (~1-7/8″) |
8mm | 726050 | 499797 (S8 HW R3 D22-KL OFK) |
♦ | ♦ | ♦ | <18 Warning! Max RPM – 18,000 |

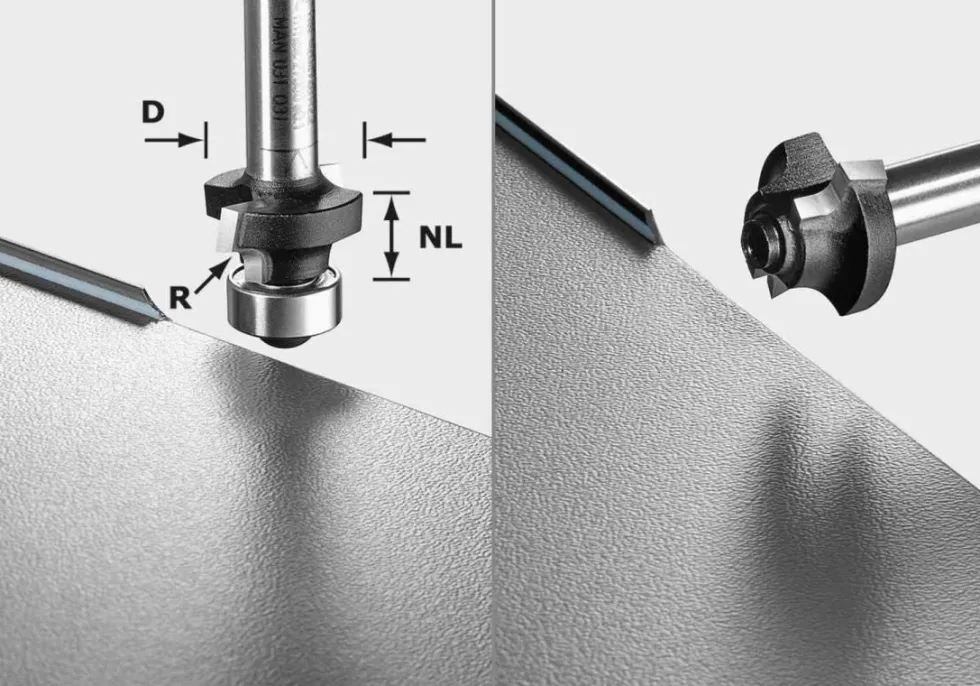

Specifications
- D (large diameter) – 20mm(~13/16")
- NL (cutting length) – 2.2mm(.086″ ~11/128")
- GL (overall length)) – 47mm(~1-7/8")
- R (round over radius) – 2mm(0.78″ ~5/64")
-->
