Festool 14mm DOMINO Connector System
$32.89

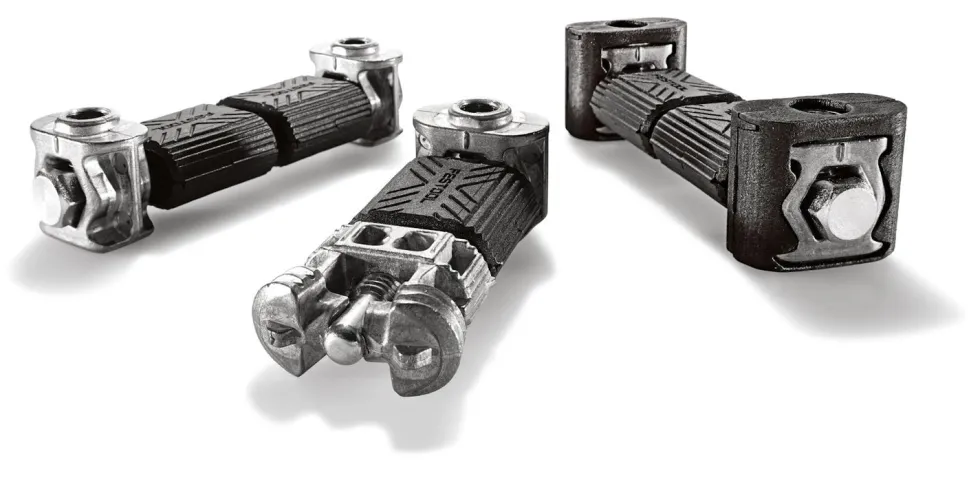

Festool’s DOMINO Connector System allows you to make quick, easy, reversible joints with your DOMINO DF 700 XL Joiner. These aren’t ordinary knockdown (KD) furniture joints. DOMINO connector joints are easier to make AND more robust than standard KD joints. You can join table tops, panels and other joints any stock at least 1-3/16″ (30mm) thick. Then, you can disassemble and re-assemble them later.
Each joint is milled 100% with the DOMINO DF 700 XL using a 14mm cutter(not included). If you’re using the indexing pins on the DF 700, you don’t even need a ruler.
The Connector System consists of nine components. Each is described below.
Ifyou’re just starting out with the Festool Domino Connector System, you may want to get the Festool DOMINO Connector Set Systainer SV-SYS. It has a complete collection of Connector fittings organized in a Systainer – everything you need to start except the Domino XL machine and the 14mm cutter.
| Component | Description | Festool # |
|---|---|---|
| Expansion Anchor SV-SA Pack of 32 |
The Expansion Anchor slides into a inline mortise for a Corner Connector and locks in place when you tighten the anchor bolt. It expands into a mortise and the teeth grip the wood. Once the Expansion Anchor has been installed, it can not be removed. |
201349 |
| Anchor Bolt SV-AB Pack of 32 |
The Anchor Bolt locks the Expansion Anchor into an inline mortise, then serves as the connection to a Cross Anchor in when making a Corner Connector |
201350 |
| Cross Anchor SV-QA Pack of 32 |
The Cross Anchor slides into a cross mortise for either a Straight Connector or a Corner Connector. Either an Anchor Bolt or a Double Bolt provide the connection to the other side of the joint. The Cross Anchor is completely removable.When using a Cross Anchor in MDF or particle board, we recommend adding an Extension Shell for strength and stability. |
201351 |
| Double Bolt SV-DB Pack of 16 |
The Double bolt is the heart of the Straight Connector. It makes the connection between two cross anchors – one in each workpiece.It can be used with either one or two alignment shells – depending on the application. Each Double Bolt includes four half shells to make two complete alignment shells. |
201352 |
| Extension Shell SV-V Pack of 32 |
Extension Shells widen the Cross Anchor to provide stability and improve pressure distribution. They are recommended for use in particle board and MDF. Includes 64 half-shells to make 32 whole shells. |
201498 |
| Corner EV Set Pack of 32 |
The Corner EV Set is a complete connector for joining two workpieces at a 90° angle. Each Corner EV Set includes one Anchor Bolt, one Expansion Anchor and one Cross Anchor. |
201827 |
| Surface FV Set Pack of 16 |
The Surface FV Set is a complete connector for joining two inline workpieces – like a panel. Each Surface FV Set includes one Double Bolt, two Cross Anchors and two Extension Shells. |
201828 |
| 14mm x 75m Connector Tenon Pack of 104 |
The other components of the DOMINO Connector system hold the joints together. Each joint should have at least one Connector Tenon to alignment and strength. The Connector Tenon is like other 14mm DOMINO Tenons, but in a length specific to Connector Joints. |
201499 |
