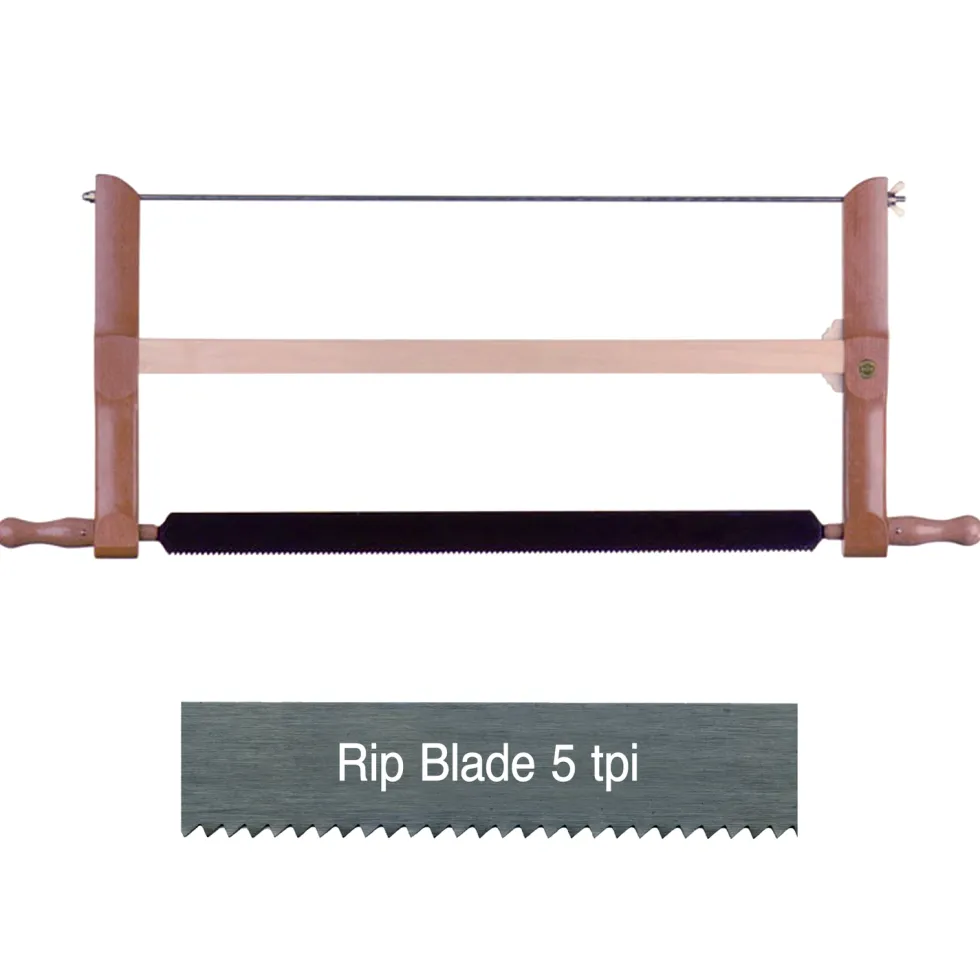

ECE 600mm Frame Saw

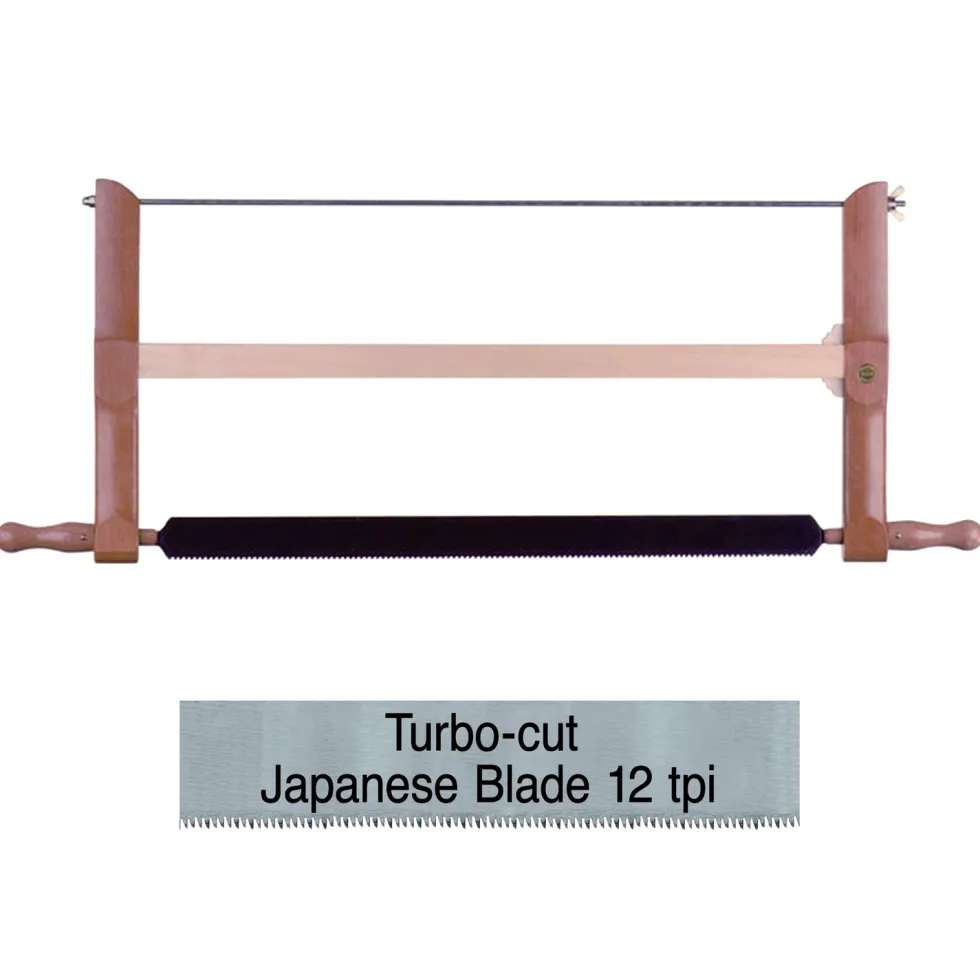

This frame saw has European hardwood vertical arms and handles with a pine horizontal stretcher to save weight. Tension is applied via a wing nut at one end of a tensioning rod that links the vertical arms. The blade can be rotated through 360° for better cutting angles or to store the blade with the teeth in. Comes with a 5 tpi rip blade or 12 tpi Turbo-Cut Japanese Blade.

This saw is the same as our ECE 700 mm Frame Saw in all aspects except length and weight. This saw is a little lighter and a little shorter making it easier to manuever. (It also has a five optional blades, while the 700 mm saw only offers three.)

We offer a range of optional bladesto fit this saw.

Made in Germany by E. C. Emmerich.

Specfications

• Overall blade length – 600 mm (23-5/8″)
• Hole-to-hole Blade length – 577 mm (22-3/4″)
• Blade width (5 tpi rip) – 40 mm (1-9/16″)
• Blade thickness – 0.75 m (.030″)
• Kerf – 1.5 mm (.060″)
• Maximum cut depth – 150 mm (6″)
  (With blade in straight position)
• Stretcher to blade centerline – 130 mm (5-1/8″)
• Outer dimensions – 345 x 895 mm (13-1/2″ x 35-1/4″)
• Weight – 1.04 kg (2.3 lb)

Features

• Beech cheeks and handles
• Pine stretcher
• Zinc plated solid tension rod with wing nut
• Re-sharpenable blade
