Clifton 770 Bullnose Plane

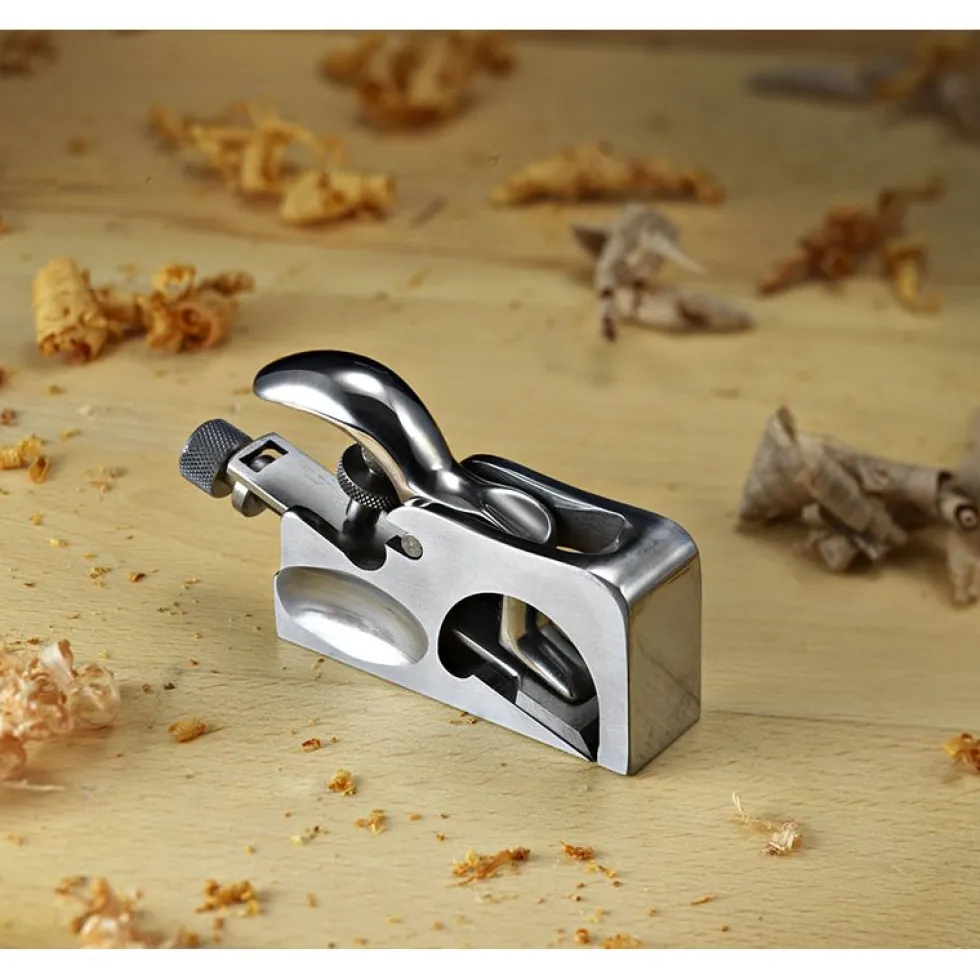

Clifton 770 Bull Nose Plane

The Clifton 770 Bull Nose plane is made to the exacting specifications as all the other Clifton planes, this will certainly be a great purchase for those who want a quality bullnose plane. The 770 fulfills the need for a straight-forward bull nose plane enabling the user to plane close to an abutting section of wood and avoiding tear-out. It is a light handy plane often used for cutting rebate stop shoulders. The body is machined from quality grey iron castings and is precision ground on the sole and sides. The lever arm is also made of grey iron. The cutting iron fits smoothly onto the machined pad in the body and can be finely adjusted by means of the screw. The finish is bright ground and all edges have been rounded over to fit comfortably in the hand.

Specifications

• Cutter width- 1-1/8″
• Cutter steel – oil hardened tool steel, Rockwell C Hardness 59-61
• Bevel – Primary 25&deg, secondary 30°
• Plane length – 4″
• Weight – .65kg (1.7lbs)

Made in Sheffield, England
