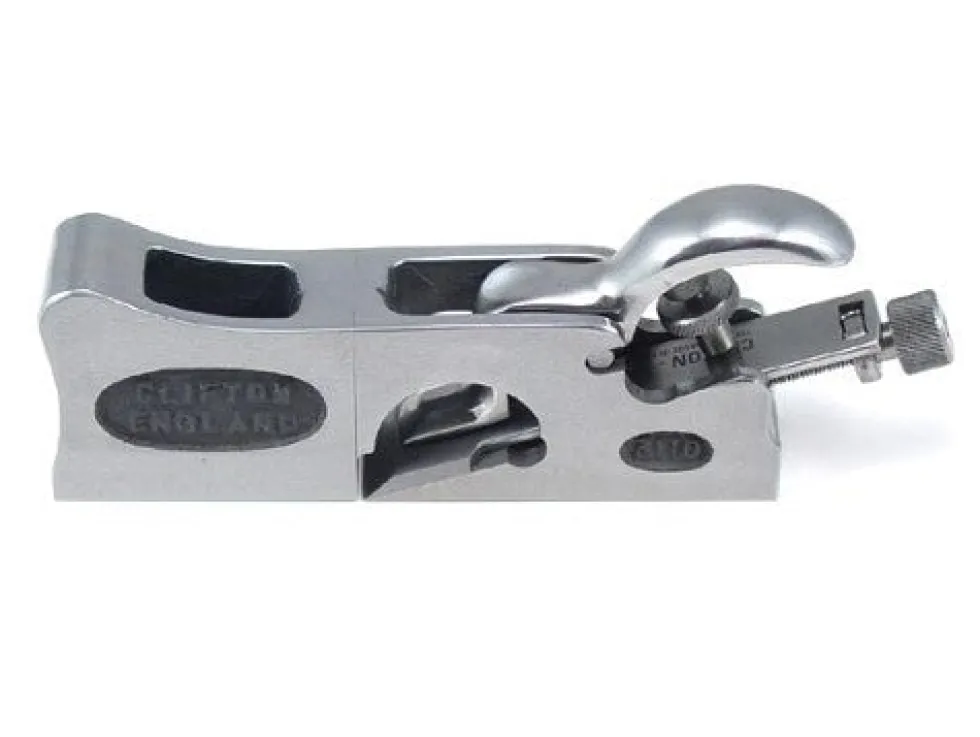

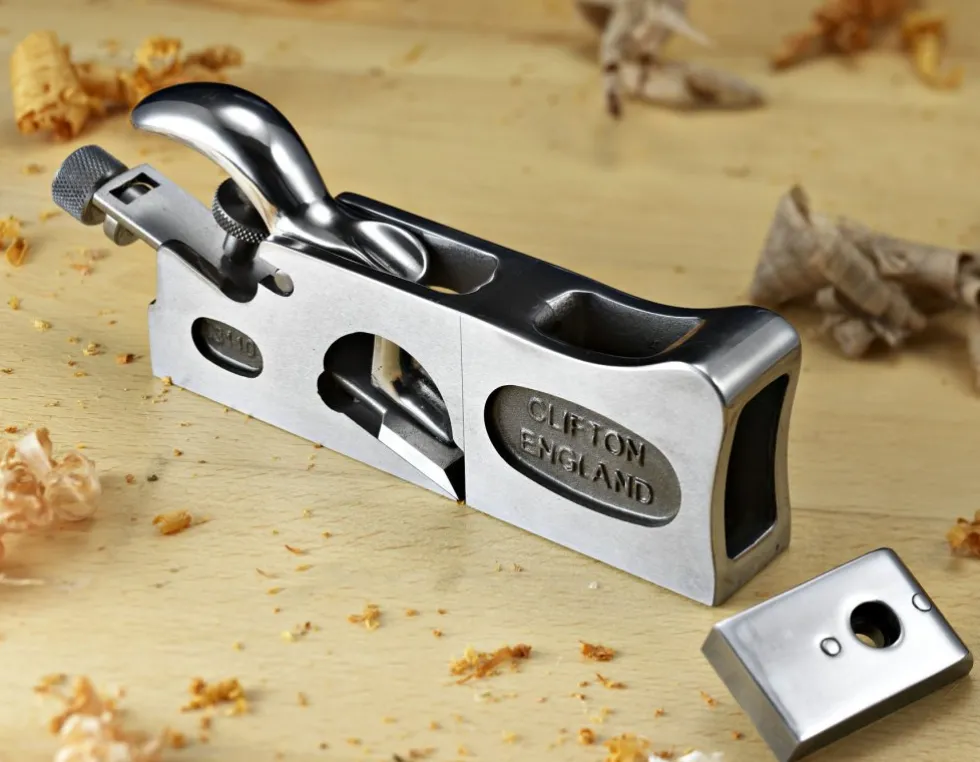

Clifton 3-in-1 Shoulder Rabbet Plane Model 3110

Clifton 3-in-1 Shoulder Rabbet Plane Model 3110

The Clifton 3110 Plane is an extremely versatile tool combining the features of shoulder rebate, chisel plane and adjustable mouth bull-nose plane. As a shoulder plane, the front extension piece is fitted as a chisel plane all nose pieces are removed; and as a bull-nose plane, the thinner nose piece is fitted in conjunction with one or both of the precision machined steel shimsto make the mouth size bigger (1/32″ and 1/64″) – or for very fine work, without either shim.

The 3-in-1 plane is designed to perform the functions of three:it can be used as a conventional rabbet plane (on rabbets up to 1-1/8″ wide), as a bullnose plane for working close into flush corners, or as a chisel plane for working right up to an adjacent surface.

The body is machined from a quality grey iron casting and precision ground on the sole and sides. The lever arm is also of grey iron. The cutting iron fits smoothly onto the machined pads in the body and can be adjusted by means of the screw. Bright Ground finish.

Specifications

• Cutter width- 1-1/8″
• Cutter steel – oil hardened tool steel, Rockwell C Hardness 59-61
• Bevel – Primary 25&deg, secondary 30°
• Plane length – 6″
• Weight – .9kg (2 lbs)

Made in Sheffield, England

Clifton Tooling continues to create some of the finest steel rabbeting planes available. These finely crafted tools feature carefully machined and polished castings with very narrow throat openings for absolutely minimal tearout.Though these planes are likely to become even more valuable as collectors’ items, their functional beauty will earn them a place in many a well-equipped hand tool shop.

This popular plane is designed to perform the functions of three:it can be used as a conventional rabbet plane (on rabbets up to 1-1/8″ wide), as a bullnose plane for working close into flush corners, or as a chisel plane for working right up to an adjacent surface.

-->
