9″ Deluxe Drill Press Clamp

9″ Deluxe Drill Press Clamp

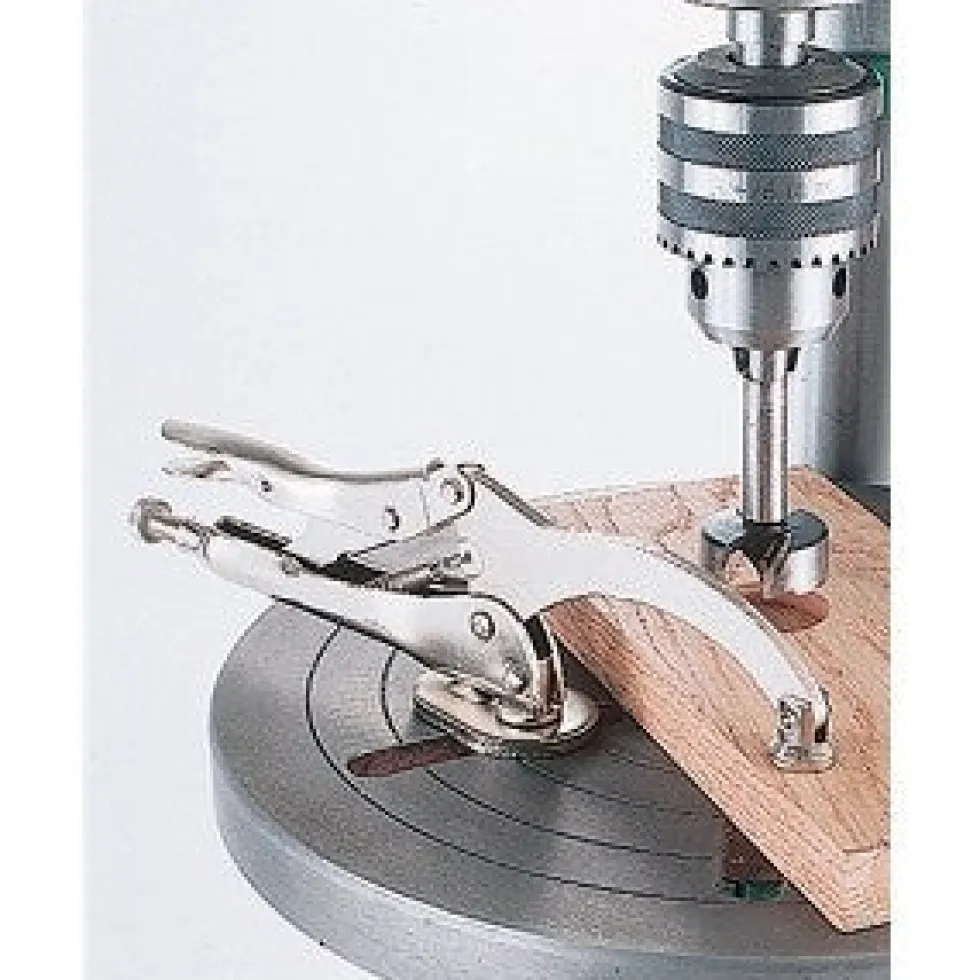

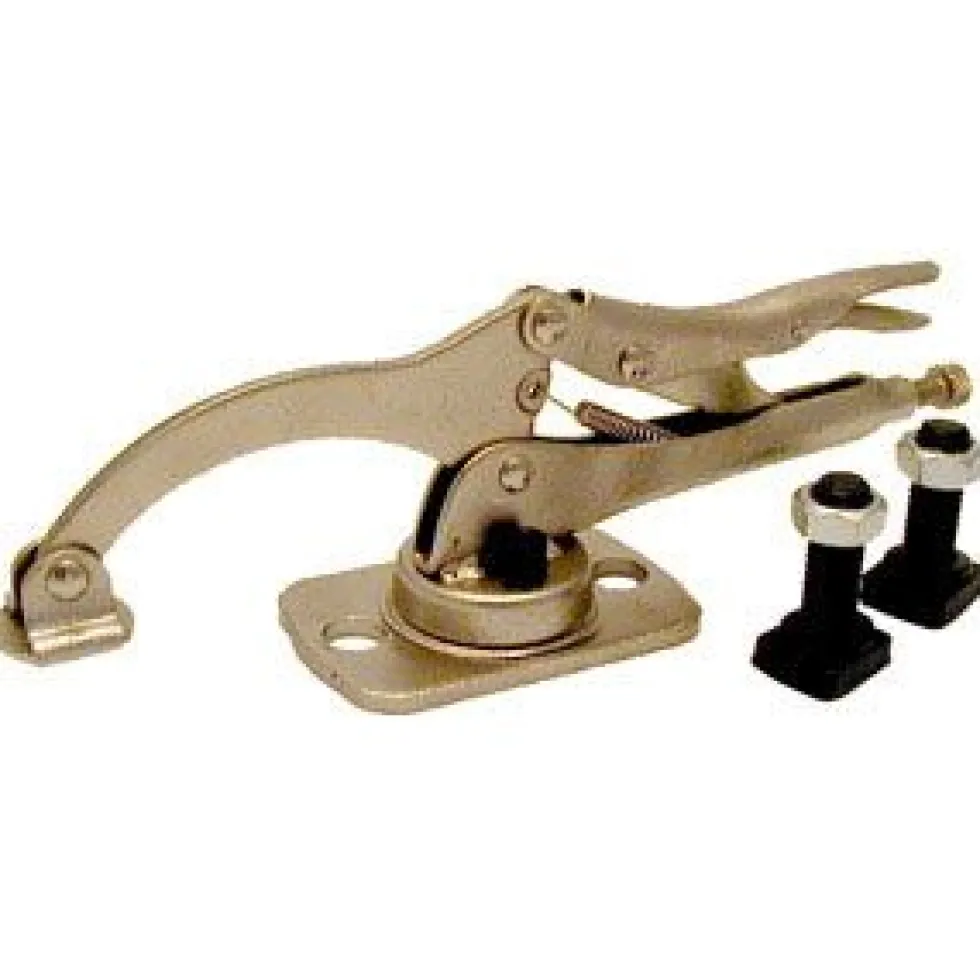

This adjustable 360 degree swivel-base clamp mounts on your drill press or shop-madejig.

1/2″ T-bolts secure the clamp to any surface up to 1″ thick.The heads of the T-nuts measure 1″ long x 7/8″ wide and are 11/32″ thick. OAL of bolts is 1-7/8″.

Base plate is 3-11/16″ long x 2-9/32″ wide.Clamp swivel footpad measures 1-1/8″ long x 1-3/32″ wide.

Distance from center line of clamp footpad to edge of base plate is 2-1/4″, which gives a reach of approximately 2″. Clamps stock thicknesses up to 2-1/4″.

2 Allen head screws on swivel base can be tightened to lock out swivel action.
